Husqvarna

390 XP® W

$1,449.99

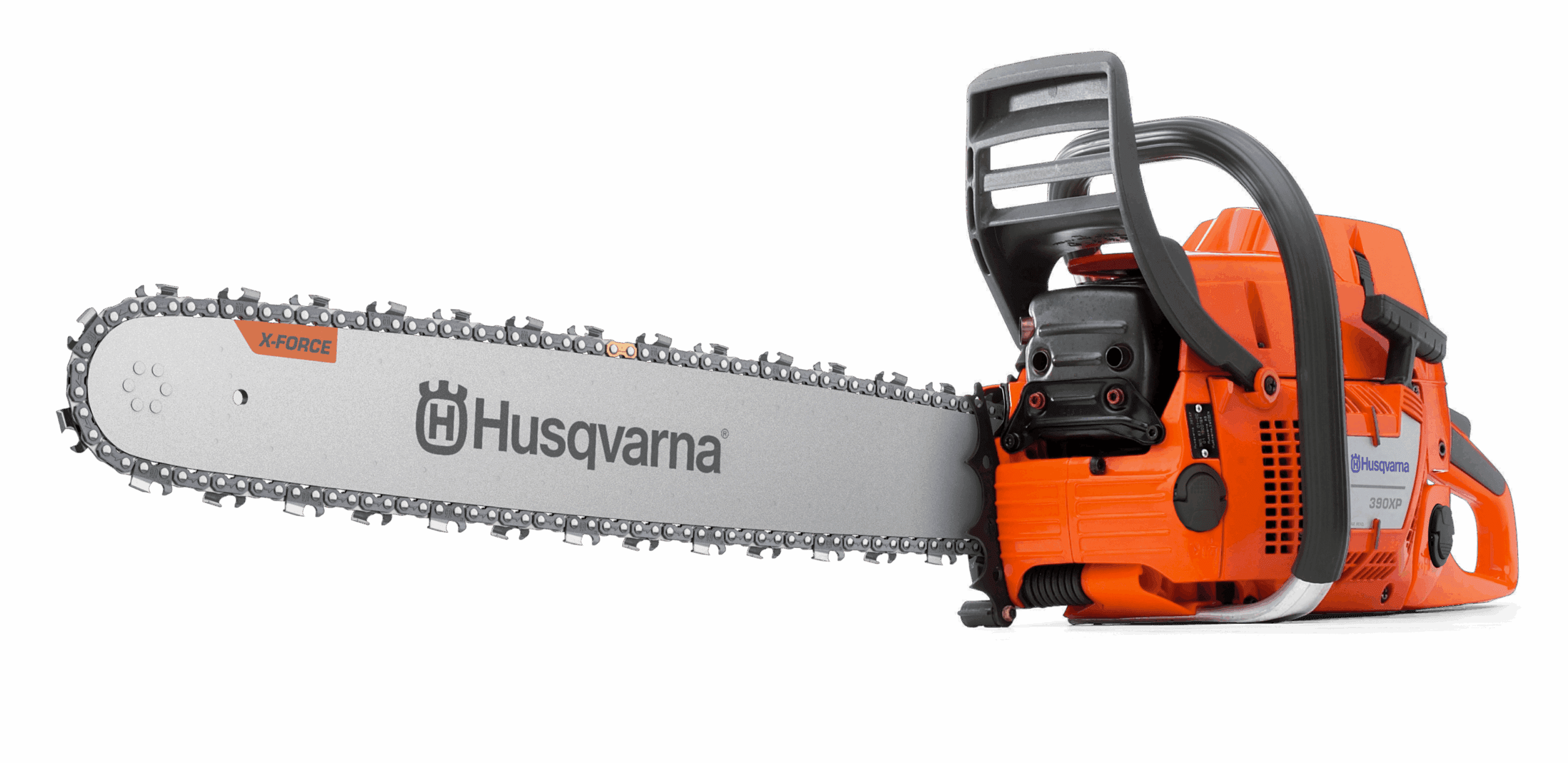

390 XP® W

Discover the high end of logging and forestry chainsaws. The Husqvarna 390 XP® features professional performance and excellent vibration dampening, making work easier and more efficient than ever before. The LowVib® system and smart ergonomics make this large, powerful saw easy to handle – even with longer guide bars. Additionally, Smart Start® technology guarantees faster start-ups, while the rubber-mounted carburetor boosts durability. Prepare to get the job done like never before. Equipped with full wrap handle bar to provide the operator with more flexibility to cut in various positions.
Requesting Brochure for...

2584390 XP® W

Address
SKU: 965 06 07‑51 Categories: , , , Tags: , , , , Brand:

    Description

    Engine
    36″ RSN 3/8″ 1,6 mm H83
    SKU: 965 06 07‑51

    Chain speed at max power

    70.21 fts

    Cylinder displacement

    88 cm³

    Output shaft power

    1

    6.5 hp

    Torque, max.

    4.7 Nm

    Torque, max. at rpm

    6,600 rpm

    Clutch engagement speed (±120)

    3,600 rpm

    Electrode gap

    0.02 in

    Idling speed

    2,700 rpm

    Ignition module air gap

    0.01 in

    Maximum power speed

    9,600 rpm

    Oil pump capacity, max

    24 ml/min

    Oil pump capacity, min

    6 ml/min

    Oil pump type

    Automatic

    Spark Plug

    Champion RCJ7Y, NGK BPMR7A
    Equipment

    Recommended bar length, min

    18 in

    Pitch

    3/8″

    Recommended bar length, max

    28 in

    Chain type

    H83

    Bar length

    90 cm

    Bar length (inch)

    36 in

    Sprocket type

    Rim 7

    Gauge

    .063″
    Dimensions

    Weight (excl. cutting equipment)

    16.1 lbs
    Sound and noise

    Sound pressure level at operators ear

    107 dB(A)

    Sound power level, guaranteed (LWA)

    119 dB(A)

    Sound power level, measured

    117 dB(A)
    Vibration

    Equivalent vibration level (ahv, eq) rear handle

    7.5 m/s²

    Equivalent vibration level (ahv, eq) front handle

    6.5 m/s²
    Lubricant

    Oil tank volume

    1.06 US pint

    Lubricant type (Engine)

    Husqvarna 2 stroke or equiv. at 50:1

    Additional information

    Weight 16.1 lbs
