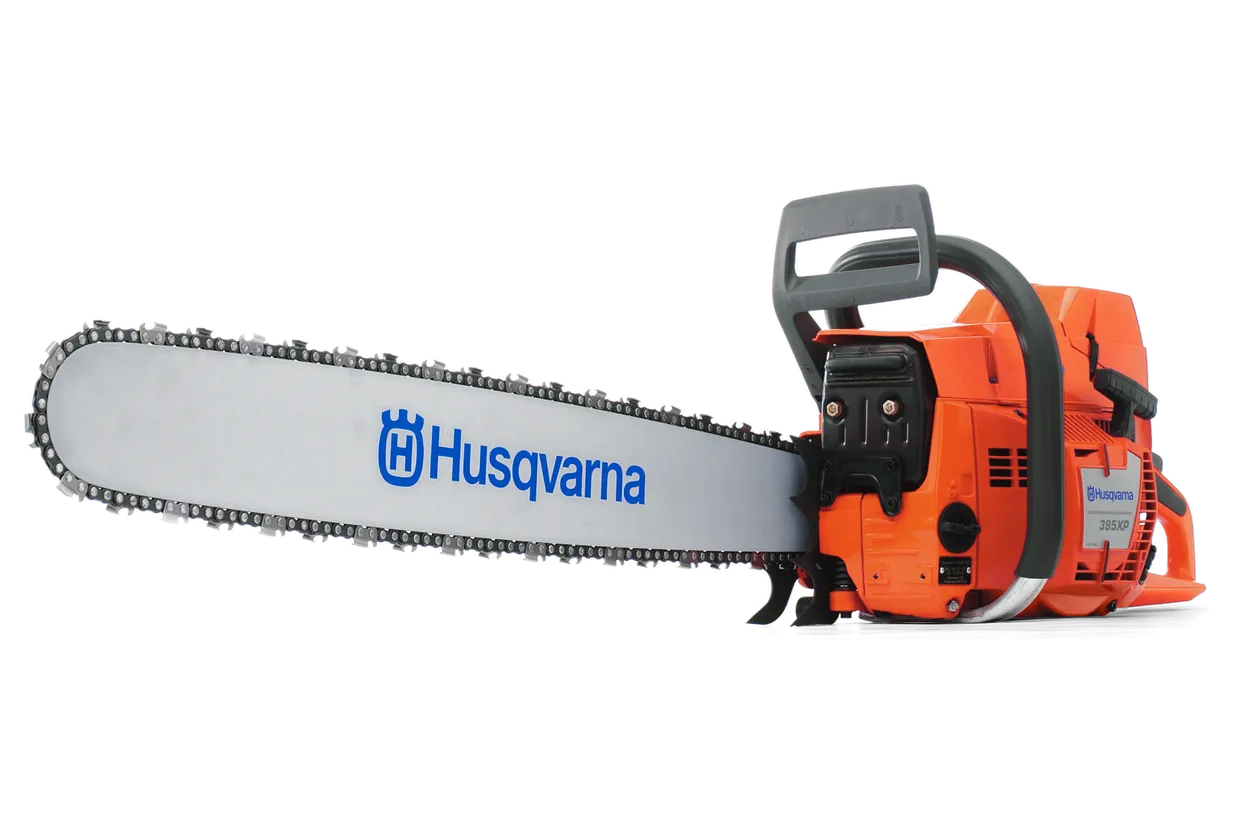

HUSQVARNA 395 XP®
Husqvarna

HUSQVARNA 395 XP®

Price range: $1,429.99 through $1,539.99

Professional 94cc chainsaw built for the toughest forestry jobs

Choose one of the world’s most capable and legendary chainsaws. The Husqvarna 395 XP® is built for professional loggers and foresters. Excellent balance and a rugged handle design make this large saw easy to operate – even with longer guide bars. The aggressive clutch can handle the chainsaw’s substantial power, while a wider clutch cover guarantees effective wood chip dispersal. Take your work to the highest level of performance with this trusted machine.
Requesting Brochure for...

2529HUSQVARNA 395 XP®

Address
SKU: N/A Categories: , , , Tags: , , , , Brand:

    Description

    Engine
    20″ Bar, .3/8″ Pitch, .050″ Gauge
    SKU: 965 90 27‑49
    32″ Bar, .3/8″ Pitch, .050″ Gauge
    SKU: 965 90 27‑09
    36″ Bar, .3/8″ Pitch, .063″ Gauge
    SKU: 965 90 27‑10
    36″ Bar, .3/8″ Pitch, .058″ Gauge
    SKU: 965 90 27‑20
    32″ RSN 3/8″ 1,6 mm H83
    SKU: 965 90 27‑35
    24″ Bar, .3/8″ Pitch, .050″ Gauge
    SKU: 965 90 27‑37
    28″ Bar, .3/8″ Pitch, .050″ Gauge
    SKU: 965 90 27‑39
    20″ Bar, .3/8″ Pitch, .058″ Gauge
    SKU: 965 90 27‑62
    24″ Bar, .3/8″ Pitch, .058″ Gauge
    SKU: 965 90 27‑63
    28″ Bar, .3/8″ Pitch, .058″ Gauge
    SKU: 965 90 27‑65
    28″ RSN 3/8″ 1,6 mm H83
    SKU: 965 90 27‑71
    32″ RSN 3/8″ 1,5 mm H48
    SKU: 965 90 27‑72
    28″ US Lightweight RSN 3/8″ 1,3 mm C83
    SKU: 965 90 27‑78
    32″ US Lightweight RSN 3/8″ 1,6 mm H83
    SKU: 965 90 27‑82
    36″ US Lightweight RSN 3/8″ 1,6 mm H83
    SKU: 965 90 27‑86

    Chain speed at max power

    		 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts 64.3 fts

    Cylinder displacement

    		 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³ 94 cm³

    Output shaft power

    1

    		 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp 6.6 hp

    Torque, max.

    		 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm 5.9 Nm

    Torque, max. at rpm

    		 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm 6,000 rpm

    Clutch engagement speed (±120)

    		 3,500 rpm 3,400 rpm 3,400 rpm 3,400 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm 3,500 rpm

    Electrode gap

    		 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in

    Idling speed

    		 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm 2,500 rpm

    Ignition module air gap

    		 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in

    Maximum power speed

    		 8,700 rpm 9,600 rpm 9,600 rpm 9,600 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm 8,700 rpm

    Oil pump capacity, max

    		 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min 20 ml/min

    Oil pump capacity, min

    		 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min 15 ml/min

    Oil pump type

    		 Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic Automatic

    Spark Plug

    		 NGK BPMR7A, Champion RCJ6Y Champion RCJ6Y Champion RCJ6Y Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y NGK BPMR7A, Champion RCJ6Y
    Equipment

    Recommended bar length, min

    		 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in

    Pitch

    		 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″

    Recommended bar length, max

    		 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in

    Chain type

    		 C83 C83 H83 H42 H45 C83 C83 C85 C85 C85 H83 C85 C83 H83 H83

    Bar length

    		 50 cm 81 cm 90 cm 50 cm 81 cm 60 cm 70 cm 50 cm 60 cm 70 cm 70 cm 81 cm 70 cm 81 cm 90 cm

    Bar length (inch)

    		 20 in 32 in 36 in 20 in 32 in 24 in 28 in 20 in 24 in 28 in 28 in 32 in 28 in 32 in 36 in

    Sprocket type

    		 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7

    Gauge

    		 .050″ .063″ .058″ .063″ .058″ .058″ .058″ .063″ .058″
    Dimensions

    Weight (excl. cutting equipment)

    		 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs 17.4 lbs
    Sound and noise

    Sound pressure level at operators ear

    		 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A) 102 dB(A)

    Sound power level, guaranteed (LWA)

    		 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A) 115 dB(A)

    Sound power level, measured

    		 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A) 114 dB(A)
    Vibration

    Equivalent vibration level (ahv, eq) rear handle

    		 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s² 10.2 m/s²

    Equivalent vibration level (ahv, eq) front handle

    		 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s² 6.5 m/s²
    Lubricant

    Oil tank volume

    		 1.1 US pint 1.06 US pint 1.06 US pint 1.06 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint 1.1 US pint

    Lubricant type (Engine)

    		 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1

    Additional information

    Bar Type, Length & Gauge

    20in .050, 20in .058, 24in .050, 24in .0508, 28in .050, 28in .058, 28in .063, 32in .050, 32in .058, 32in .063, 36in .058, 36in .063, XT-Light 28in .050, XT-Light 32in .063, XT-Light 36in .063
