Description
| Engine |

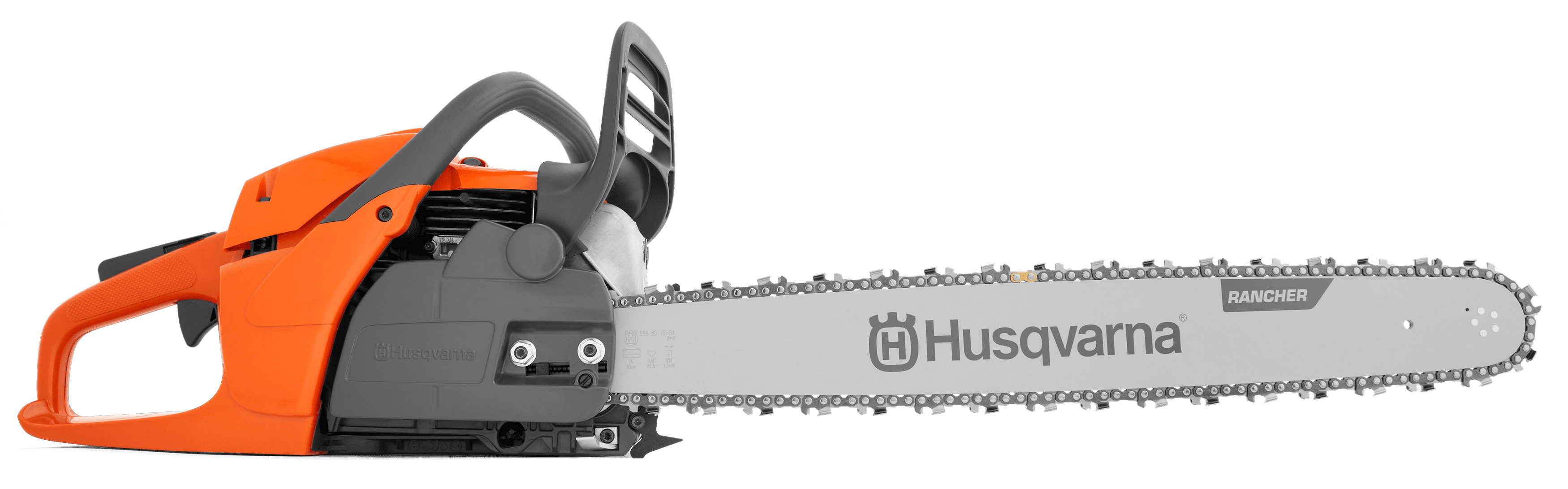

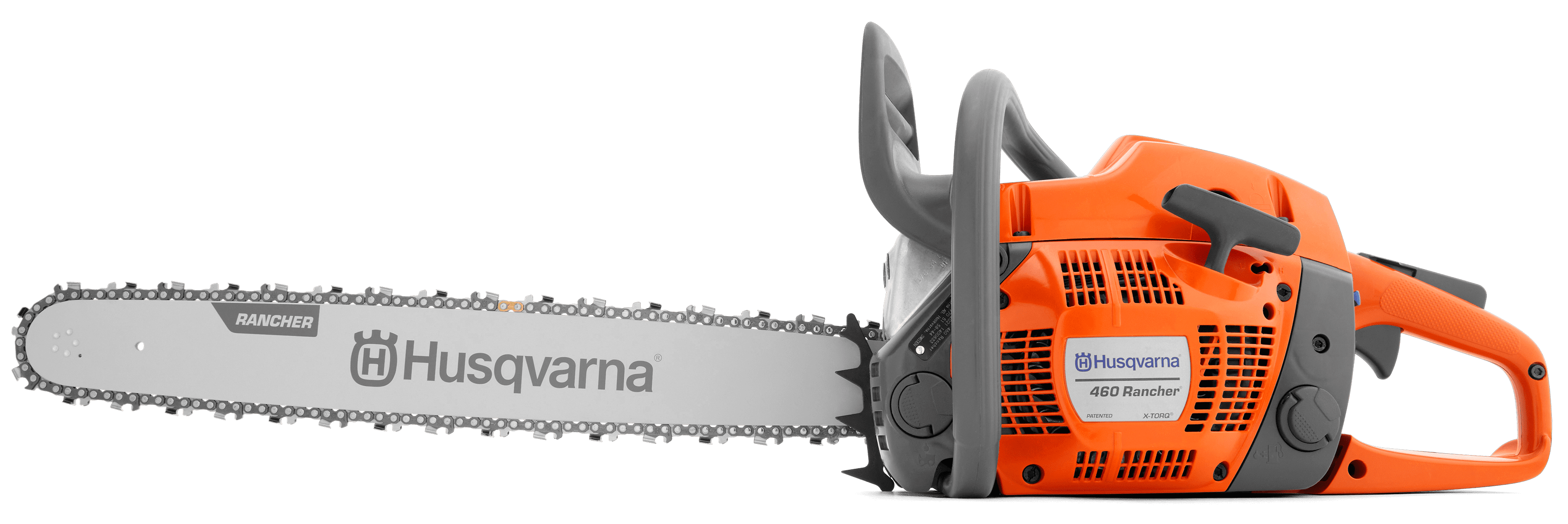

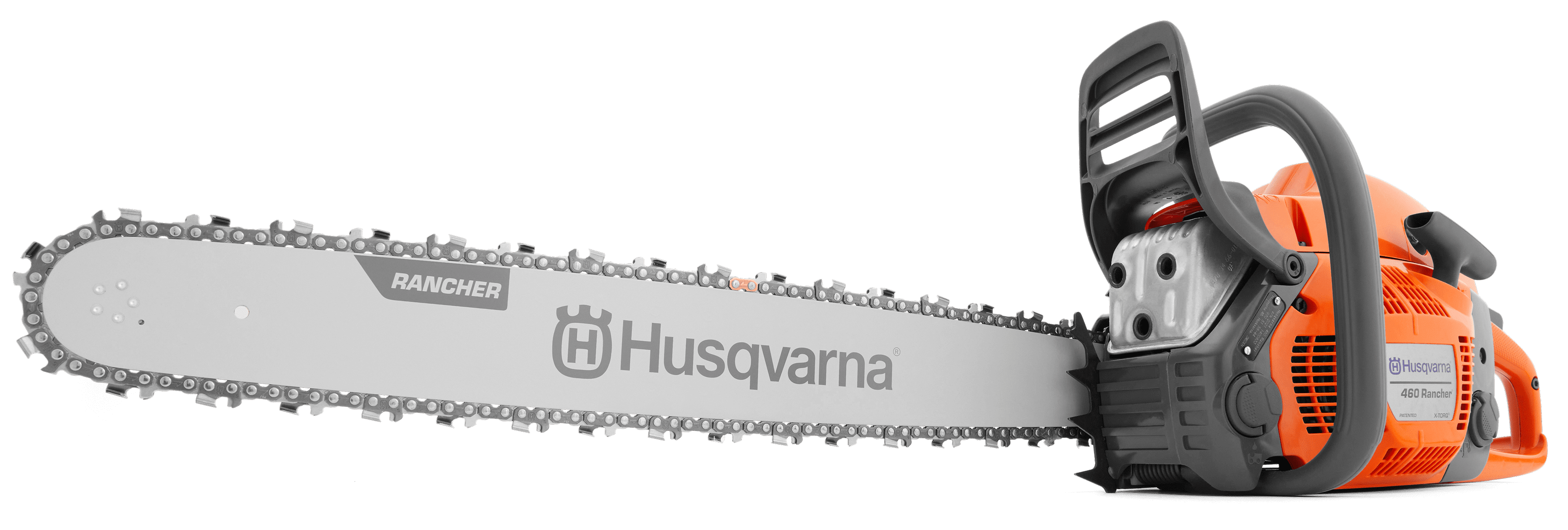

24″, 3/8″ X-Cut, RancherBar FA RTLBX
SKU: 970 61 39‑54
|
Chain speed at max power |
65.62 fts |
|---|---|
Cylinder displacement |
60.3 cm³ |
Output shaft power1 |
3.62 hp |
Torque, max. |
3.4 Nm |
Torque, max. at rpm |
7,000 rpm |
Clutch engagement speed (±120) |
3,900 rpm |
Electrode gap |
0.02 in |
Idling speed |
2,700 rpm |
Ignition module air gap |
0.01 in |
Maximum power speed |
9,000 rpm |
Oil pump capacity, max |
17 ml/min |
Oil pump capacity, min |
6 ml/min |
Oil pump type |
Automatic |
Spark Plug |
Champion RCJ7Y, NGK BPMR7A |
| Equipment | |
Recommended bar length, min |
13 in |
Pitch |
3/8″ |
Recommended bar length, max |
24 in |
Chain type |
S83G |
Bar length |
60 cm |
Bar length (inch) |
24 in |
Sprocket type |
Spur 7 |
Gauge |
.058″ |
| Dimensions | |
Weight (excl. cutting equipment) |
13.2 lbs |
| Sound and noise | |
Sound pressure level at operators ear |
105 dB(A) |
Sound power level, guaranteed (LWA) |
115 dB(A) |
Sound power level, measured |
113 dB(A) |
| Vibration | |
Equivalent vibration level (ahv, eq) rear handle |
6.9 m/s² |
Equivalent vibration level (ahv, eq) front handle |
3.8 m/s² |
| Lubricant | |
Oil tank volume |
0.7 US pint |
Lubricant type (Engine) |
Husqvarna 2 stroke or equiv. at 50:1 |
| Emission | |
Exhaust emissions (CO₂ EU V)2 |
825 g/kWh |
