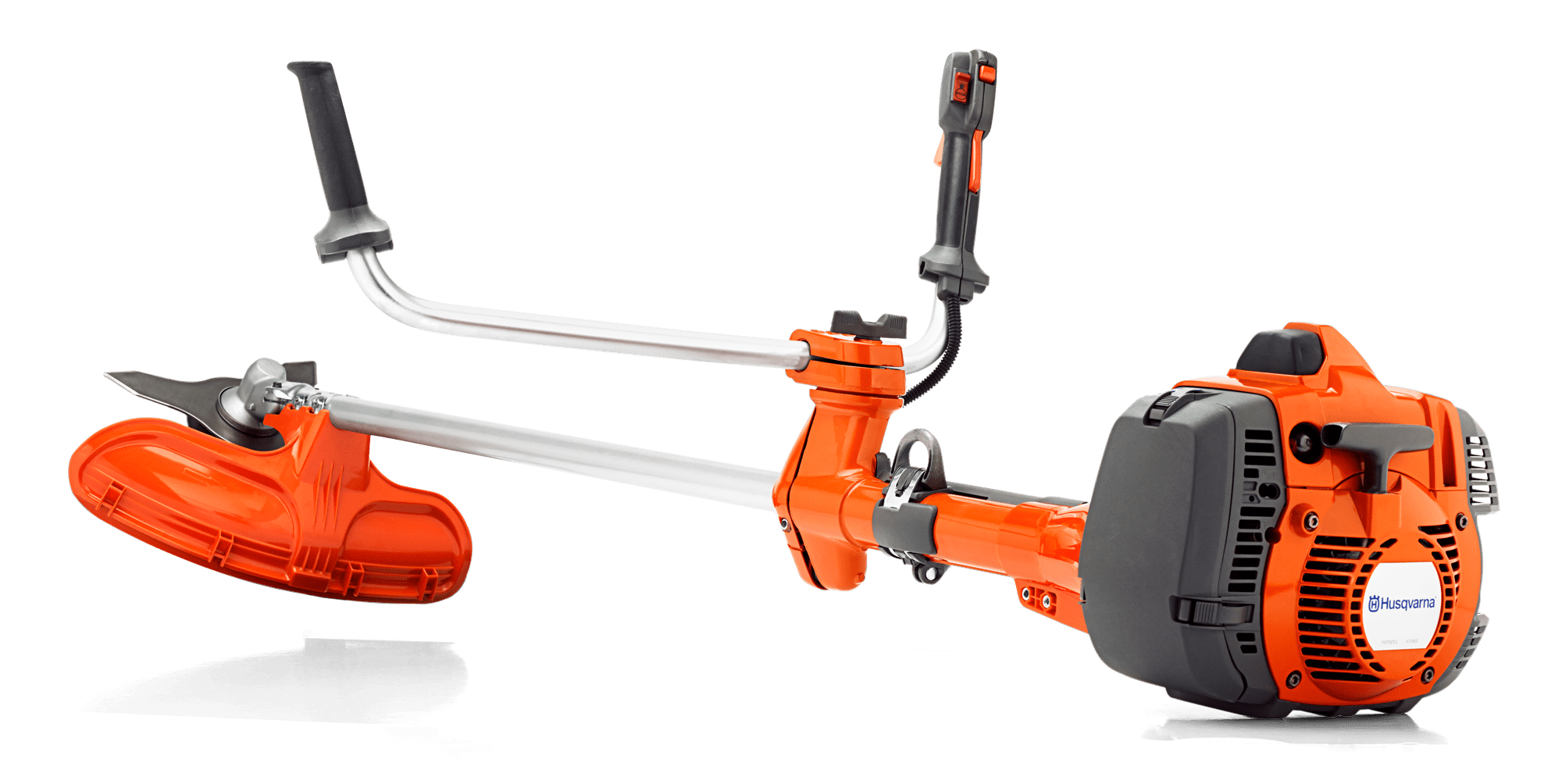

HUSQVARNA 545FR
Husqvarna

HUSQVARNA 545FR

$1,019.99

Well-equipped clearing saw for various tasks

Husqvarna 545FR comes complete with trimmer head, grass blade and saw blade. This flexibility makes it an ideal solution for people who require the benefits both products offer in one, effective package. The X-Torq® engine provide raw power and excellent fuel economy. LowVib® vibration damping maximizes user comfort and control.
Requesting Brochure for...

2244HUSQVARNA 545FR

Address
SKU: 967 63 79‑05 Categories: , Tags: , , , Brand:

    Description

    Engine
    T45X , Multi 300-3, Scarlett 200-22, US
    SKU: 967 63 79‑05

    Cylinder displacement

    		 2.8 cu.inch

    Output shaft power

    1

    		 2.8 hp

    Fuel tank volume

    		 30.43 fl oz

    Fuel consumption

    		 450 g/kWh

    Maximum power speed

    		 9,000 rpm

    Idling speed

    		 2,700 rpm

    Maximum rpm output shaft

    		 8,800 rpm

    Electrode gap

    		 0.02 in

    Clutch engagement speed (±120)

    		 3,900 rpm

    Torque, max.

    		 2.6 Nm

    Torque, max. at rpm

    		 6,000 rpm

    Spark Plug

    		 NGK CMR6H

    Output shaft thread

    		 M12x1.75V
    Equipment

    Grass blade

    		 Multi 300-3

    Harness

    		 Balance X

    Saw blade

    		 Scarlett 200-22

    Trimmer head

    		 T45X M12

    Handle type

    		 Bullhorn
    Control

    Connectivity

    		 Not applicable
    Capacity

    Cutting width

    		 19.3 in
    Transmission

    Gear ratio

    		 1.4

    Drive gear angle

    		 35 °
    Dimensions

    Tube diameter

    		 1.3 in

    Weight (excl. cutting equipment)

    		 19.2 lbs

    Tube length

    		 54.488 in
    Lubricant

    Lubricant type (Engine)

    		 Husqvarna 2 stroke or equiv. at 50:1

    Lubricant type (bevel gear)

    		 Mineral grease
    Sound and noise

    Sound pressure level at operators ear

    		 100 dB(A)

    Sound power level, guaranteed (LWA)

    		 117 dB(A)

    Sound power level, measured

    		 115 dB(A)
    Emission

    Exhaust emissions (HC average) EU

    		 36.45 g/kWh

    Exhaust emissions (HC average) EPA

    		 35.37 g/kWh

    Exhaust emissions (CO average) EU

    		 262.85 g/kWh

    Exhaust emissions (CO average) EPA

    		 269.16 g/kWh

    Exhaust emissions (NOx average) EU

    		 1.96 g/kWh

    Exhaust emissions (NOx average) EPA

    		 1.76 g/kWh
    Vibration

    Equivalent vibration level (ahv, eq) left handle

    		 3.6 m/s²

    Equivalent vibration level (ahv, eq) right handle

    		 3.8 m/s²
