HUSQVARNA 585
HUSQVARNA 585 - Image 2
HUSQVARNA 585 - Image 3
HUSQVARNA 585 - Image 4
HUSQVARNA 585 - Image 5
Husqvarna

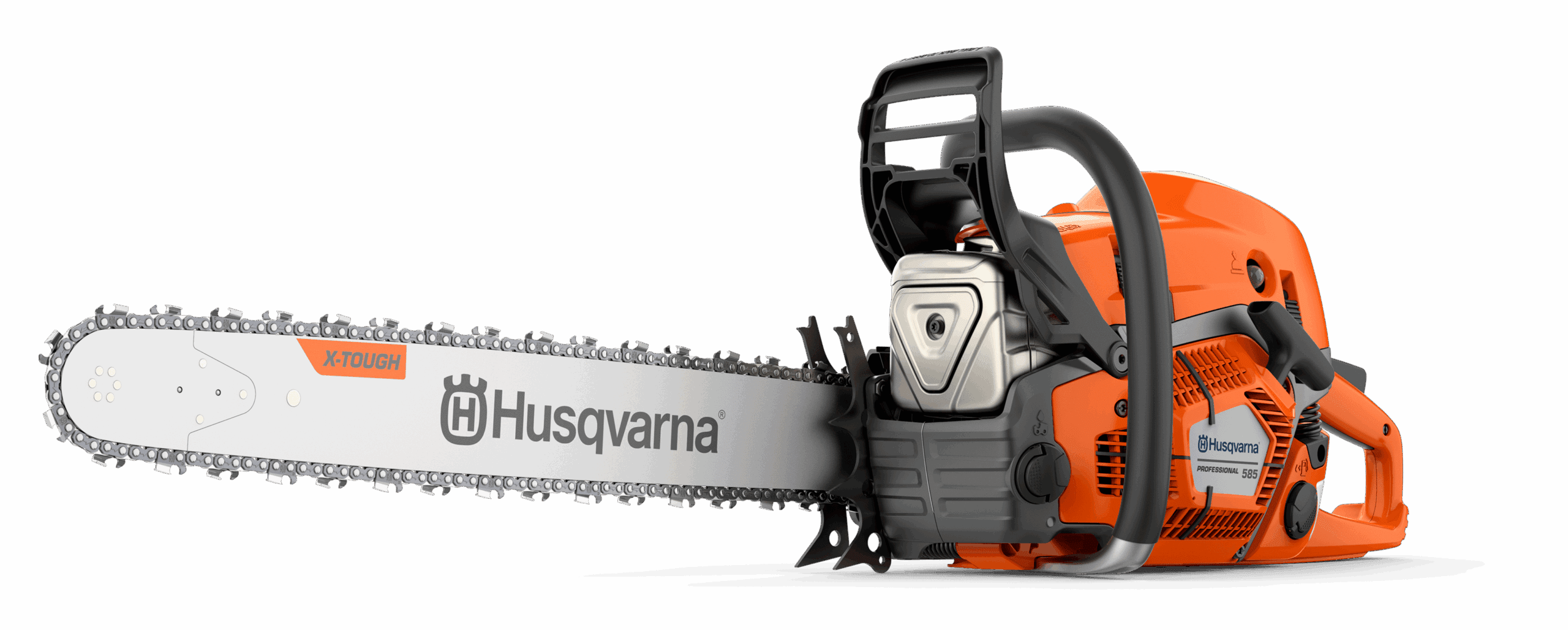

HUSQVARNA 585

Price range: $1,469.99 through $1,549.99

Professional 86cc chainsaw for heavy-duty forestry in tough conditions

Experience the robustness of our new 90cc petrol chainsaw range! Husqvarna 585 is developed for forestry and tree care workers looking for a robust and durable chainsaw that’s easy to maneuver and maintain even in tough conditions. This chainsaw combines proven technology with modern design and performance. The powerful X-Torq engine combined with the X-Cut C85/C83 chains delivers excellent cutting capacity. Equipped with X-Tough™ bar, available from 20” to 36”.
Requesting Brochure for...

2381HUSQVARNA 585

Address
SKU: N/A Categories: , , , Tags: , , , Brand:

    Description

    Engine
    36″ – RSN – 3/8″ – H83
    SKU: 970 49 30‑96
    24″ – RSN – 3/8″ – C85
    SKU: 970 49 30‑24
    28″ – RSN – 3/8″ – C85
    SKU: 970 49 30‑28
    20″ – RSN – 3/8″ – C85
    SKU: 970 49 30‑30
    32″ – RSN – 3/8″ – C85
    SKU: 970 49 30‑32
    20″ – RSN – 3/8″ – C83
    SKU: 970 49 30‑70
    24″ – RSN – 3/8″ – C83
    SKU: 970 49 30‑74
    28″ – RSN – 3/8″ – C83
    SKU: 970 49 30‑78
    32″ – RSN – 3/8″ – C83
    SKU: 970 49 30‑82
    28″ – RSN – 3/8″ – H83
    SKU: 970 49 30‑88
    32″ – RSN – 3/8″ – H83
    SKU: 970 49 30‑92

    Chain speed at max power

    		 75.5 fts 75.5 fts 75.5 fts 75.5 fts 75.5 fts 75.5 fts 75.5 fts 75.5 fts 75.5 fts 75.5 fts 75.5 fts

    Cylinder displacement

    		 86 cm³ 86 cm³ 86 cm³ 86 cm³ 86 cm³ 86 cm³ 86 cm³ 86 cm³ 86 cm³ 86 cm³ 86 cm³

    Output shaft power

    1

    		 6.9 hp 6.9 hp 6.9 hp 6.9 hp 6.9 hp 6.9 hp 6.9 hp 6.9 hp 6.9 hp 6.9 hp 6.9 hp

    Torque, max.

    		 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm 5.3 Nm

    Torque, max. at rpm

    		 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm

    Clutch engagement speed (±120)

    		 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm 4,300 rpm

    Electrode gap

    		 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in

    Idling speed

    		 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm

    Ignition module air gap

    		 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in

    Maximum power speed

    		 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm

    Oil pump type

    		 Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle Adjustable flow, no flow at idle

    Spark Plug

    		 NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H
    Equipment

    Recommended bar length, min

    		 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in 18 in

    Pitch

    		 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″

    Recommended bar length, max

    		 36 in 36 in 36 in 36 in 36 in 36 in 36 in 36 in 36 in 36 in 36 in

    Chain type

    		 H83 C85 C85 C85 C85 C83 C83 C83 C83 H83 H83

    Bar length

    		 90 cm 60 cm 70 cm 50 cm 81 cm 50 cm 60 cm 70 cm 81 cm 70 cm 81 cm

    Bar length (inch)

    		 36 in 24 in 28 in 20 in 32 in 20 in 24 in 28 in 32 in 28 in 32 in

    Sprocket type

    		 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7

    Gauge

    		 .058″ .058″ .058″ .058″
    Dimensions

    Weight (excl. cutting equipment)

    		 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs 16.5 lbs
    Sound and noise

    Sound pressure level at operators ear

    		 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A) 112 dB(A)

    Sound power level, guaranteed (LWA)

    		 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A) 119 dB(A)

    Sound power level, measured

    		 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A)
    Vibration

    Equivalent vibration level (ahv, eq) rear handle

    		 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s² 5.9 m/s²

    Equivalent vibration level (ahv, eq) front handle

    		 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s² 6.7 m/s²
    Lubricant

    Oil tank volume

    		 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint 0.89 US pint

    Lubricant type (Engine)

    		 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1
    Emission

    Exhaust emissions (CO₂ EU V)

    2

    		 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh 792 g/kWh

    Additional information

    Length & Gauge

    20in .050, 20in .058, 24in .050, 24in .058, 28in .050, 28in .058, 28in .063, 32in .050, 32in .058, 32in .063, 36in .063
