ISC-Small Rigging Pulley for 20mm(3/4") Rope
ISC-Small Rigging Pulley for 20mm(3/4") Rope - Image 2
ISC

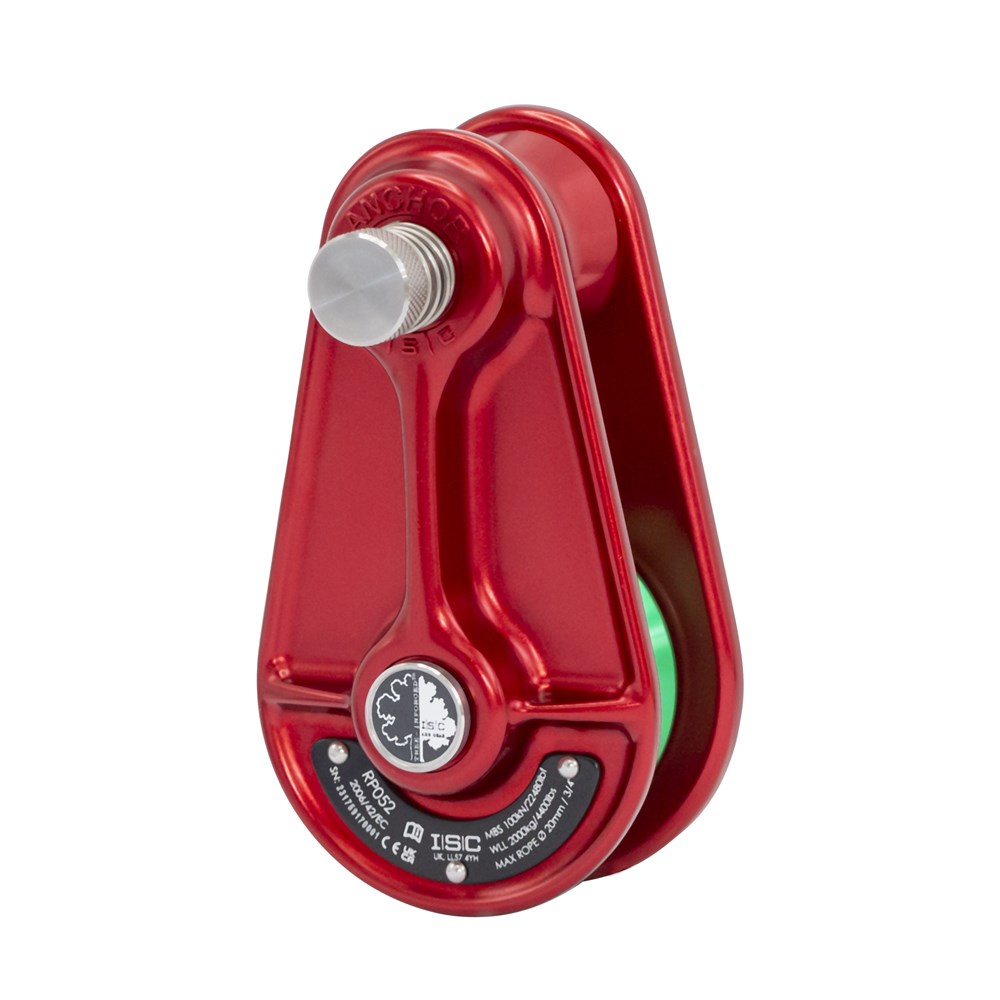

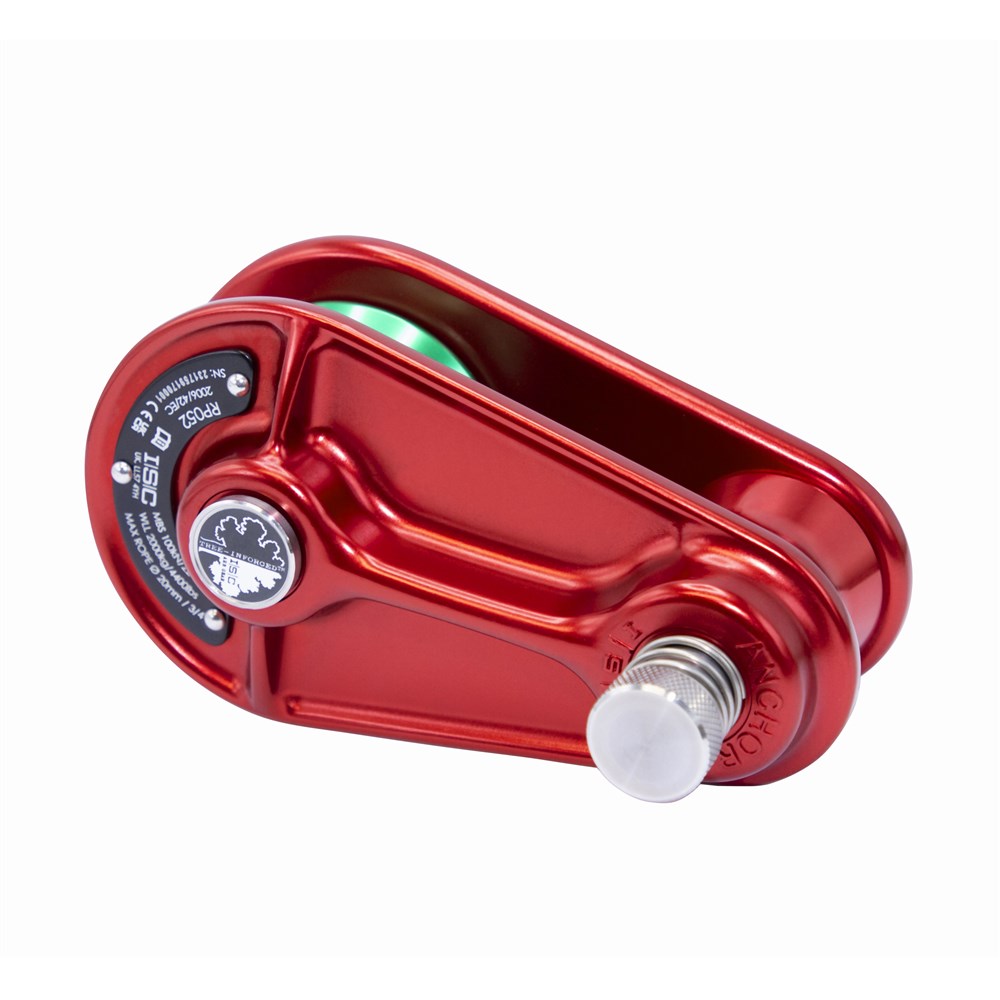

ISC-Small Rigging Pulley for 20mm(3/4″) Rope

$279.95

The RP052 Rigging Pulley has hot Forged side frames, combined with high quality materials and components. The RP052 is rope friendly, durable and extremely robust. These features combined give maximum security and strength, when the block is rigged as part of an impact system.

Requesting Brochure for...

16976ISC-Small Rigging Pulley for 20mm(3/4″) Rope

Address
SKU: RP052A1 Categories: , Brand:

    Description

    Apart from the aesthetically pleasing curves, the ISC impact pulley is designed to work (together with textiles) to absorb the huge forces which are created by the harsh dynamics of heavy Arborist work. The side plates are produced using the best quality hot forged Aluminium and the special manufacturing process allows these pulleys to offer a highly impressive strength to weight ratio.

    Technical Information

    Compatible with rope diameter (mm)20 (3/4″)
    (WLL) Working Load Limit (kg)2000
    (WLL) Working Load Limit (lbs)440
    (MBS) Minimum Breaking Strength (kN)100
    (MBS) Minimum Breaking Strength (lbf)22480
    Pulley wheel colourGreen
    Anchor wheel colourRed
    Wheel materialAluminium
    Body finishAnodised
    Weight (grams)1640
    Weight (ounces)58
    Height (mm)180
    Height (inches)7
    Width (mm)100
    Width (inches)3.9
    Thickness (mm)108
    Thickness (inches)4.25

    Additional information

    Weight 3.8 lbs
    Dimensions 8 × 4.75 × 4.5 in
