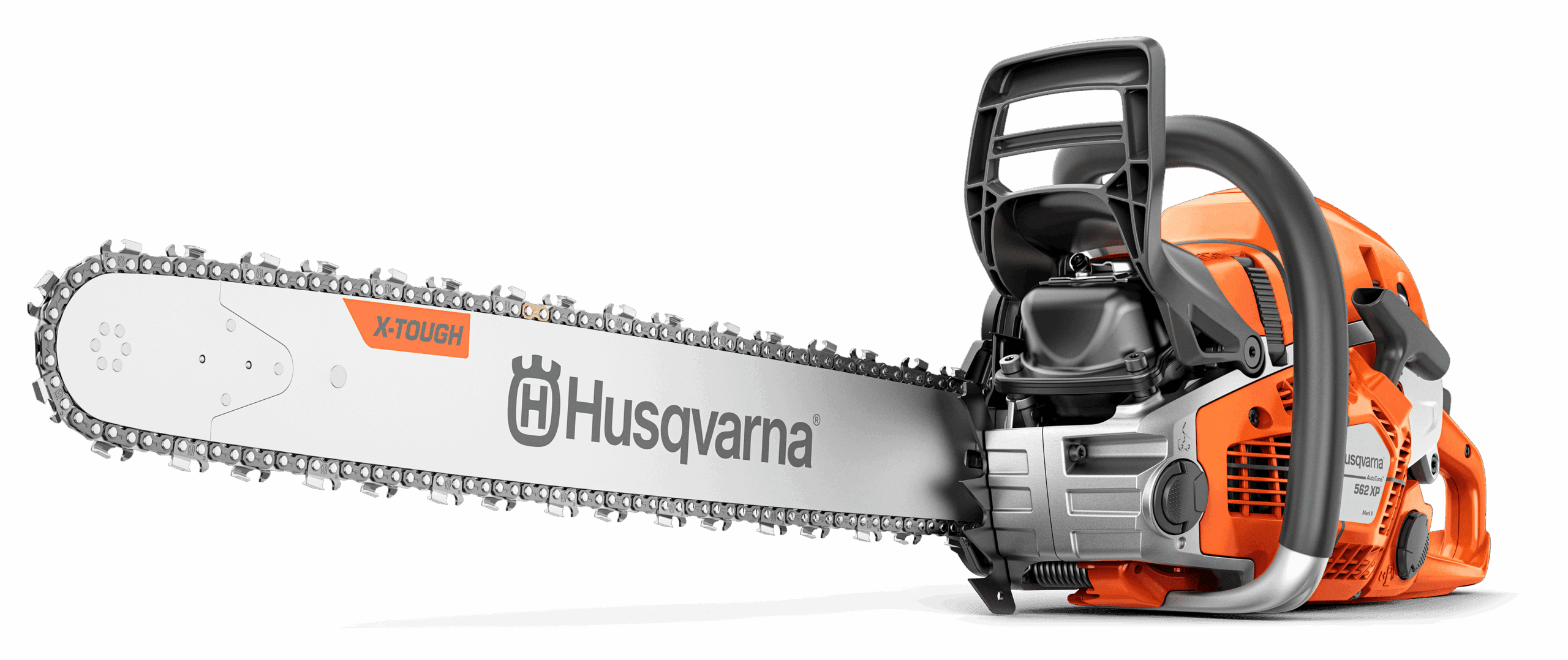

Husqvarna 562 XP® Mark II

Price range: $939.99 through $1,029.99

A Redesigned Legend: A 60cc powerhouse for professional forestry and tree care

Engineered for the demands of professional forestry and tree care, the Husqvarna 562 XP® Mark II offers unparalleled handling in even the most demanding work environments. Featuring a new and improved engine design and AutoTune™ 3.0 technology for simpler starting, this chainsaw offers the power of a large saw in a slim, agile body.

A testament to relentless improvement, the 562 XP® Mark II accommodates guide bars of up to 28 inches, and has been meticulously redesigned to offer more durability, improved cutting capacity, reduced weight and enhanced cooling, resulting in a powerhouse that is easy to handle, tough to beat.



Requesting Brochure for...

2429Husqvarna 562 XP® Mark II

Address
SKU: N/A Categories: , , , Tags: , , , , Brand:

    Description

    Engine
    18″ RSN C83
    SKU: 970 69 67‑18
    20″ RSN C83
    SKU: 970 69 67‑20
    24″ RSN C83
    SKU: 970 69 67‑24
    28″ RSN C83
    SKU: 970 69 67‑28
    24″ RSN Lightweight C83
    SKU: 970 69 67‑54
    28″ RSN Lightweight C83
    SKU: 970 69 67‑58
    18″ RSN C85
    SKU: 970 69 67‑68
    20″ RSN C85
    SKU: 970 69 67‑70
    24″ RSN C85
    SKU: 970 69 67‑74
    28″ RSN C85
    SKU: 970 69 67‑78
    28″ RSN H83
    SKU: 970 69 67‑88

    Chain speed at max power

    		 70.2 fts 70.2 fts 70.2 fts 70.2 fts 70.2 fts 70.2 fts 70.2 fts 70.2 fts 70.2 fts 70.2 fts 70.2 fts

    Cylinder displacement

    		 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³ 59.8 cm³

    Output shaft power

    1

    		 4.7 hp 4.7 hp 4.7 hp 4.7 hp 4.7 hp 4.7 hp 4.7 hp 4.7 hp 4.7 hp 4.7 hp 4.7 hp

    Torque, max.

    		 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm 3.44 Nm

    Torque, max. at rpm

    		 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm 7,800 rpm

    Clutch engagement speed (±120)

    		 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm 4,100 rpm

    Electrode gap

    		 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in 0.02 in

    Idling speed

    		 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm 2,800 rpm

    Ignition module air gap

    		 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in 0.01 in

    Maximum power speed

    		 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm 9,600 rpm

    Oil pump type

    		 Adjustable flow Adjustable flow Adjustable flow Adjustable flow Adjustable flow Adjustable flow Adjustable flow Adjustable flow Adjustable flow Adjustable flow Adjustable flow

    Spark Plug

    		 NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H NGK CMR6H
    Equipment

    Recommended bar length, min

    		 15 in 15 in 15 in 15 in 15 in 15 in 15 in 15 in 15 in 15 in 15 in

    Pitch

    		 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″ 3/8″

    Recommended bar length, max

    		 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in 28 in

    Chain type

    		 C83 C83 C83 C83 C83 C83 C85 C85 C85 C85 H83

    Bar length

    		 45 cm 50 cm 60 cm 70 cm 60 cm 70 cm 45 cm 50 cm 60 cm 70 cm 70 cm

    Bar length (inch)

    		 18 in 20 in 24 in 28 in 24 in 28 in 18 in 20 in 24 in 28 in 28 in

    Sprocket type

    		 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7 Rim 7

    Gauge

    		 .050″ .050″ .050″ .050″ .050″ .050″ .058″ .058″ .058″ .058″ .063″
    Dimensions

    Weight (excl. cutting equipment)

    		 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs 13 lbs
    Sound and noise

    Sound pressure level at operators ear

    		 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A) 107 dB(A)

    Sound power level, guaranteed (LWA)

    		 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A) 118 dB(A)

    Sound power level, measured

    		 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A) 116 dB(A)
    Vibration

    Equivalent vibration level (ahv, eq) rear handle

    		 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s² 4.5 m/s²

    Equivalent vibration level (ahv, eq) front handle

    		 4 m/s² 4 m/s² 4 m/s² 4 m/s² 4 m/s² 4 m/s² 4 m/s² 4 m/s² 4 m/s² 4 m/s² 4 m/s²
    Lubricant

    Oil tank volume

    		 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint 0.7 US pint

    Lubricant type (Engine)

    		 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1 Husqvarna 2 stroke or equiv. at 50:1
    Emission

    Exhaust emissions (CO₂ EU V)

    2

    		 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh 778 g/kWh

    Additional information

    Bar Type, Length, & Gauge

    18in .050, 18in .058, 20in .050, 20in .058, 24in .050, 24in .058, 28in .050, 28in .058, 28in .063, XT-Light 24in .050, XT-Light 28in .050
