ISC-Medium Rigging Pulley for up to Ø20mm(3/4") Rope
ISC-Medium Rigging Pulley for up to Ø20mm(3/4") Rope - Image 2
ISC

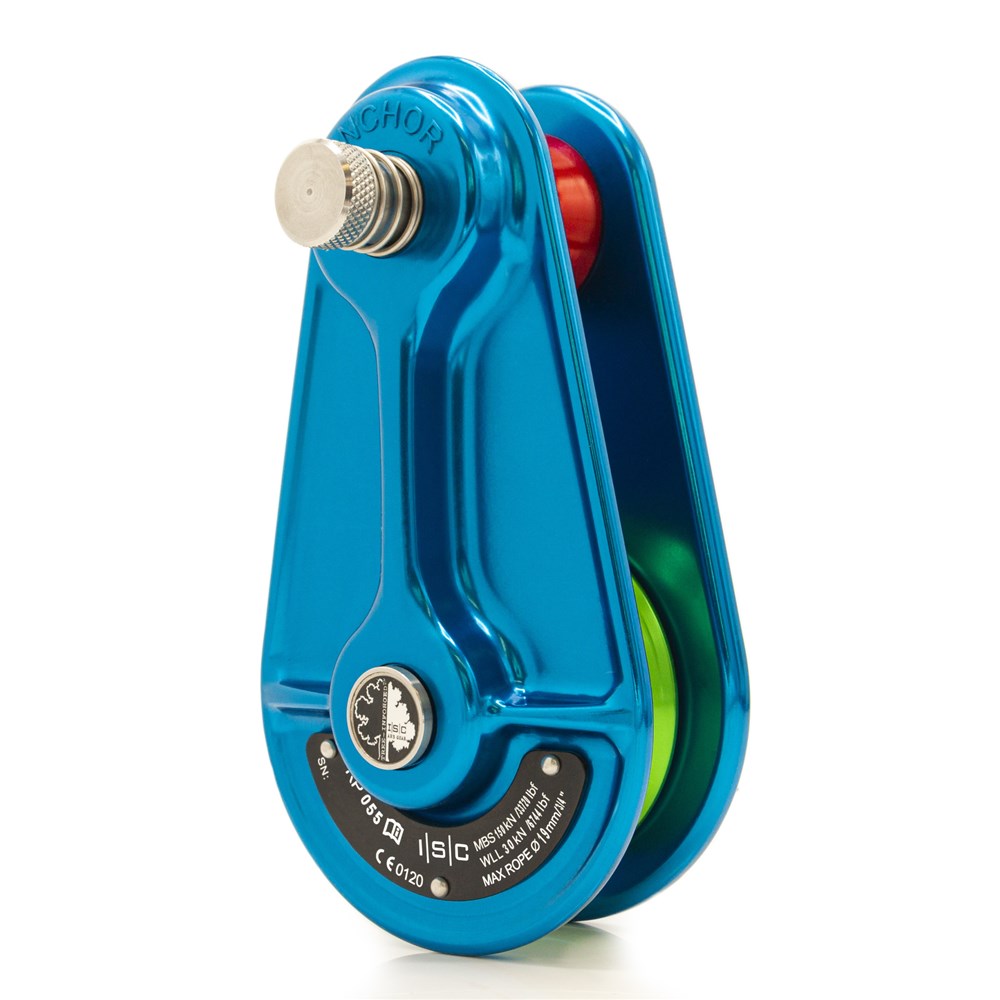

ISC-Medium Rigging Pulley for up to Ø20mm(3/4″) Rope

$314.95

The small and medium versions are now manufactured using Hot Forged Technology, combined with high quality materials and components.  These blocks are rope friendly, durable and extremely robust.  These features combined give maximum security and strength, when the block is rigged as part of an impact system.

Requesting Brochure for...

16982ISC-Medium Rigging Pulley for up to Ø20mm(3/4″) Rope

Address
SKU: RP055A1 Categories: , Brand:

    Description

    Apart from the aesthetically pleasing curves, the ISC impact pulley is designed to work (together with textiles) to absorb the huge forces which are created by the harsh dynamics of heavy Arborist work.  The side plates are produced using the best quality hot forged Aluminium and the special manufacturing process allows these pulleys to offer a highly impressive strength to weight ratio.

    Technical Information

    Rope diameter range (mm)Max 20mm (3/4″) Working Line Max 29mm (1+1/4″) Topping Strop
    (WLL) Working Load Limit (kg)3000
    (WLL) Working Load Limit (lbs)6600
    Serial numberingAs standard
    Pulley wheel colourGreen
    Anchor wheel colourRed
    Wheel materialAluminium
    FinishAnodised
    ColourBlue
    Weight (grams)2166

    Additional information

    Weight 5.3 lbs
    Dimensions 10 × 5.5 × 4.5 in
