12mm Steel Offset D
DMM

12mm Steel Offset D

$45.49

The Offset D connector shape takes the optimal loading of a D-shaped connector but with an increased internal volume at one end – the basket. This adds to the positivity in the hand, especially when wearing gloves.

Requesting Brochure for...

122212mm Steel Offset D

Address
SKU: C817 Categories: , Tags: , , , Brand:

    Description

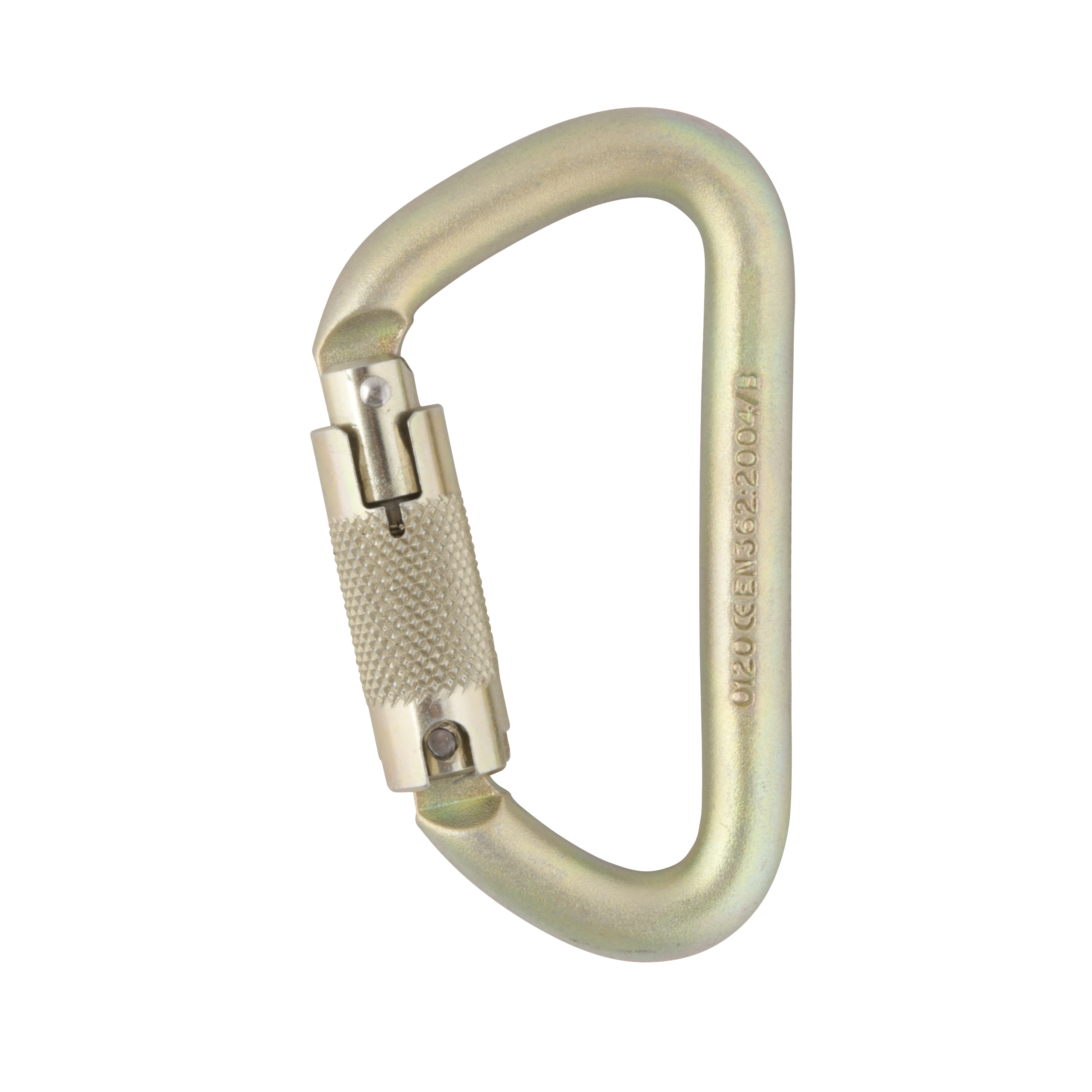

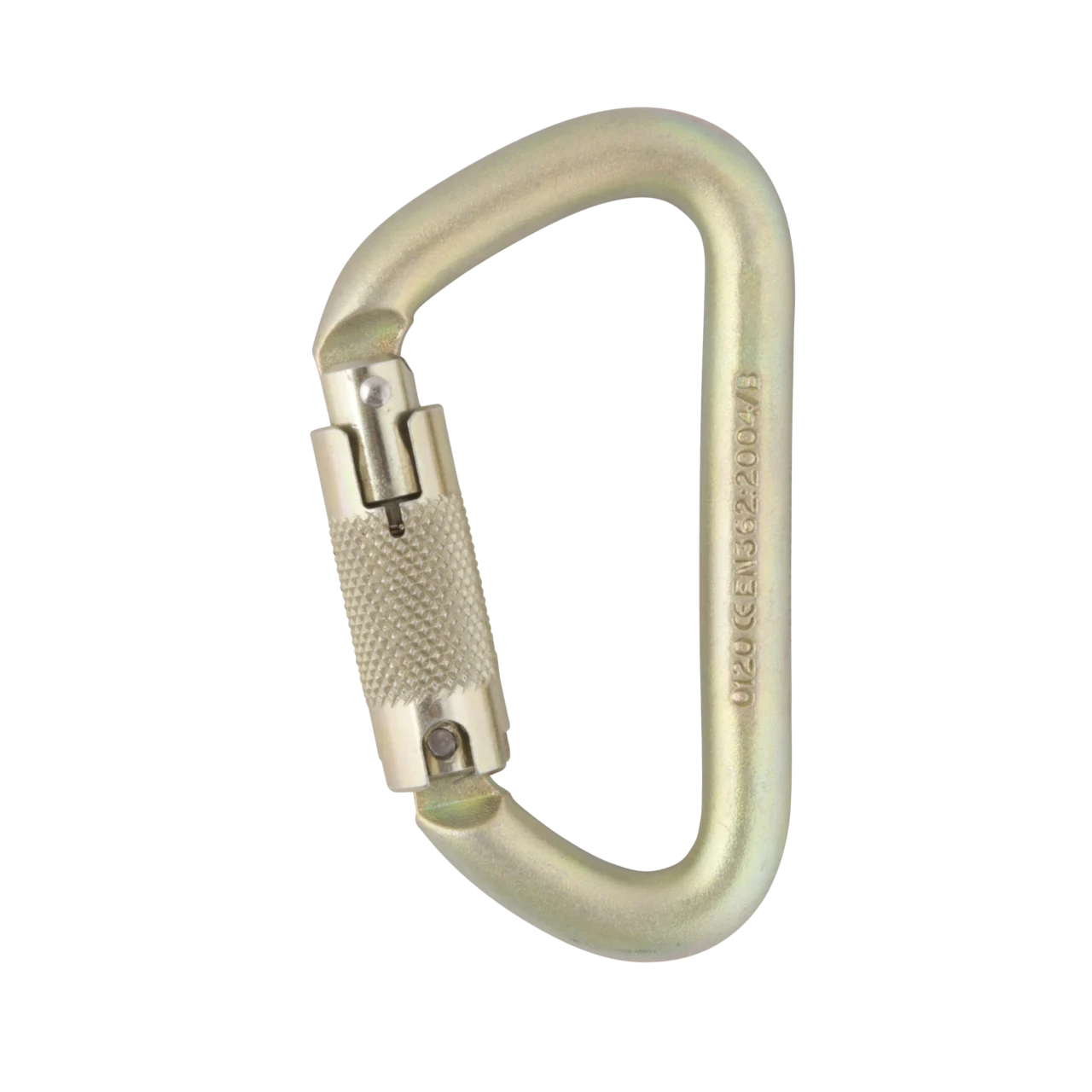

    An Offset D connector takes the spinal loading strength of a D-shaped back but extends the basket at one end to maximize gate opening and overall size without compromising ergonomics and weight. Cold forged from 12mm bar, the strengths achieved in testing exceed 45kN and it is first choice in applications requiring stronger connectors in their systems.

    Locksafe

    Auto-locking gate requiring three distinct actions to open.

    Additional information

    Weight 0.5467464 lbs
    Dimensions 2.44094 × 4.37008 × 0.72 in
    Color

    Steel
    Gate Type

    Kwiklock
    Product Dimensions

    62 x 111mm
    MBS (Major Axis)

    45kN
    MBS (Minor Axis)

    12kN
    MBS (Gate Open)

    12kN
    Gate Opening

    17mm
    Certification

    EN362:2004 B
    EN12275:2013 B
