Edelrid

CUPID STEEL

$39.95

Openable steel ring in accordance with EN 362-M | pin secured

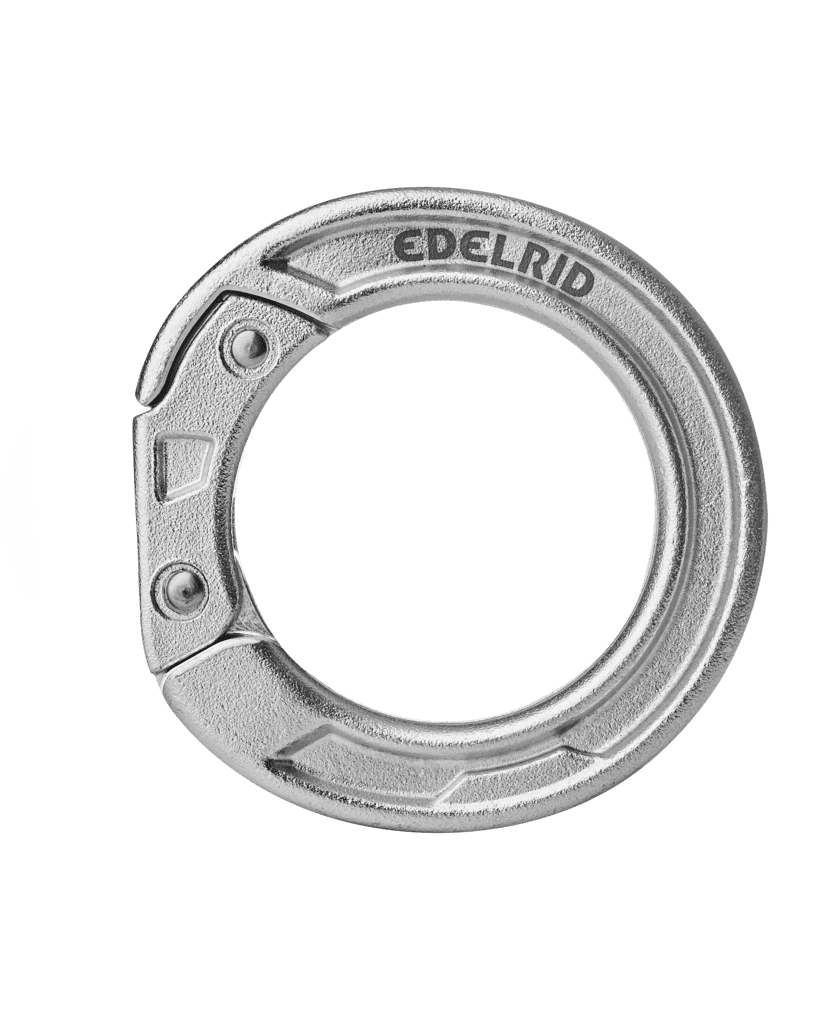

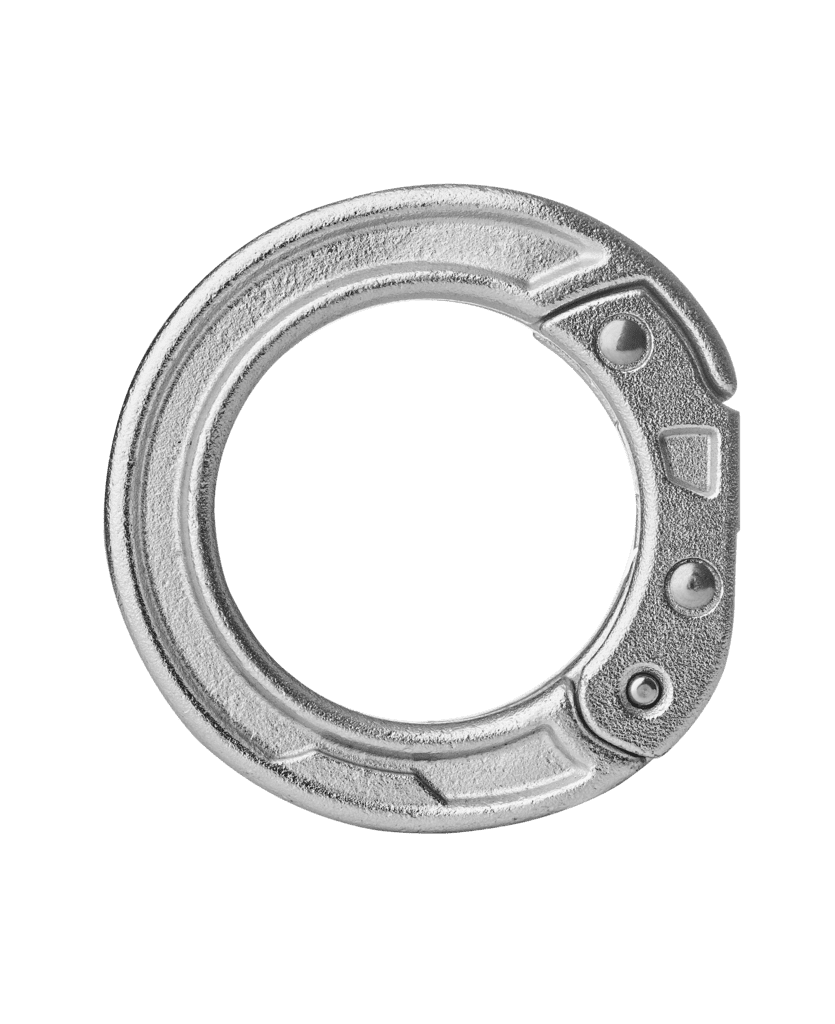

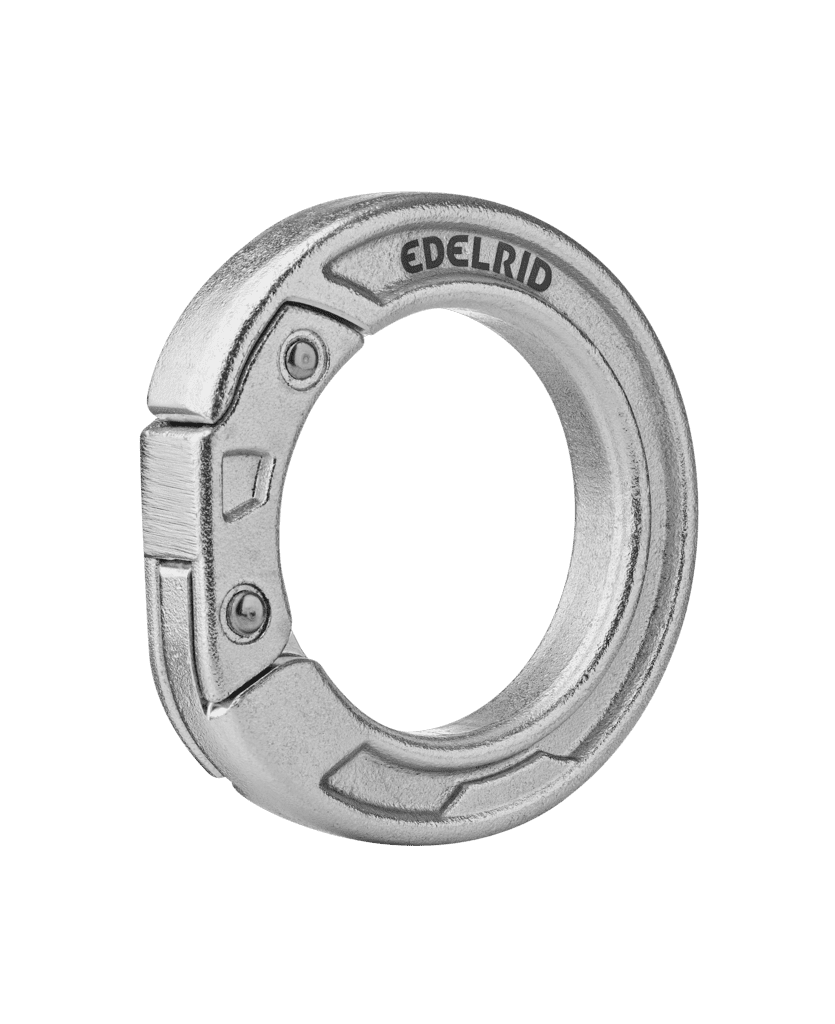

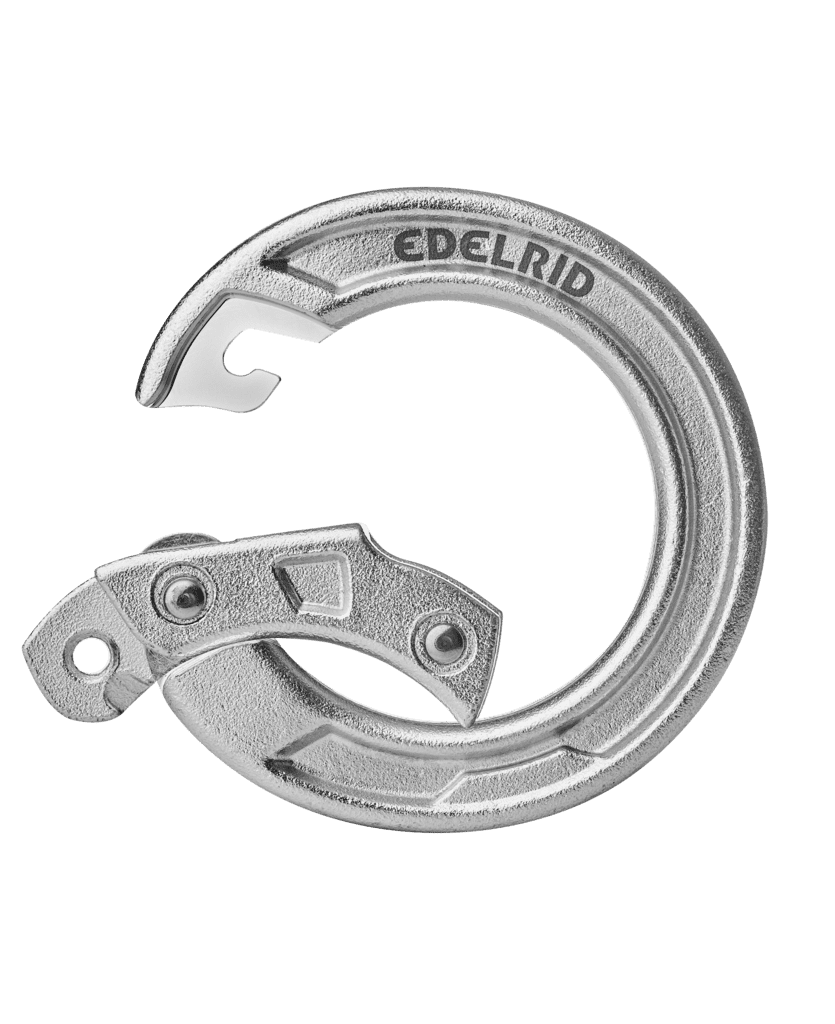

Openable steel ring in accordance with EN 362-M for permanently connecting load-bearing equipment elements in any direction. The innovative opening mechanism has been designed without a screw and is secured with a pin that can be unlocked without special tools. The opening width of 12 mm makes installing rope terminations, slings, and metal components easy.

Requesting Brochure for...

1555CUPID STEEL

Address
SKU: 852130000060 Categories: , Tags: , , , Brand:

    Description

    • Fully withstands loads in every direction
    • Highly robust due to steel design
    • No loose parts, button pin for opening the gate
    • Inside diameter: 44 mm

    Additional information

    Weight 0.35274 lbs
    Dimensions 2.75591 × 2.75591 × .5 in
    Color

    Silver

    Width

    70 mm

    Length

    70 mm

    Gate opening

    12 mm

    Fmax. Major Axis

    23 kN

    Fmax. Minor Axis

    23 kN

    Material

    Steel

    Certification

    EN 362
