CAMP

DRYAD

$49.95

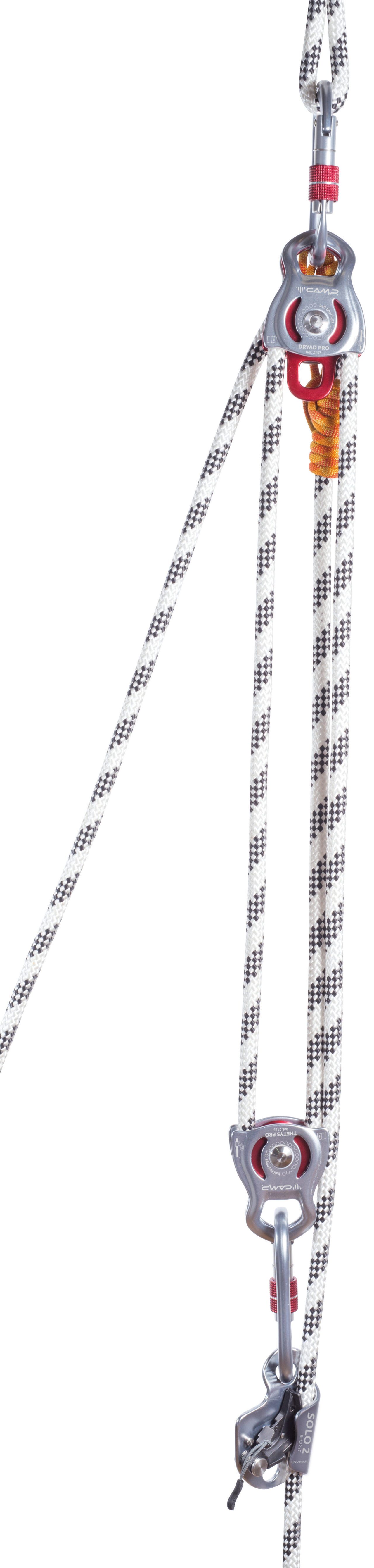

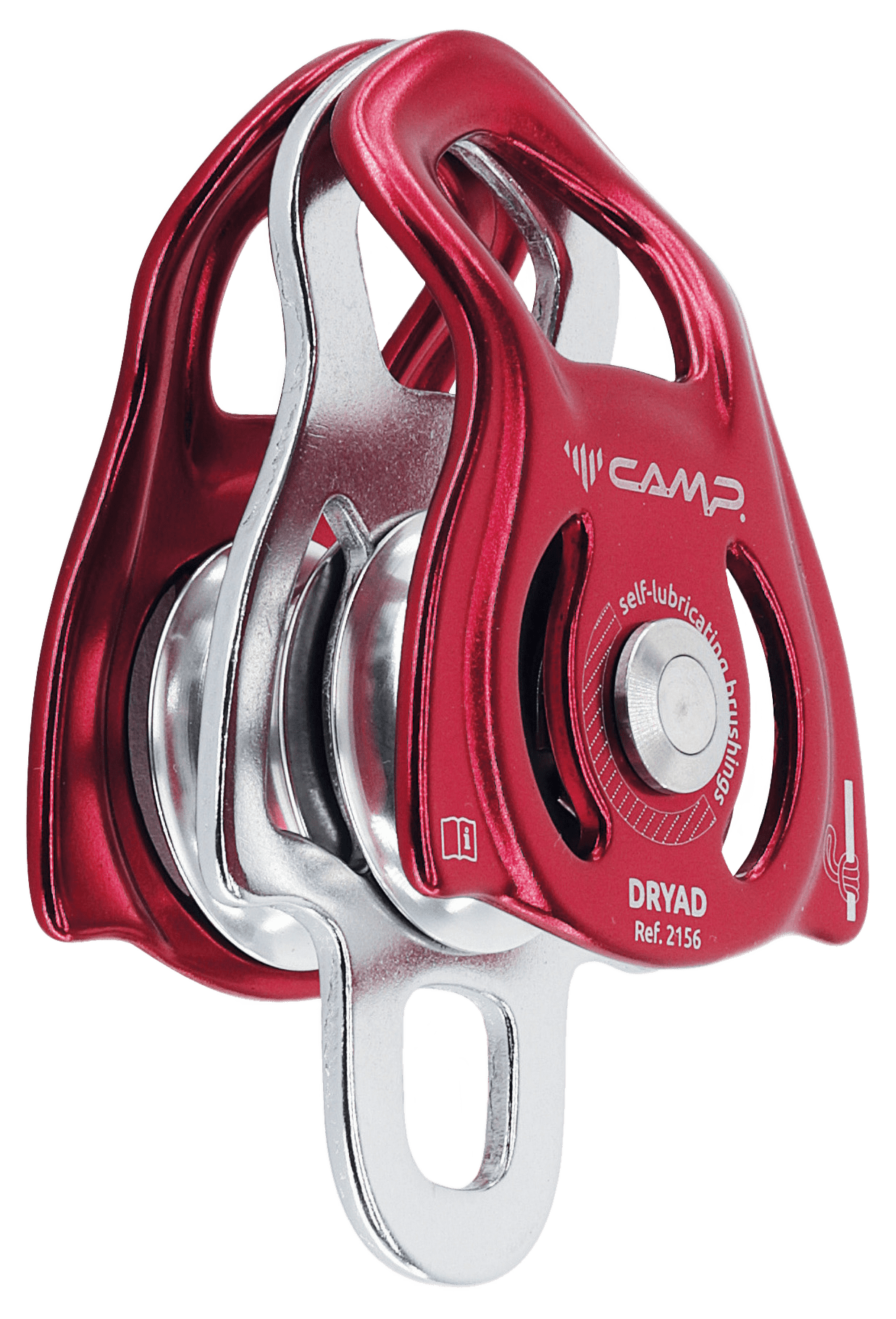

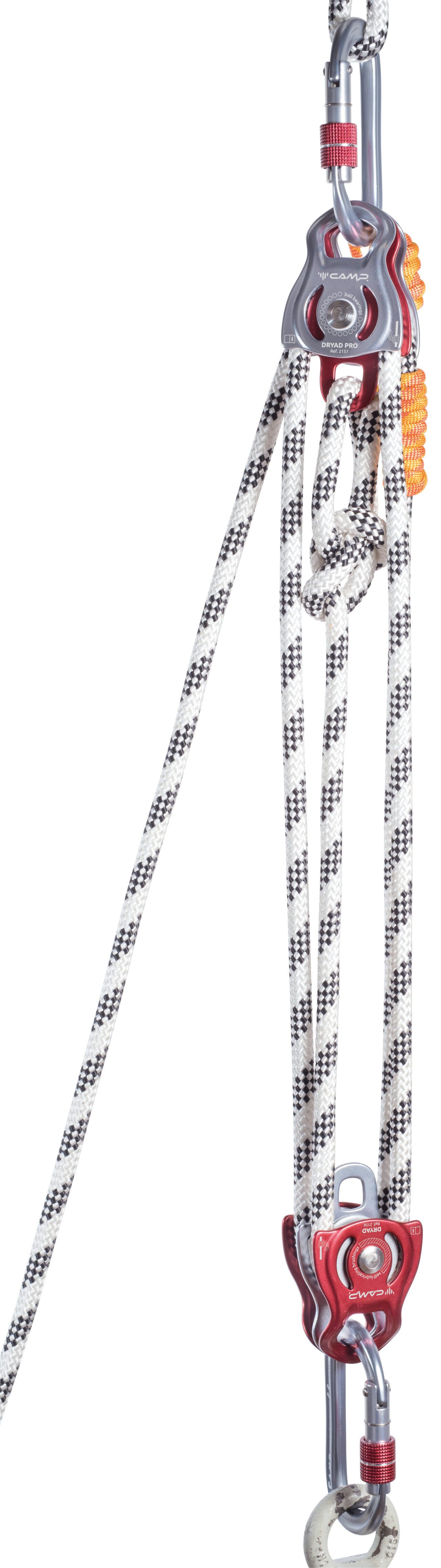

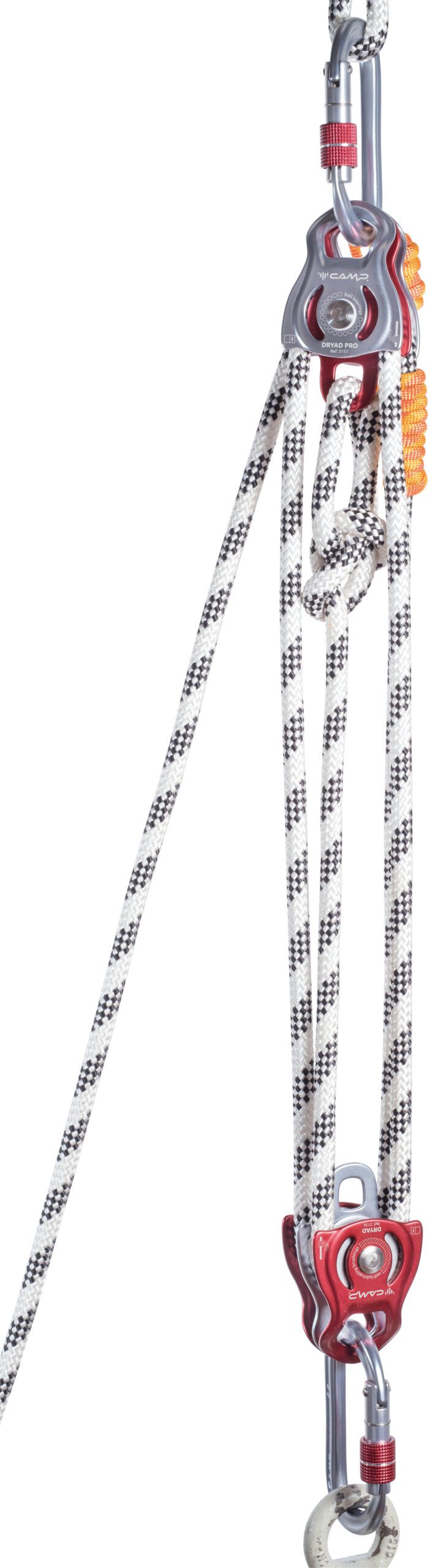

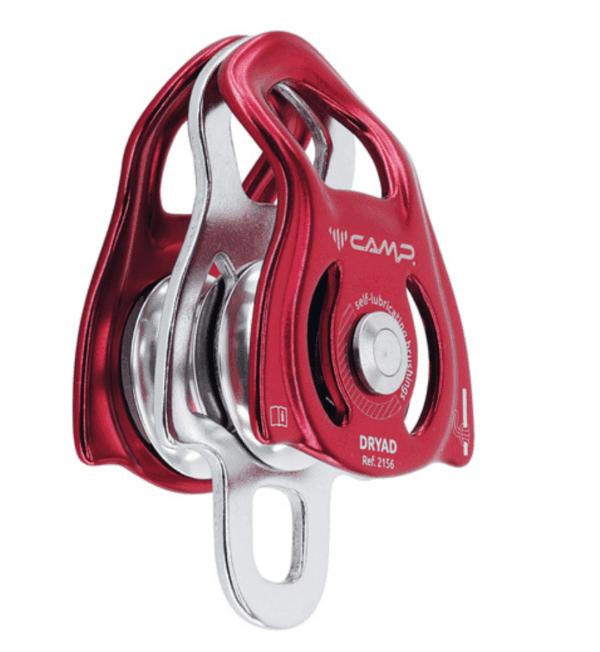

Compact double pulley for block-and-tackle systems.

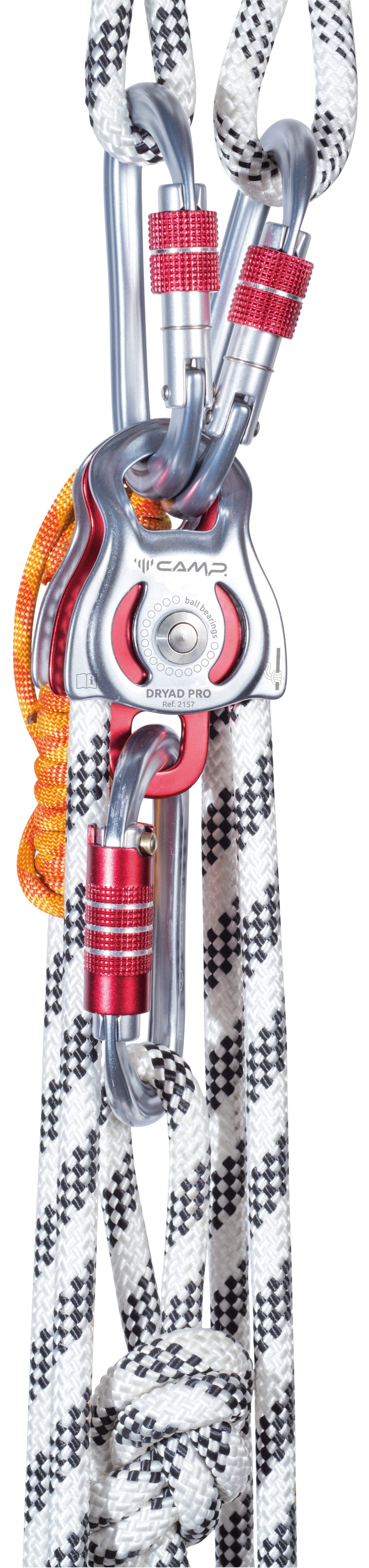

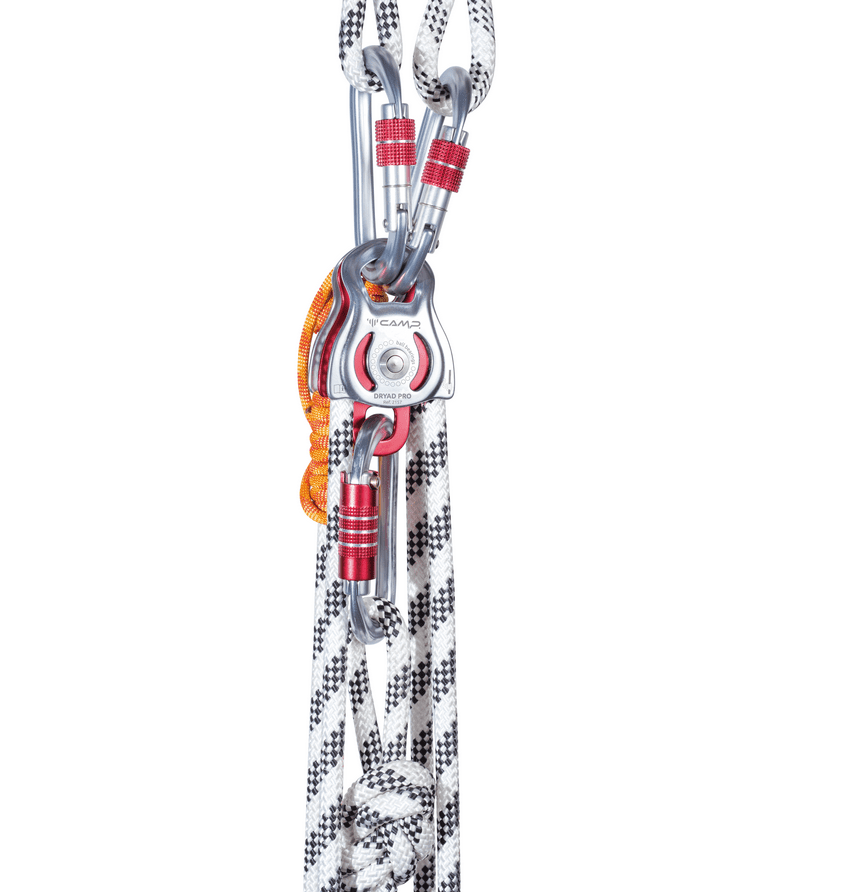

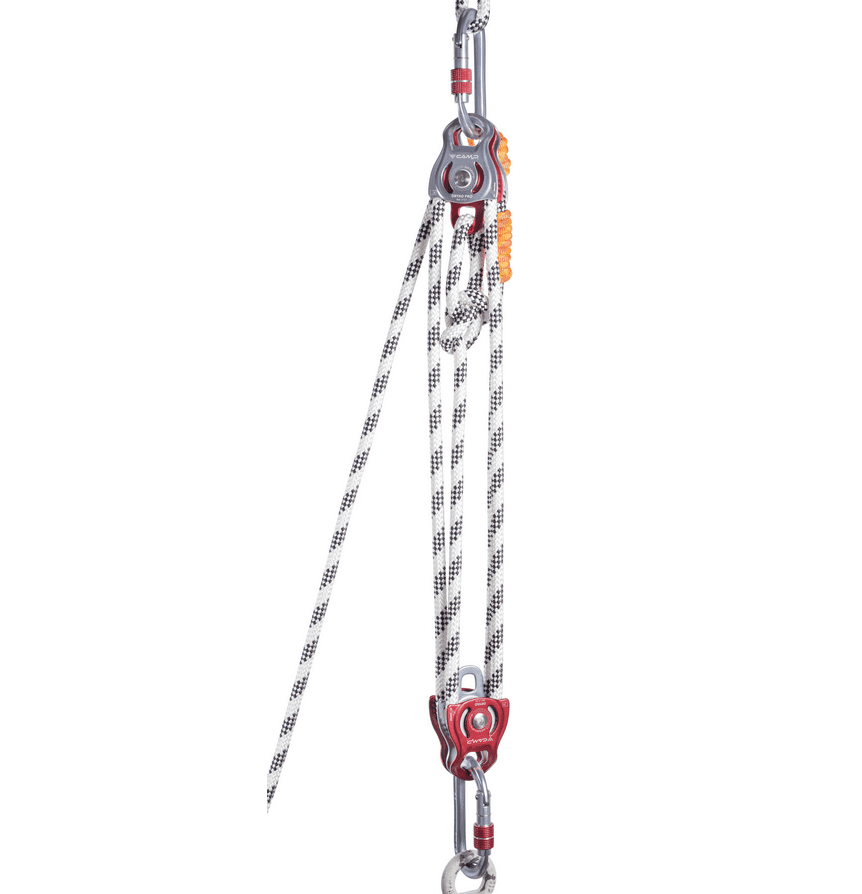

Compact double pulley for block-and-tackle systems. Main attachment point accommodates two carabiners and the becket features a bottom attachment point for linking components in a block-and-tackle system. For use with ropes up to 13 mm. Prusik minding, the self-locking knot can be installed on both sides of both wheels. Self-lubricated brass bushings are sufficient for light applications at low speed.

Requesting Brochure for...

711DRYAD

Address
SKU: 2156 Category: Tags: , , , Brand:

    Description

    Efficiency: 80%. Aluminum alloy body and wheels, stainless steel axle.

    Additional information

    Weight 0.374786 lbs

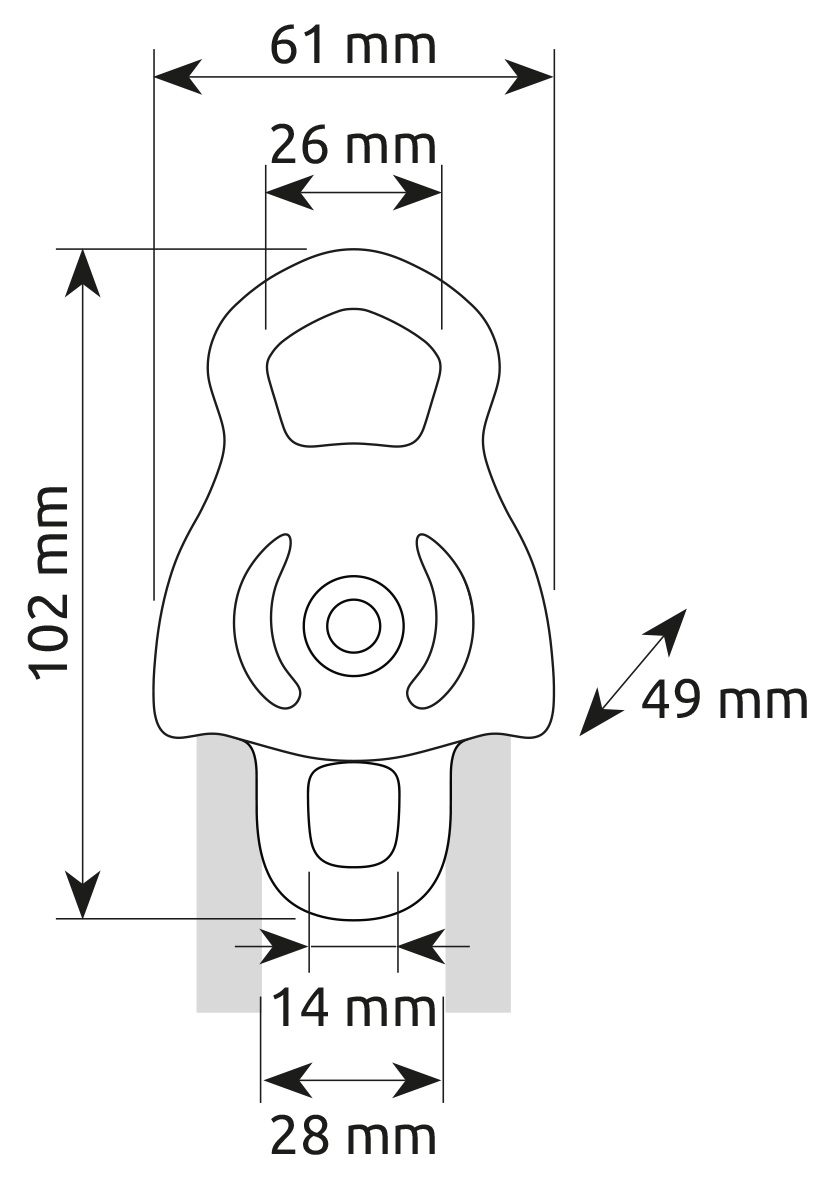

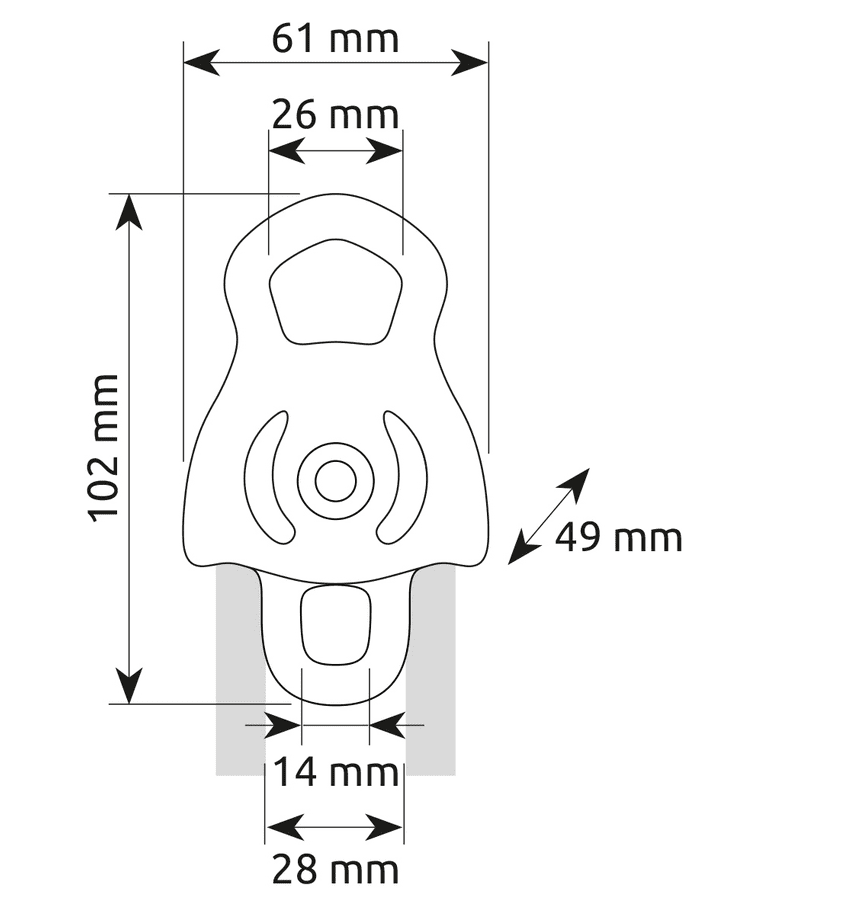

    Dimensions 5 × 4.5 × 2.5 in
    Inner sheave diameter

    28mm

    Rope diameter Max

    13mm

    Working load Max

    1 kN x 4 = 4 kN, 225 LBF x 4 = 900 LBF

    Breaking load

    24kN, 5396 LBF

    Sheave material

    Aluminum alloy
