Notch 1/2″ Rigging Block

$181.99

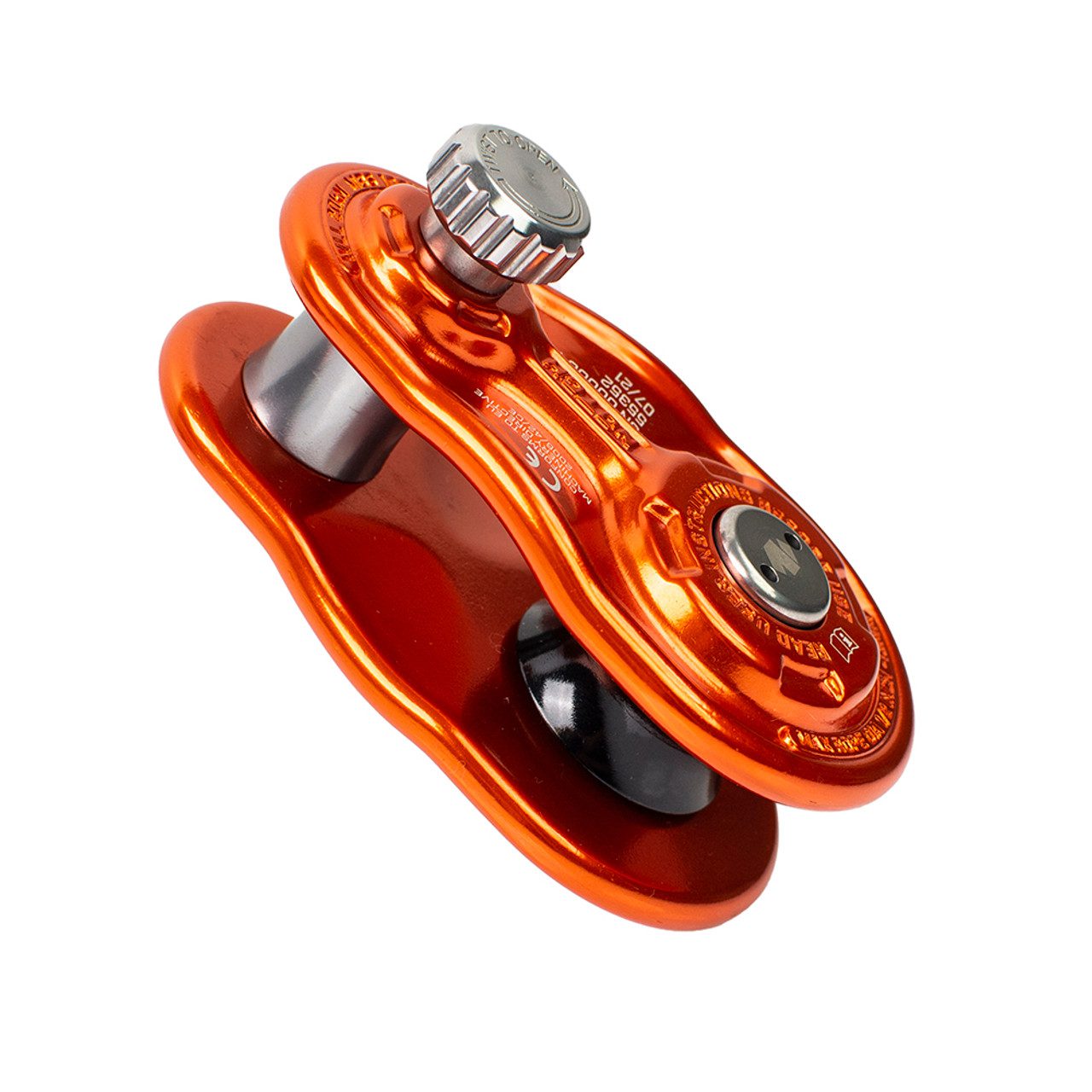

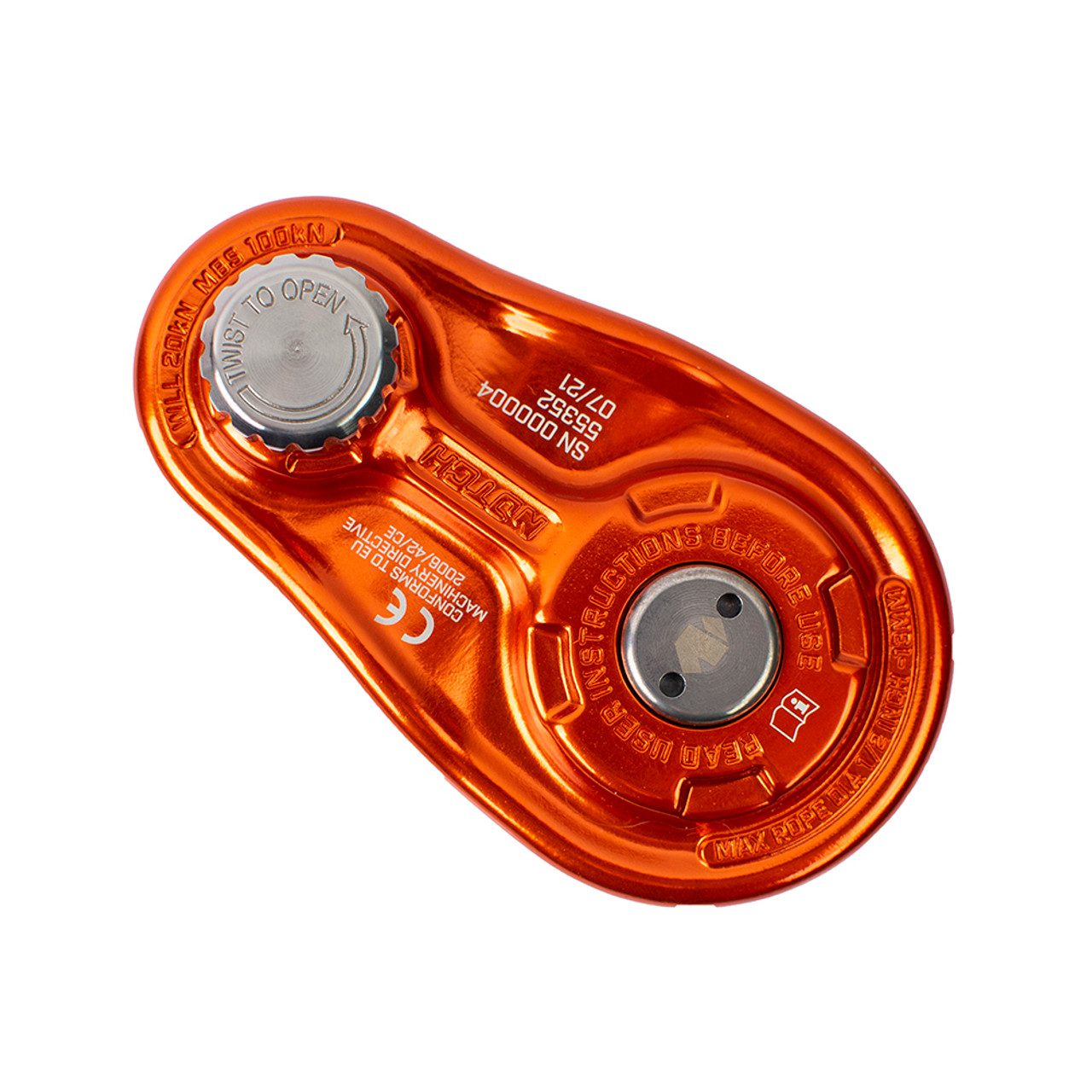

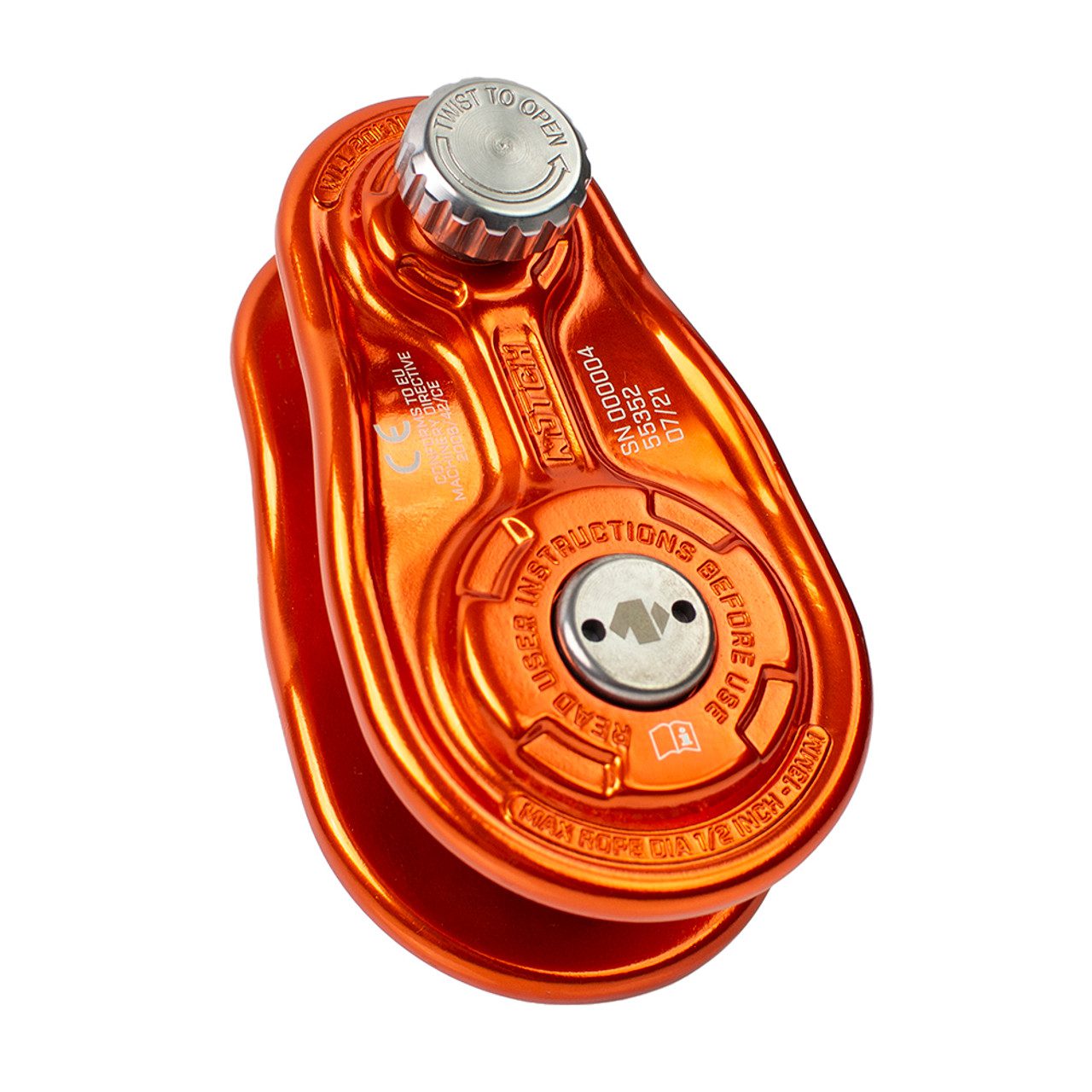

The Notch 1/2″ Rigging Block is a small sized lightweight arborist block accepts working lines up to 1/2” (13mm) diameter.

Requesting Brochure for...

4952Notch 1/2″ Rigging Block

Address
SKU: 55352 Category: Tags: , , Brand:

    Description

    – 20 kN WLL / 100 kN MBS

    – Hot forged aluminum side plates with rope friendly rounded cheeks

    – Precision CNC machined aluminum sheaves with wide bend radii

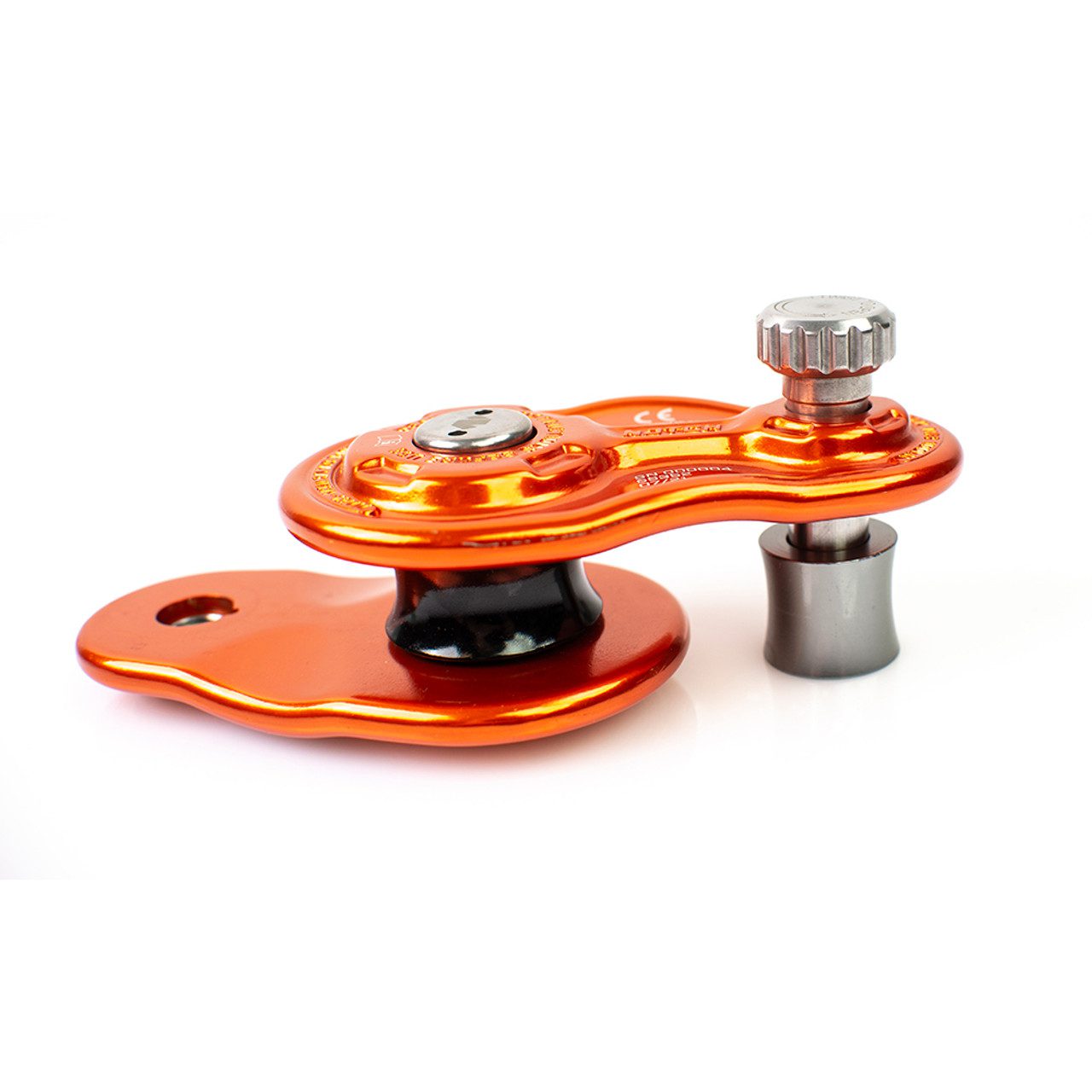

    – Low profile, secure, easy to-open captive screw pin lock

    – High wall, full diameter, improved anchor sling protection

    – Wide, concave upper sheave accepts 5/8” anchor slings

    – Flared side-plates reduce twisting in complex rigging scenarios

    Additional information

    Weight 1.3 lbs
    Dimensions 5.5 × 3.5 × 2.5 in
    WORKING LOAD LIMIT

    (WLL) 20 kN (4,496 lbs.)
    MBS

    100 kN (22,480 lbs.)
    MAX WORKING LINE DIAMETER

    1/2 in (13mm)
    MAX SLING DIAMETER

    5/8 in (16mm)
    UPPER SHEAVE DIAMETER

    .75 in (19mm)
    LOWER SHEAVE DIAMETER

    1.5 in (38mm)
    HEIGHT

    4.7 in (118mm)
    WIDTH

    2.7 in (68mm)
    WEIGHT

    1 lb. (.45kg)
    SIDEPLATE MATERIAL

    Aluminum
    SHEAVE MATERIAL

    Aluminum
    AXLE MATERIAL

    Stainless Steel
