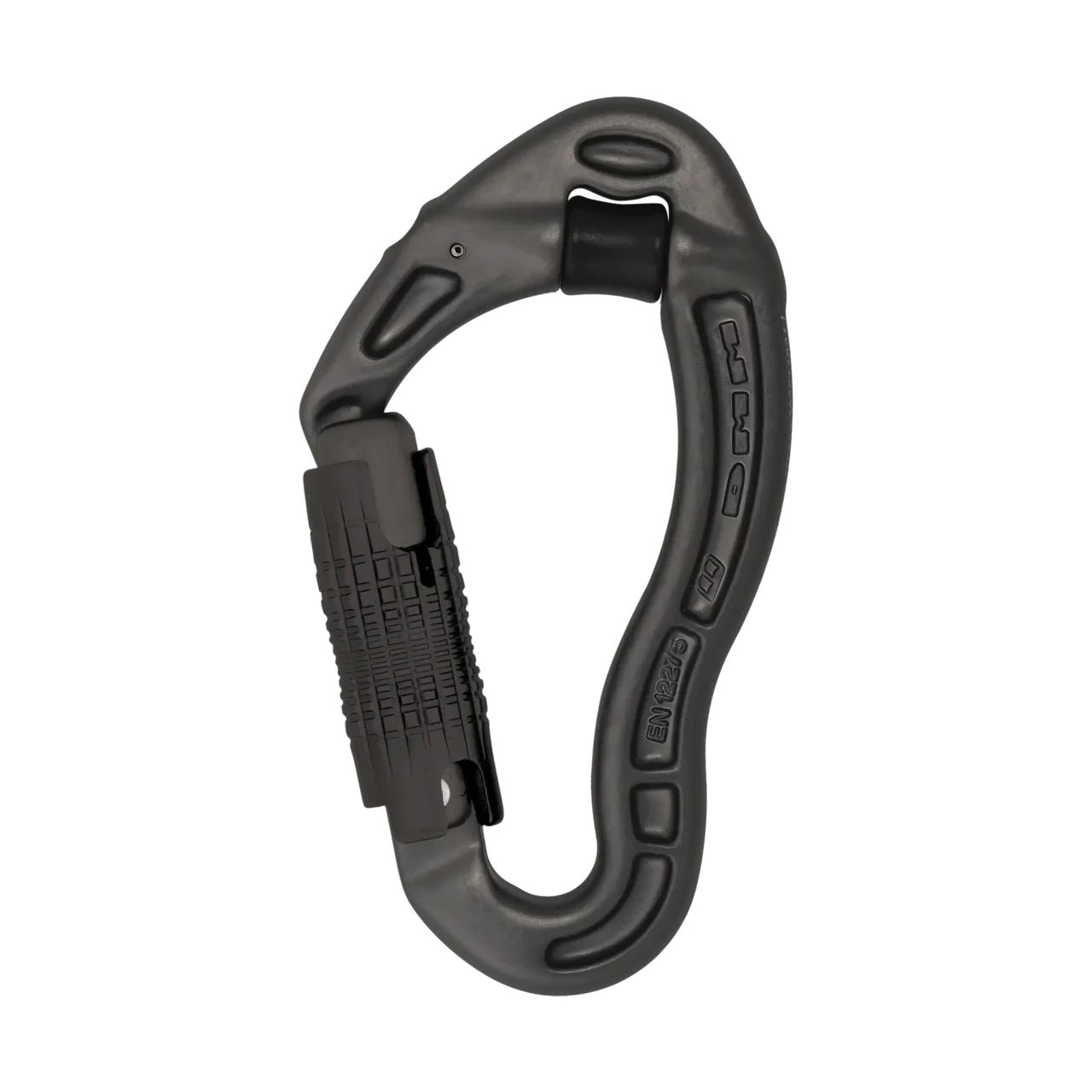

Revolver

$78.99

The Revolver is a ground breaking concept that has gained legendary status for industrial and recreational use.



Take the advantages of lightweight aluminium connectors and morph them with a roller wheel from a pulley and you’ve got an incredibly versatile piece of equipment: counterweight rescues, clipping tight lines, hauling chainsaws, deviating running ropes, etc. the list goes on.

For rock climbing, the Revolver’s integrated pulley wheel allows ropes to run more efficiently through the carabiner. Used at changes of direction on a route, it helps reduce rope drag.

The Revolver is also highly useful for creating lightweight hauling systems. If you need to haul kit, a partner, or perform crevasse rescue, the pulley wheel increases the efficiency and converting more of your energy into movement.

A locking gate gives the Revolver extra security.

Requesting Brochure for...

1033Revolver

Address
SKU: A277MG Category: Tags: , , , Brand:

    Description

    Keylock nose eliminates snagging

    This carabiner’s nose slots into a groove in the gate, allowing it to achieve full strength without a gate notch. This creates a clean internal profile that won’t catch on gear, bolts or slings, giving easier clipping and removal from systems.

    I-Beam construction for optimum strength to weight ratio

    I-Beam construction techniques allow carabiners to be lighter without compromising strength. This is achieved through hot forging, a process which allows metal to be made into complex shapes that improve functionality.

    Integrated pulley wheel for reducing friction

    The Revolver’s pulley wheel reduces friction and increases efficiency of ropes running over it, this reduces rope drag on complex pitches. The Revolver can also be used to create mechanical advantage in a lightweight personal hauling system, making it indispensable as part of a climber’s personal rescue kit. The pulley wheel is functional with loads up to 11kN.

    Locksafe

    Auto-locking gate requiring three distinct actions to open.

    Additional information

    Weight 0.154324 lbs
    Dimensions 2.3622 × 4.29134 × 0.65 in
    Product Dimensions

    60 x 109mm
    MBS (Major Axis)

    24kN
    MBS (Minor Axis)

    8kN
    MBS (Gate Open)

    8kN
    Gate Opening

    15mm
    Certification

    EN362:2004 B
    EN12275:2013 B
    UIAA121:2009
