DMM Rigger
$133.49 – $167.99
An evolution of the Triple Attachment Pulley first brought to the market 10 years ago by DMM.
The hot forged swing-cheek pulley with an in-built three hole rigging plate allows creative configurations and enables direct connection to textile components to save on weight and complication. The Rigger Pulleys feature a new axle construction achieved by using highly accurate CNC operations, which produces a stronger axle/side plate interface for increased longevity.
Bolstered connection areas lead to high configured strengths. The newly developed side plates combined with the axle construction means a hugely increased MBS to 40kN. The side plates boast increased fairleads and tuned angles for more efficient prusik minding.

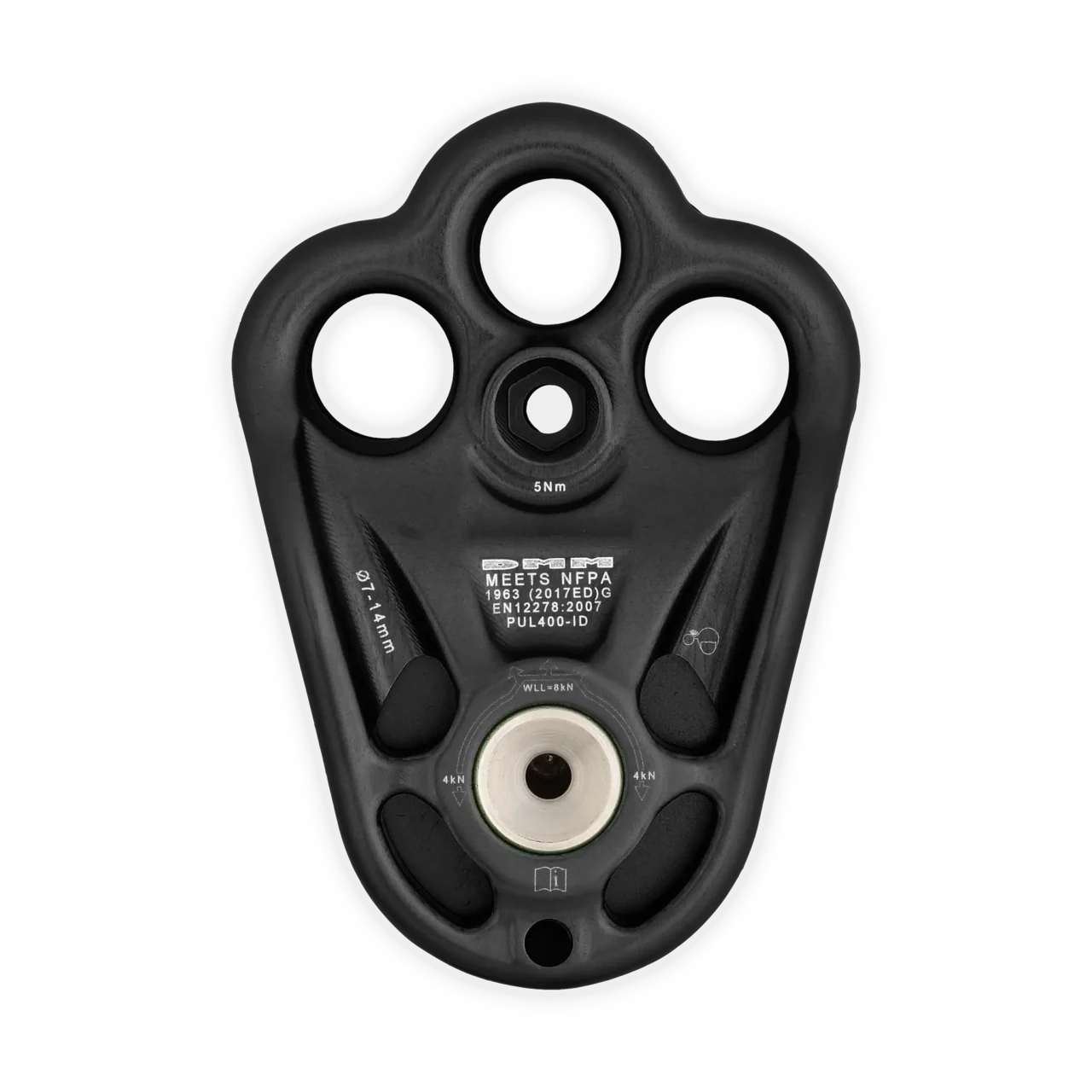

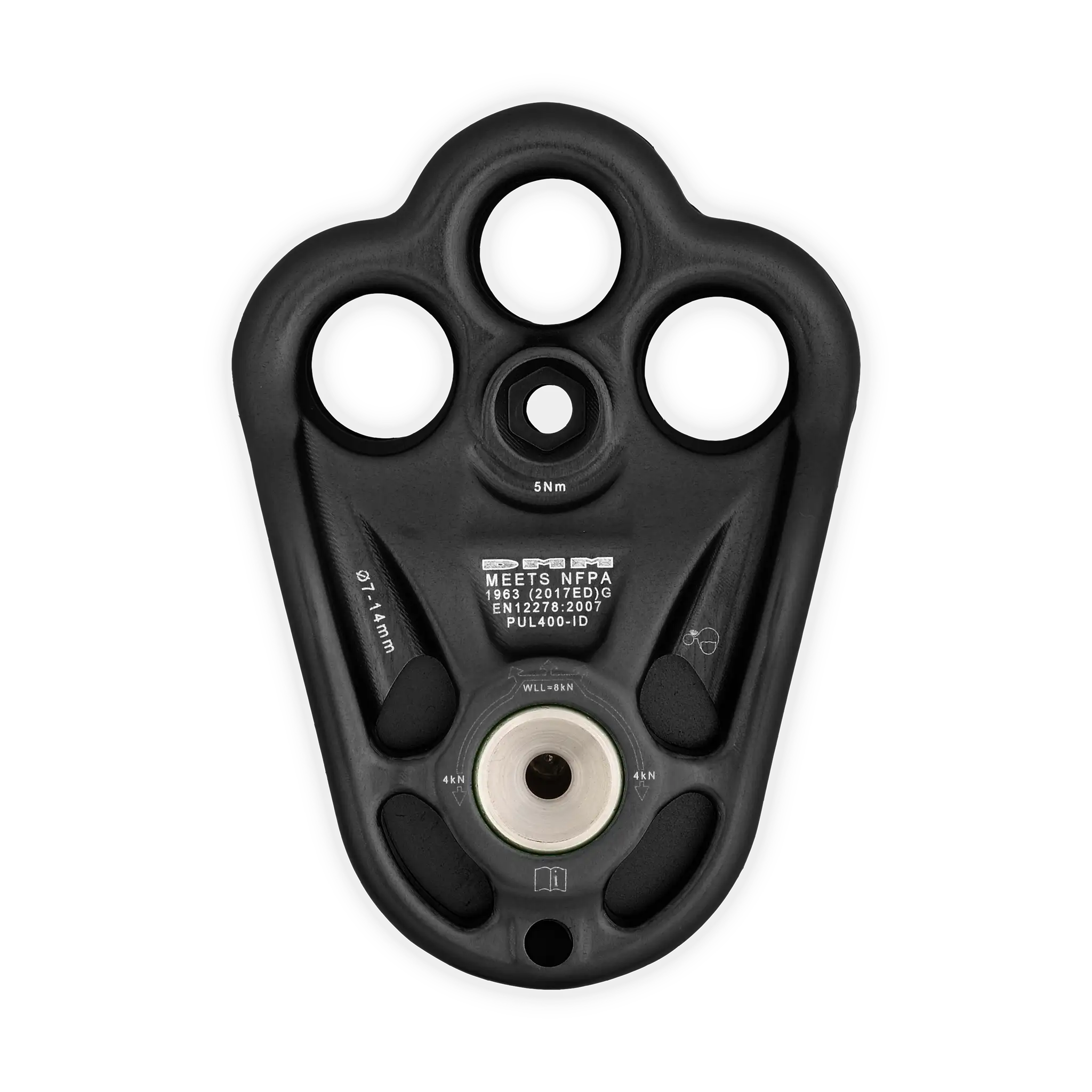

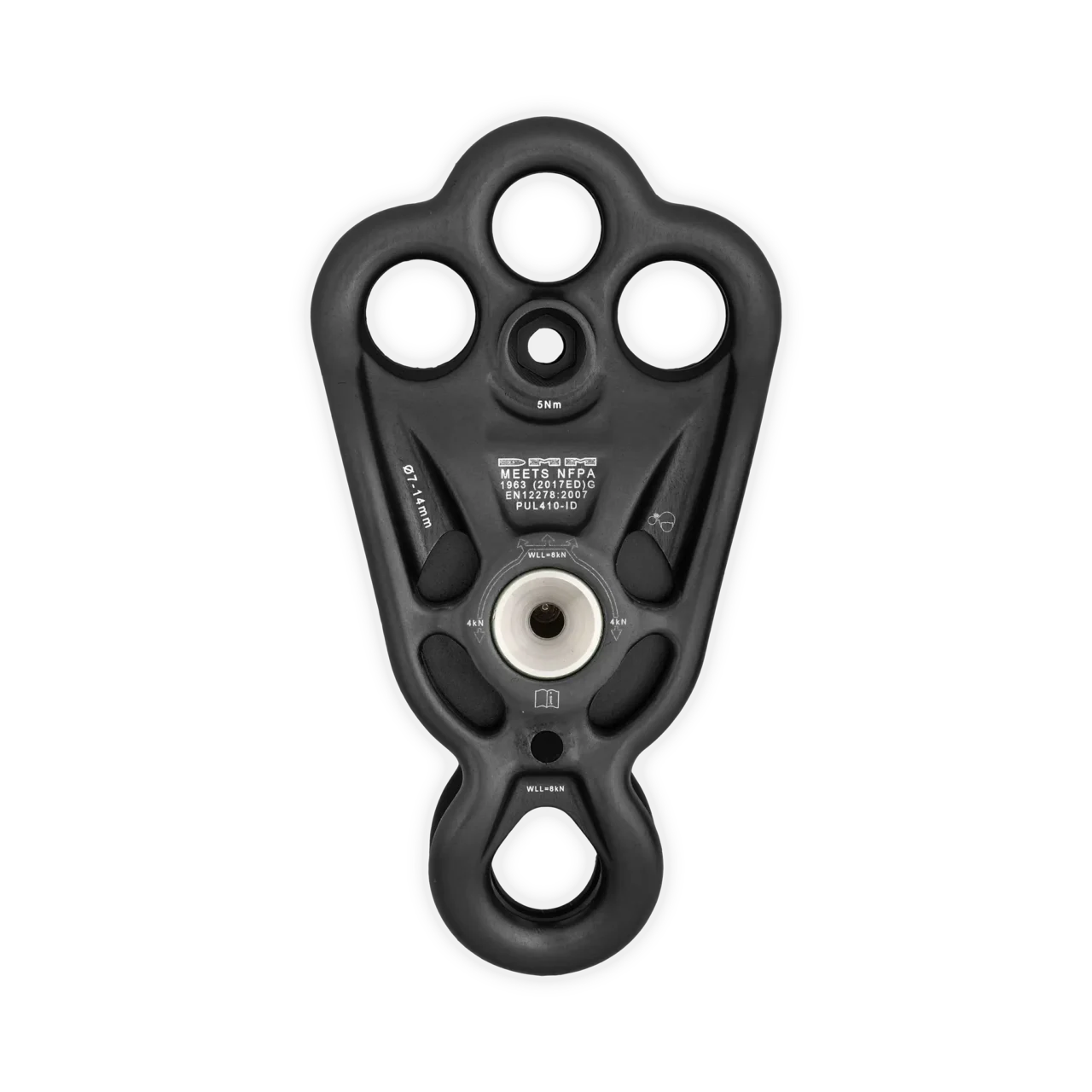

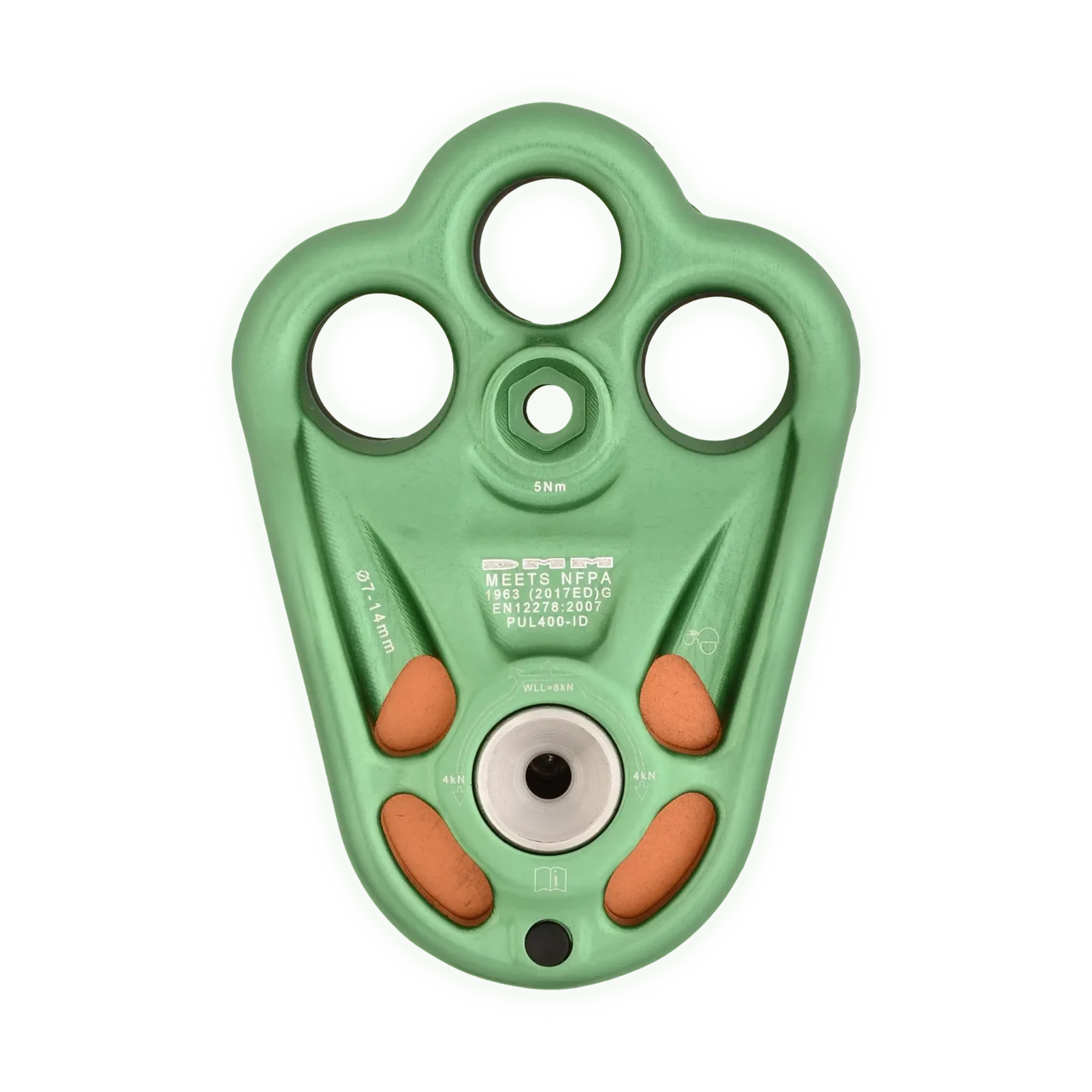

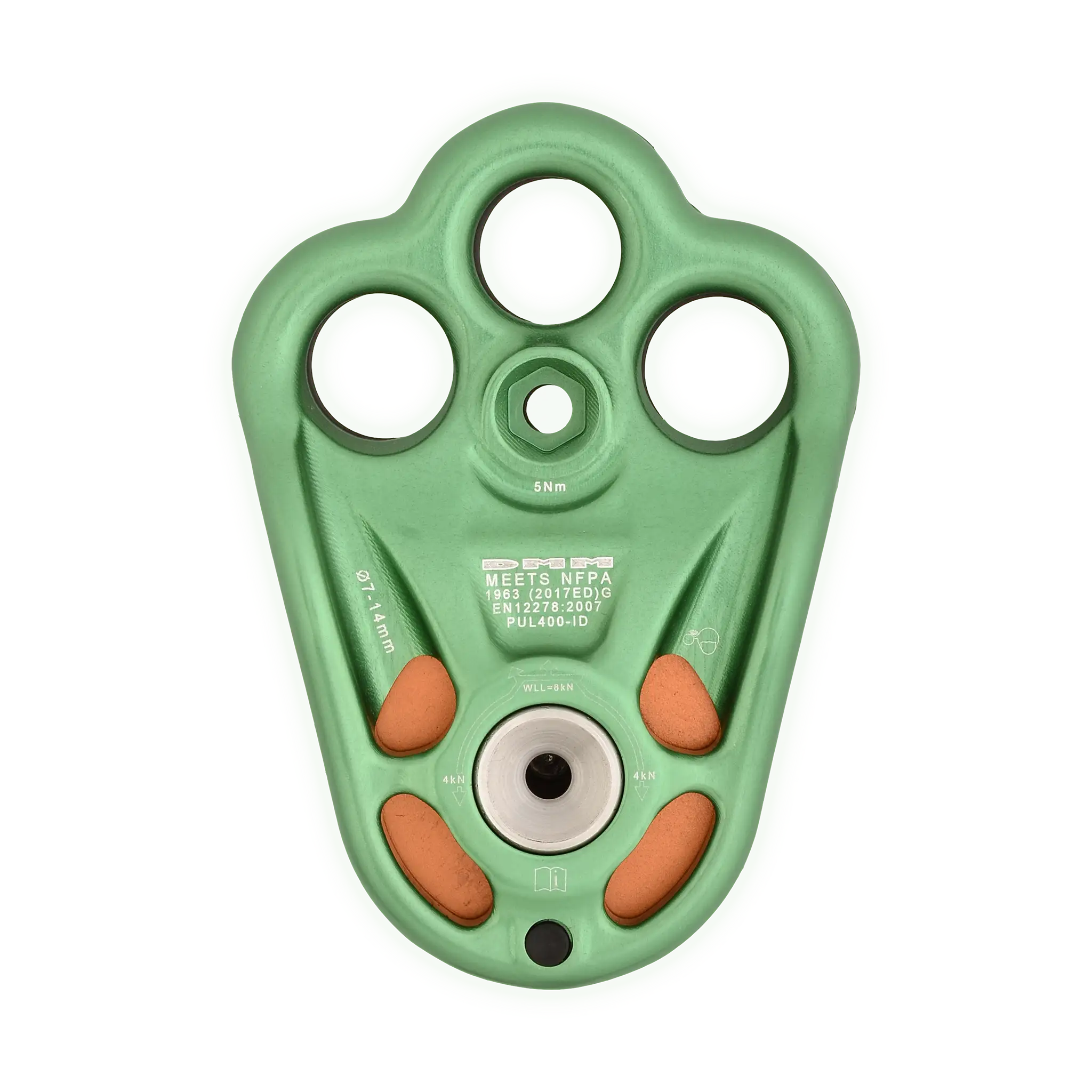

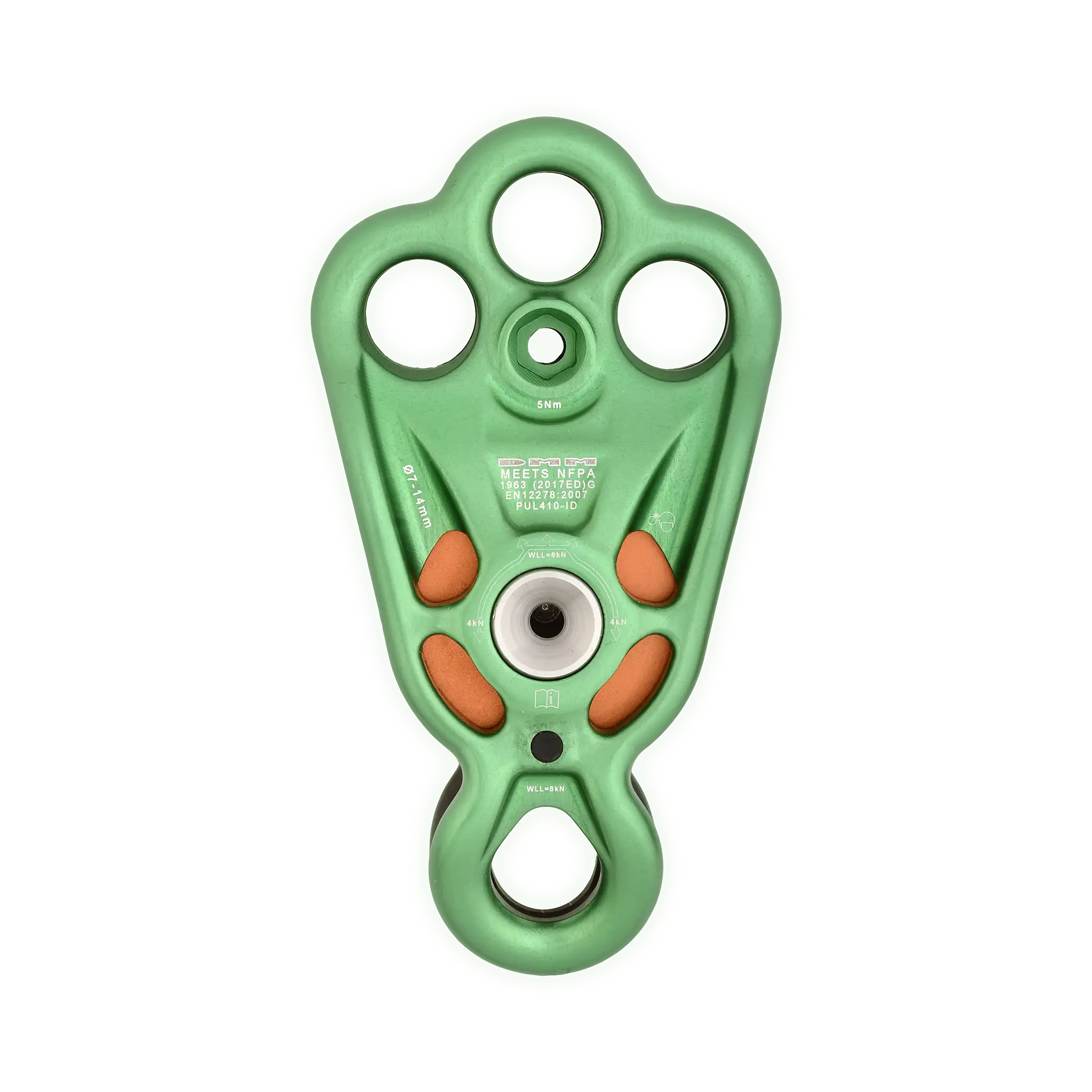

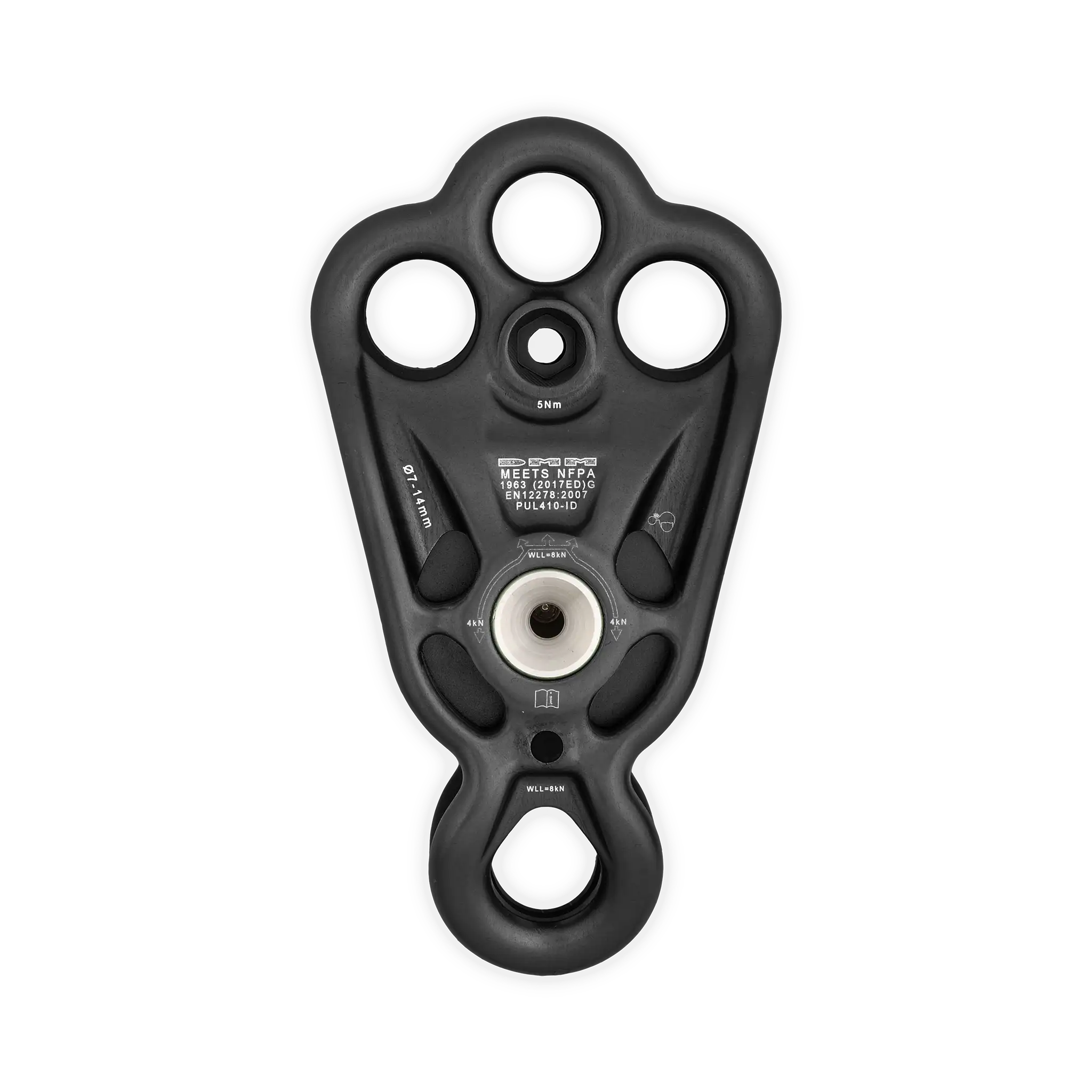

The Rigger Pulley comes in two versions; the Rigger and the Rigger Becket. Both feature high efficiency roller bearings.
Requesting Brochure for...
1293DMM Rigger
-
Description
-
Additional information
Description
– Ultra-high strength pulley side plates
– High efficiency roller bearings
– Hollow axle for reduced weight
– Increased rope-bearing cross-section for textile attachments to the attachment holes
– Same sheave as previous Triple Attachment Pulley
– New axle design to increase robustness of the axle/ nut to side plate interface
– Can be used as rig plate with or without sheave
– Optional M5 nut and bolt for locking side plates together
Spare parts info.
The locking hardware is non-structural and can be purchased separately. We recommend:
– M5 x 16mm countersunk screw A2 stainless.
– M5 Nyloc nut A2 stainless.
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Style | Standard, Becket |
| Color | Green/Grey, Matt Grey |
| MBS | 40kN |
| WLL | 8kN |
| Dimensions | 68 x 94mm, 68 x 124mm |
| Rope Diameter | 7-14mm |
| Sheave Diameter | 42mm |
| Certification | EN12278:2007 |
