$167.99

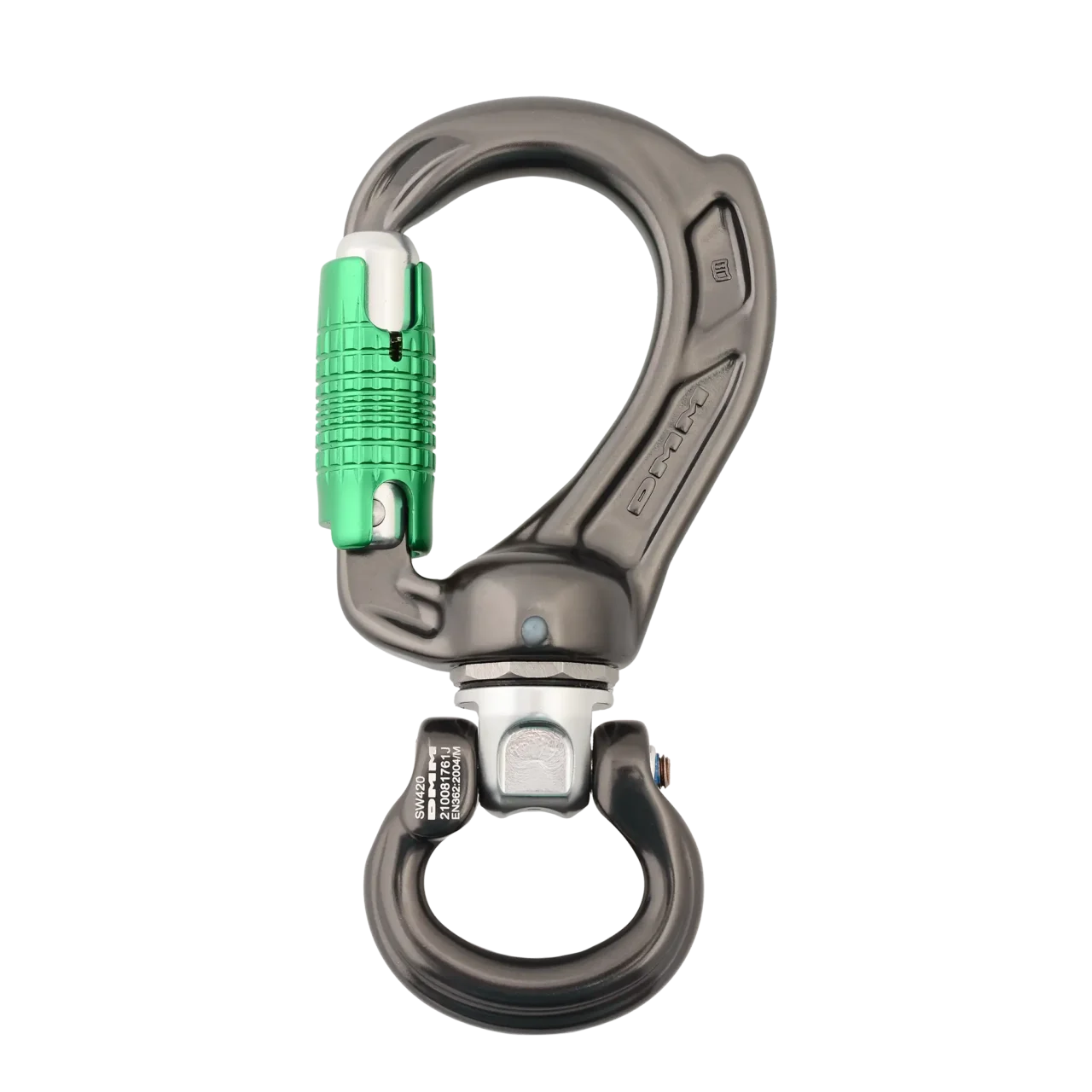

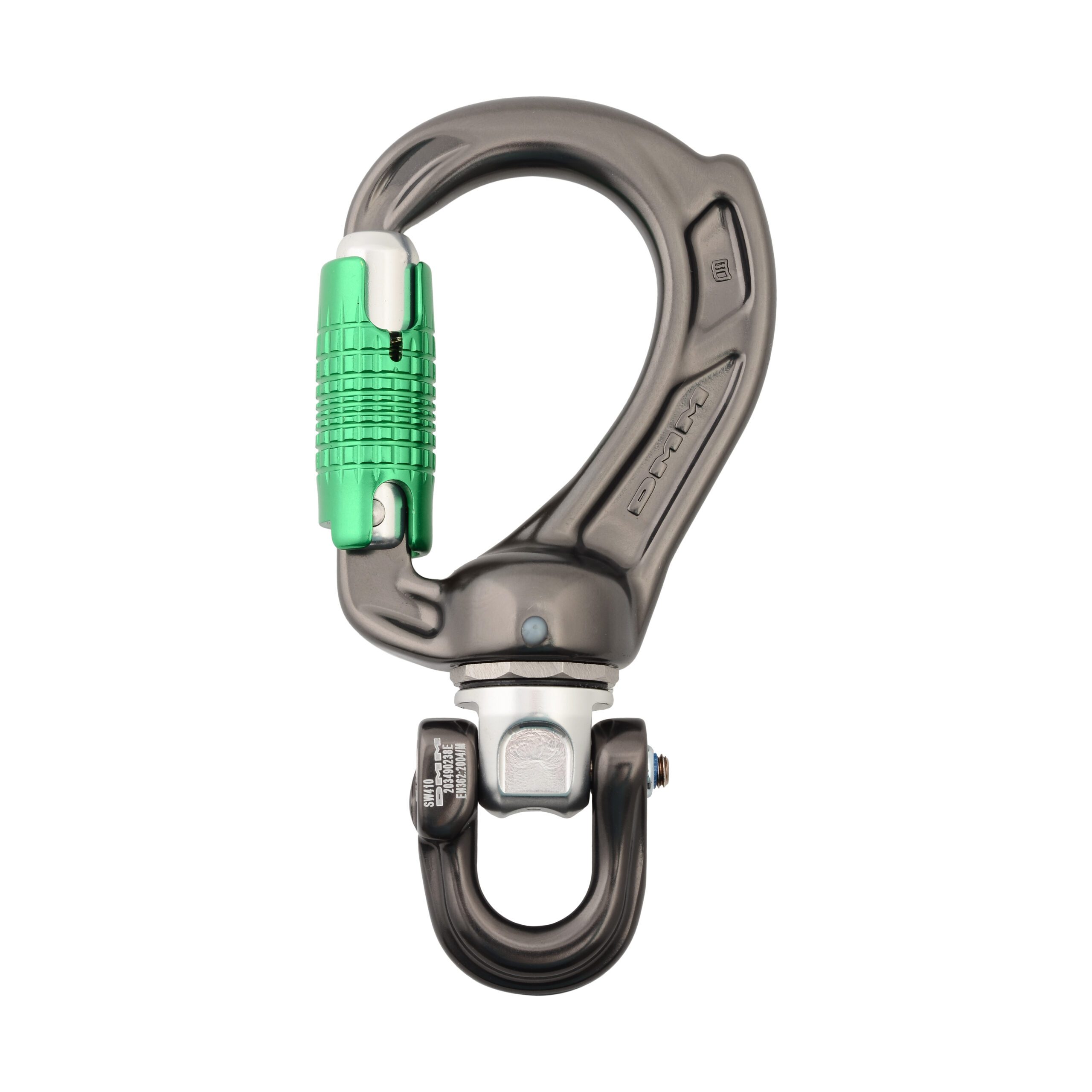

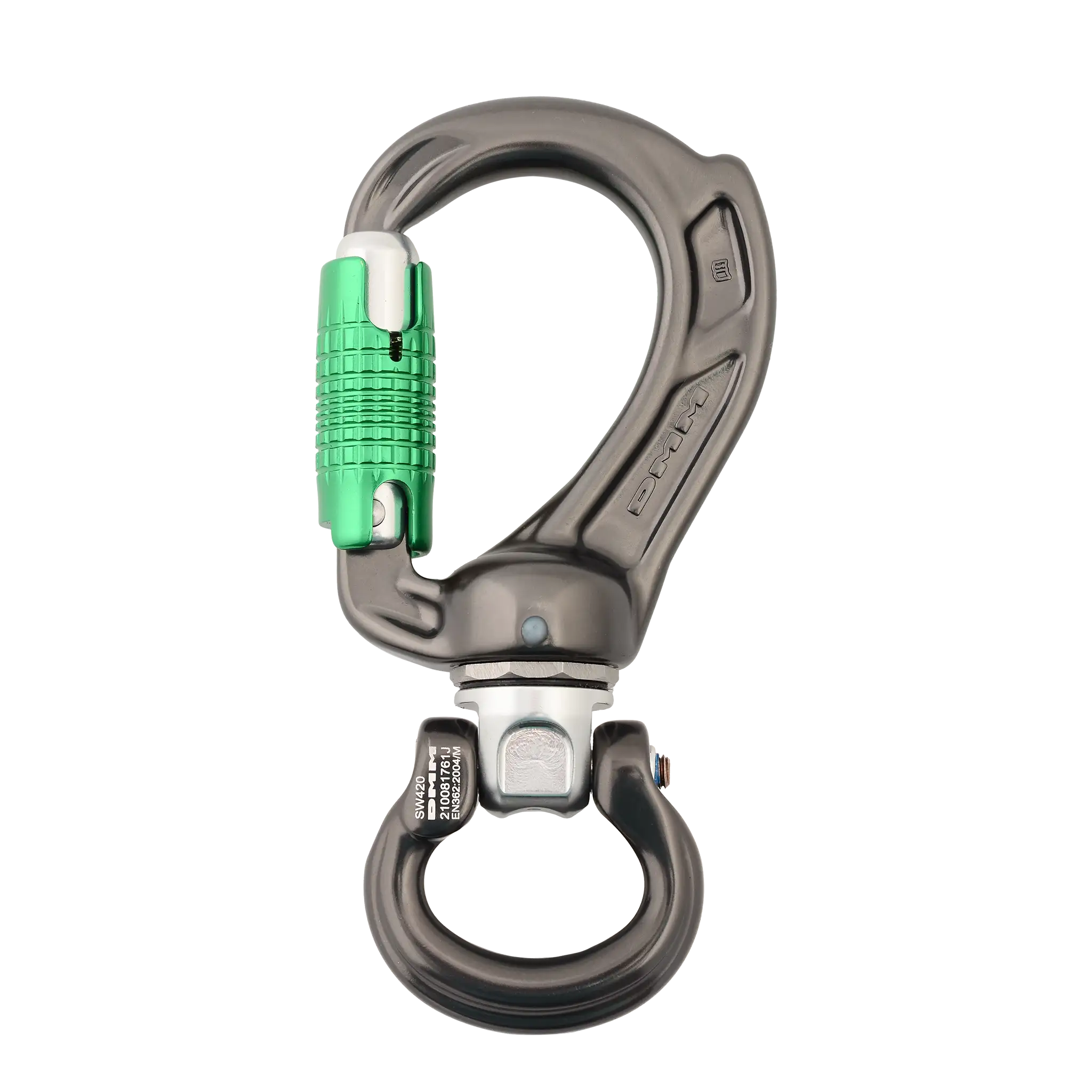

The Director Swivel Boss features a textile friendly, configurable eye, an extra short gate, a generous curve in the loading area and healthy gate openings. They can be retro fitted onto pre-stitched or swaged lanyard components or used in conjunction with DMM Linkits to form super short connectable systems. When used in conjunction with the DMM Director Yoke, it forms the ultimate swivelling, pivoting double connector.
Choose between a D shape or Bow shape shackle depending on attachment requirements.
– Compact, lightweight and versatile.
– Designed to ensure major axis loading.
– “Rhino horn” ensures device remains in loading area.
– Incorporates DMM’s shortest gate.
– Low overall length well suited to restricted height scenarios.
– Compatible with existing range of DMM Linkit lightweight rigging components.
– Patented features.
– Hot forged and CNC machined.
Auto-locking gate requiring three distinct actions to open.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Gate Type | Locksafe |
| Product Type | Bow, D |
| Product Dimensions | 64 x 130mm |
| MBS (Major Axis) | 26kN |
| MBS (Gate Open) | 9kN |
| Gate Opening | 17mm |
| Certification | EN12275:2013 T |
