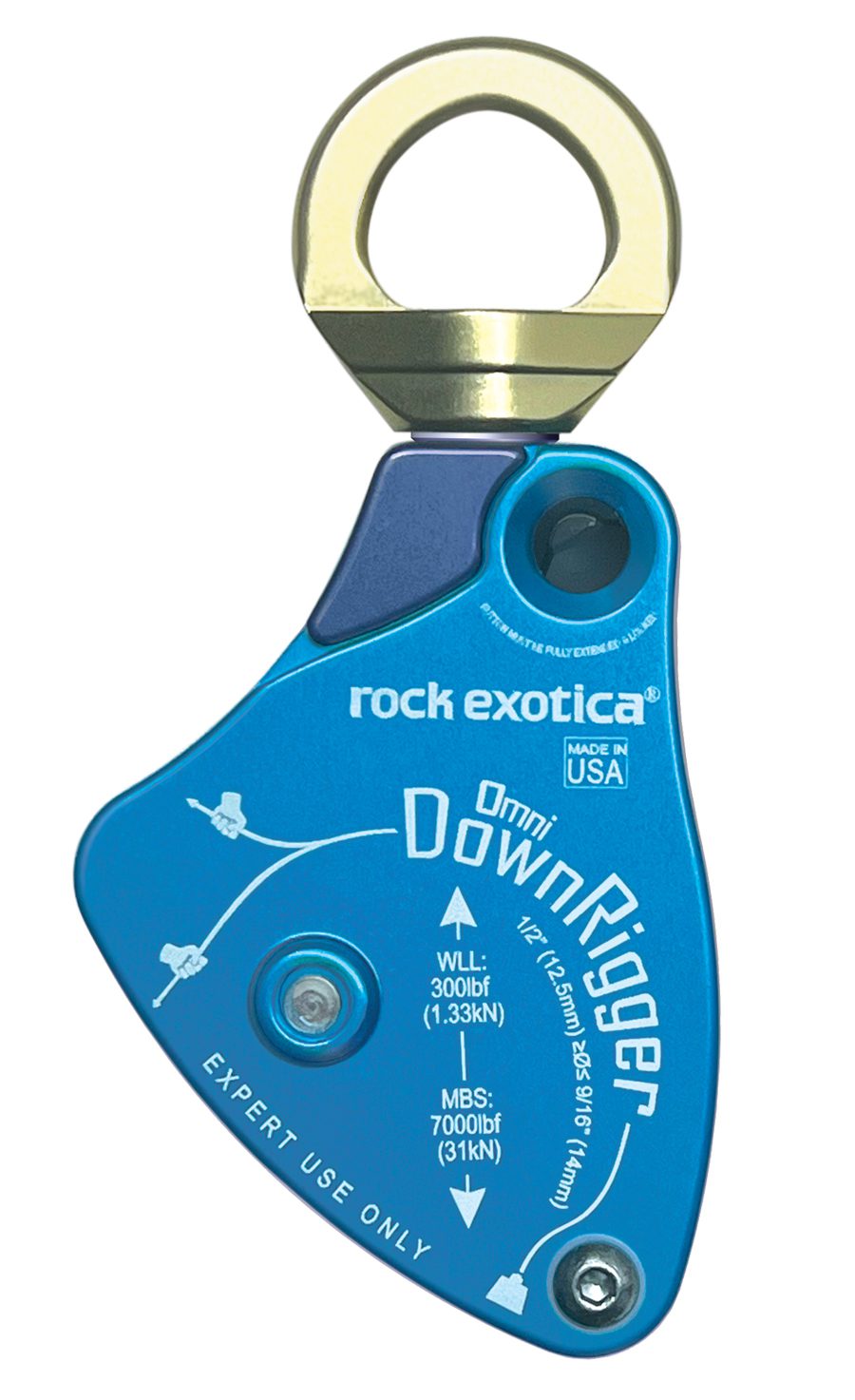

DownRigger

Description

The DownRigger must be free to align with the
load, any restraint is dangerous.
Breakage Hazard: Do not let an object in between the sideplate and never rig your system so that the DownRigger is forced against something that could break or open the sideplate, allowing the rope to fall out.

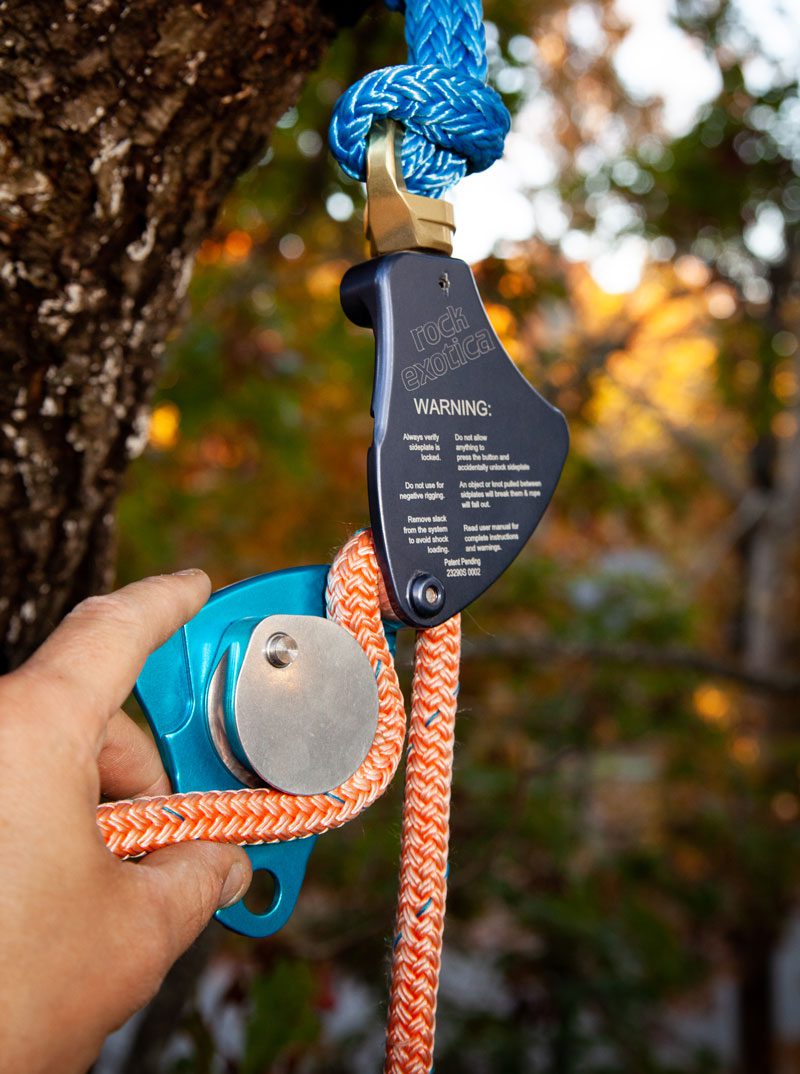

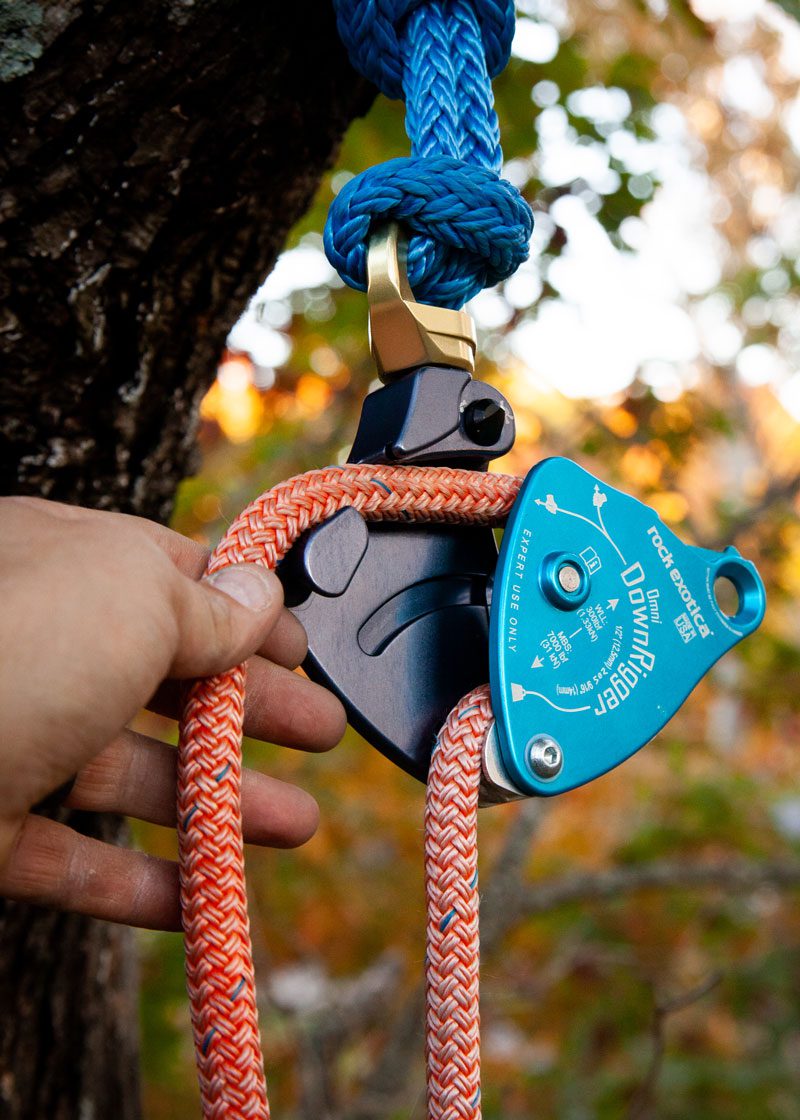

To Open Sideplate: Depress the button & rotate sideplate counterclockwise. It should stop at the 2nd button detent. In this position the strength is severely reduced, but the rope will not fall out as easily as it can in the fully open position. To fully open, just depress the button again & rotate.

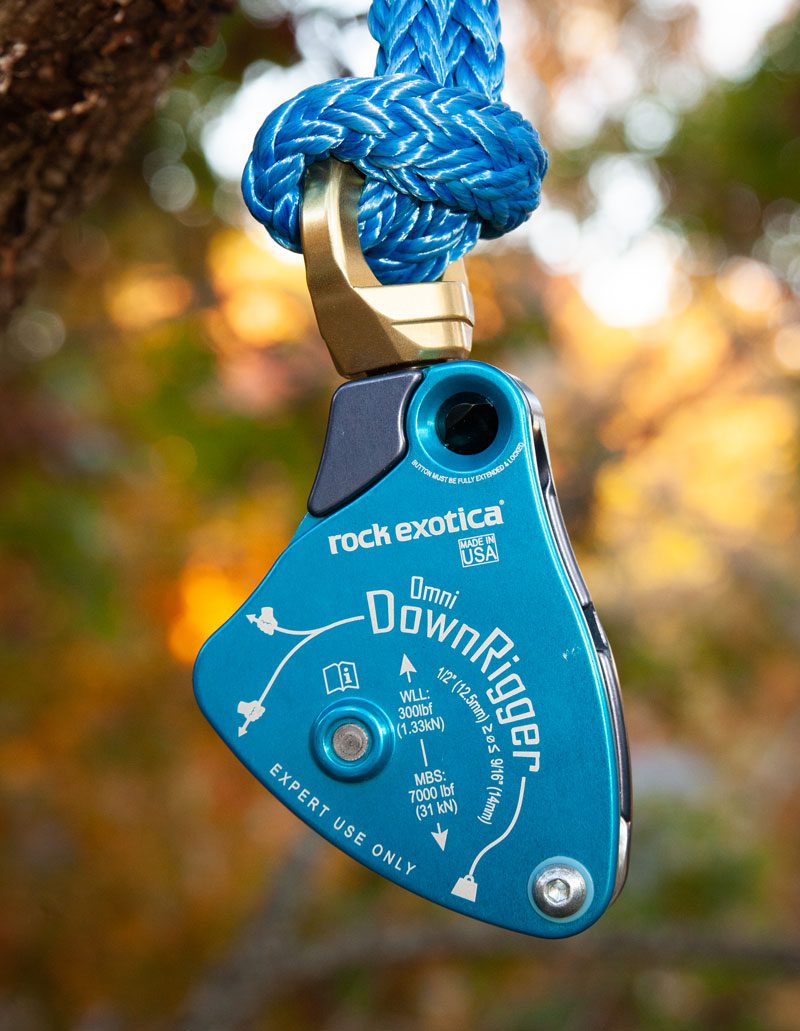

To Close Sideplate: Rotate sideplate past the 2nd detent to the fully closed position. Verify the button extends fully through the hole & test that the sideplate is really locked & secure. You should be able to close it one-handed, but the components will last longer if you depress the button a little to help it when closing.

Compatibility: Verify compatiblity with other components of your system. An incompatible connection can cause accidental disconnection, breakage, or affect the safety function of another piece of equipment. The downrigger attachment holes are compatible with rope, slings or connectors. Inspect connection points for sharp edges before using a textile connection such as a sling or rope. You must verify the suitability of this equipment for use in your application with regard to applicable governmental regulations and other standards on occupational safety.

Pinching Hazard: Rope travelling through the DownRigger can suck in hair, fingers, clothing, etc., causing injury & jamming the device. Guard against this. The DownRigger must only be used in a straight pull. It must NEVER be subjected to a bending force.

Limitations On Use: It is impossible to imagine all the ways this equipment can be misused. It must be used only for the specific purpose it was designed for; it must not be used for any other. Only loading shown in the “OK” box is allowed.

Inspection Before & After Each Use: Check all parts for cracks, deformation, corrosion, wear, legibility of product markings, etc. Verify that the swivel top rotates normally & the axle screw has not loosened. Verify smooth rotation of the sheave, and the security and rigidity of the axle. Verify that the sideplate rotates normally & the button operates properly. The button must not be impaired by dirt, ice, corrosion, etc. Verify smooth rotation of the sheave.

Inspection During Use: Regularly inspect and monitor your system, confirming your carabiners are locked and positioned properly, with respect to the DownRigger. Visually confirm the sideplate is fully closed and the locking button is fully extended.

Thorough and specific training is absolutely
essential before use. Being at height is dangerous and it is up to you to reduce the risks as much as possible – but the risks can never be eliminated. There are many ways to misuse this
equipment, too many to list or imagine. You must personally understand and assume all risks and responsibilities of using this equipment. If you cannot or do not want to do this, do not use this equipment.

The integrity of this equipment is essential to
your safety. Retire from Service & Destroy if the
Equipment:
1. Is overloaded
2. Does not pass inspection or there is any doubt
about its safety.
3. Is misused, altered, damaged, exposed to
harmful chemicals, etc.
4. The button does not extend completely.

Do not return to service until the unit in question has been inspected and approved for use in writing by a competent person that is authorized to do so. Contact the manufacturer if you have any doubts or concerns.

Lifetime: Unlimited for metal products, but will often be much less depending on conditions and frequency of use; it could even be a single use in some cases. Environmental Factors: Moisture, ice, salt, sand, snow, chemicals and other factors can prevent proper operation or can greatly accelerate wear.

Maintenance & Storage: Clean if necessary with fresh water, then dry, or allow to dry away from direct heat. Light surface corrosion may be removed with a wire brush (no power tools). Retire if corrosion is heavy. A light lubricant may be applied. Store and transport in a dry place away from extremes of heat and cold and avoid exposure to chemicals. The button may be cleaned by holding it upside down & spraying a light lubricant into it while operating it.

Operating Temperature: 120°F (49°C) – 0°F (-18°C)

Environment of use: not intended for use in
explosive environment.

Principal Material: Aluminum Alloy & Stainless
Steel

Repairs or Modifications to Equipment Are only allowed by the manufacturer or those authorized in writing by the manufacturer.

Detailed Inspection: In addition to inspection before, during and after each use, a detailed inspection by a competent inspector must be done at least every 12 months or more frequently depending on amount and type of use. Make a copy of these instructions and use one as the permanent inspection record and keep the other with the equipment. It is best to issue new gear to each user so they know its entire history.

Rock Exotica 3-year guarantee: If your Rock Exotica product has a defect due to workmanship or materials please contact us for warranty service. This warranty does not cover damages caused by improper care, improper use, alterations and modifications, accidental damage or the natural breakdown of material over extended use and time. If re-sold outside the original country of destination, the re-seller must provide instructions for use, maintenance, periodic examination and for repair in the language of the country in which this product is to be used.
