CAMP

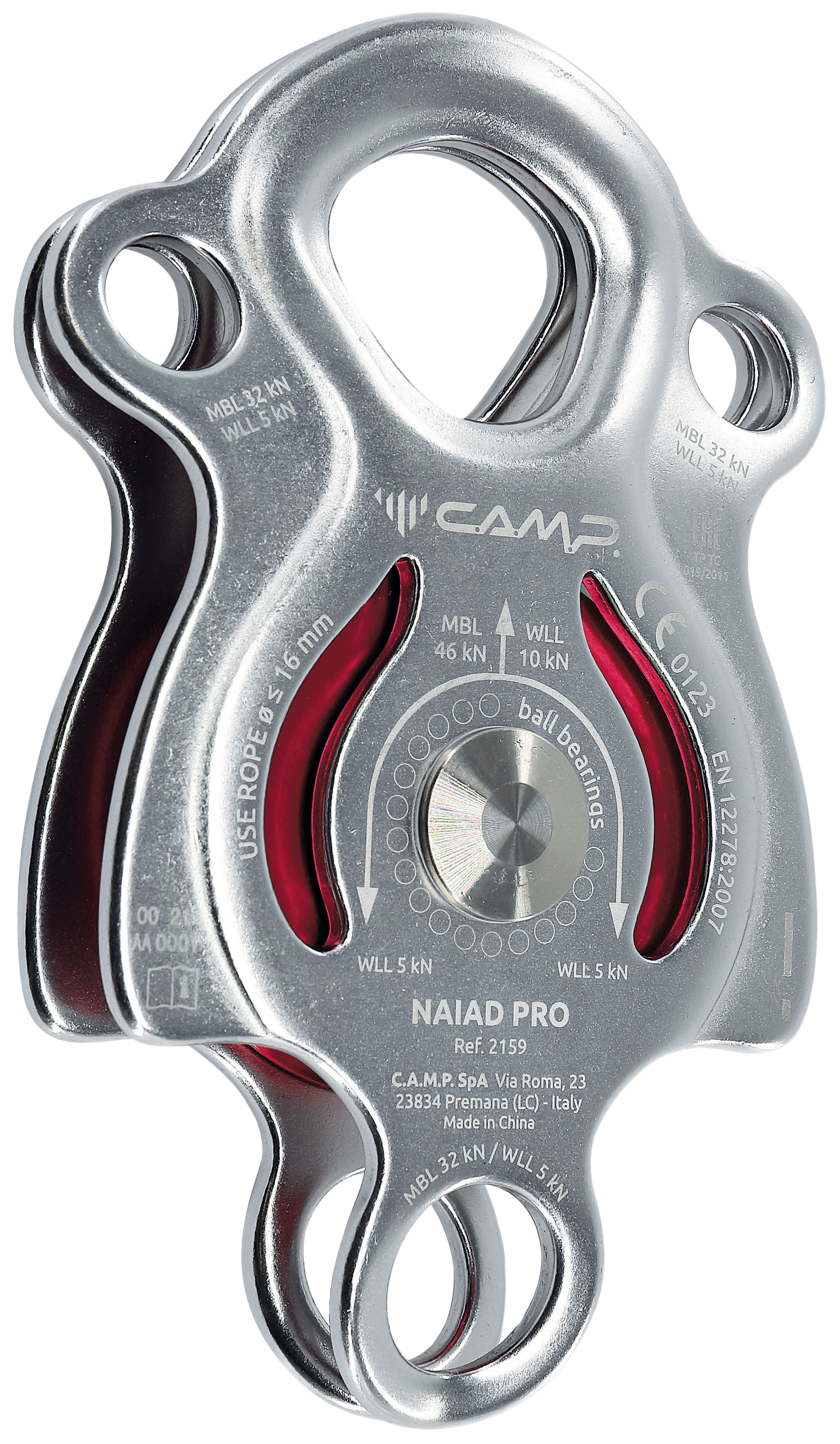

NAIAD PRO

$69.95

A high strength multifunctional pulley for heavy hauling and complex operations.



A high strength multifunctional pulley for heavy hauling and complex operations. Features a large wheel, a main attachment point that accommodates three carabiners, a large bottom attachment point, and two secondary attachment points on the sides for linking, positioning and attaching progress capture systems. For use with ropes up to 16 mm. Prusik minding, the self-locking knot can be installed on both sides. Sealed ball bearings for high efficiency and intensive use at high speed.

Requesting Brochure for...

737NAIAD PRO

Address
SKU: 2159 Category: Tags: , , , Brand:

    Description

    Efficiency: 97%. Aluminum alloy body and wheel, stainless steel axle.

    Additional information

    Weight 0.6625 lbs
    Dimensions 7 × 4.5 × 2.5 in
    Inner sheave diameter

    49mm

    Rope diameter Max

    16mm

    Working load Max

    5 kN x 2 = 10 kN, 1124 LBF x 2 = 2248 LBF

    Breaking load

    46 kN, 103151 LBF

    Sheave material

    Aluminum alloy
