Sidewinder
DMM

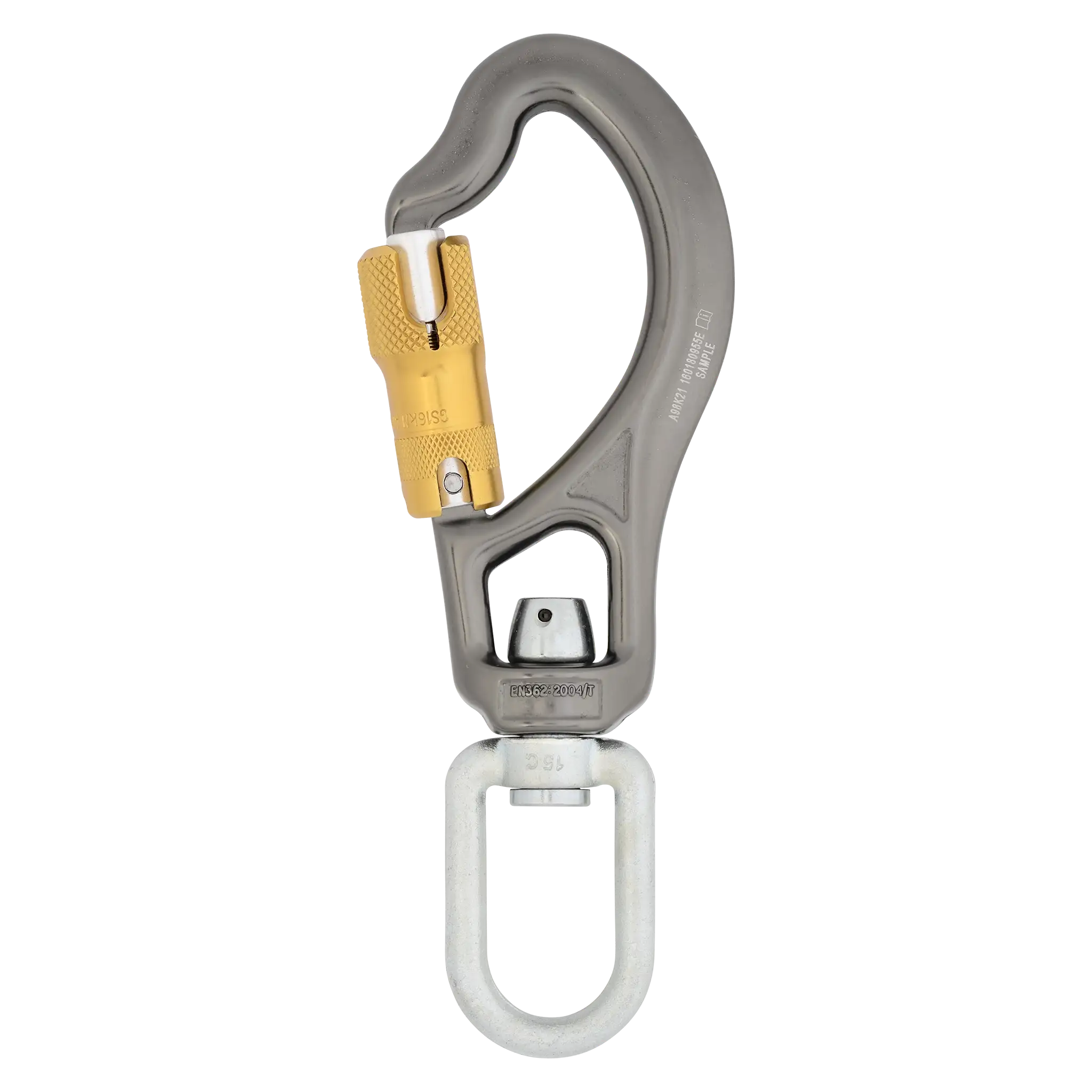

Sidewinder

$83.99

Captive eye swivel connector.

Is it a swivel or is it a captive eye connector? In fact, it’s both. The Sidewinder is a directional connector with an integral swivel. Essential in applications when there is a need to manage spin, rotate the load relative to the anchor or simply to minimise lanyard tangles. The Sidewinder is often used as a connector on guided fall arresters as it can be captive on a system, allows rotation by the user and is quick, easy and secure when connected.

Requesting Brochure for...

1198Sidewinder

Address
SKU: A98K71ANSI Categories: , , Tags: , , , Brand:

    Description

    Captive eye for permanent connection

    Sometimes it is essential for a connector to stay in the correct orientation or to be permanently attached to a system. The DMM captive eye connectors, with their textile friendly attachment holes, can be stitched into a rope or webbing loop, or swaged directly onto cable. They provide predicable direction of load and total security as the connector cannot be removed or misaligned.

    Aggressive loading groove forces load into correct place

    Keylock clean nose for snag free connection

    DMM’s patented ‘Taperlock’ closing mechanism increases gate push-in and cross gate strength using a special flared profile on the nose of the carabiner, as well as allowing a snag free connection for your ropes, slings and devices.

    Locksafe

    Auto-locking gate requiring three distinct actions to open.

    Additional information

    Weight 0.5709973 lbs
    Dimensions 2.75591 × 8.07087 × 0.84 in
    Product Dimensions

    70 x 205mm
    MBS (Major Axis)

    25kN
    MBS (Minor Axis)

    16kN
    Gate Opening

    15mm
    Certification

    EN362:2004 T
    ANSI/ASSE Z359.12-2019
    CAN/CSA Z259.12-16
