CAMP

SPHINX

$29.95

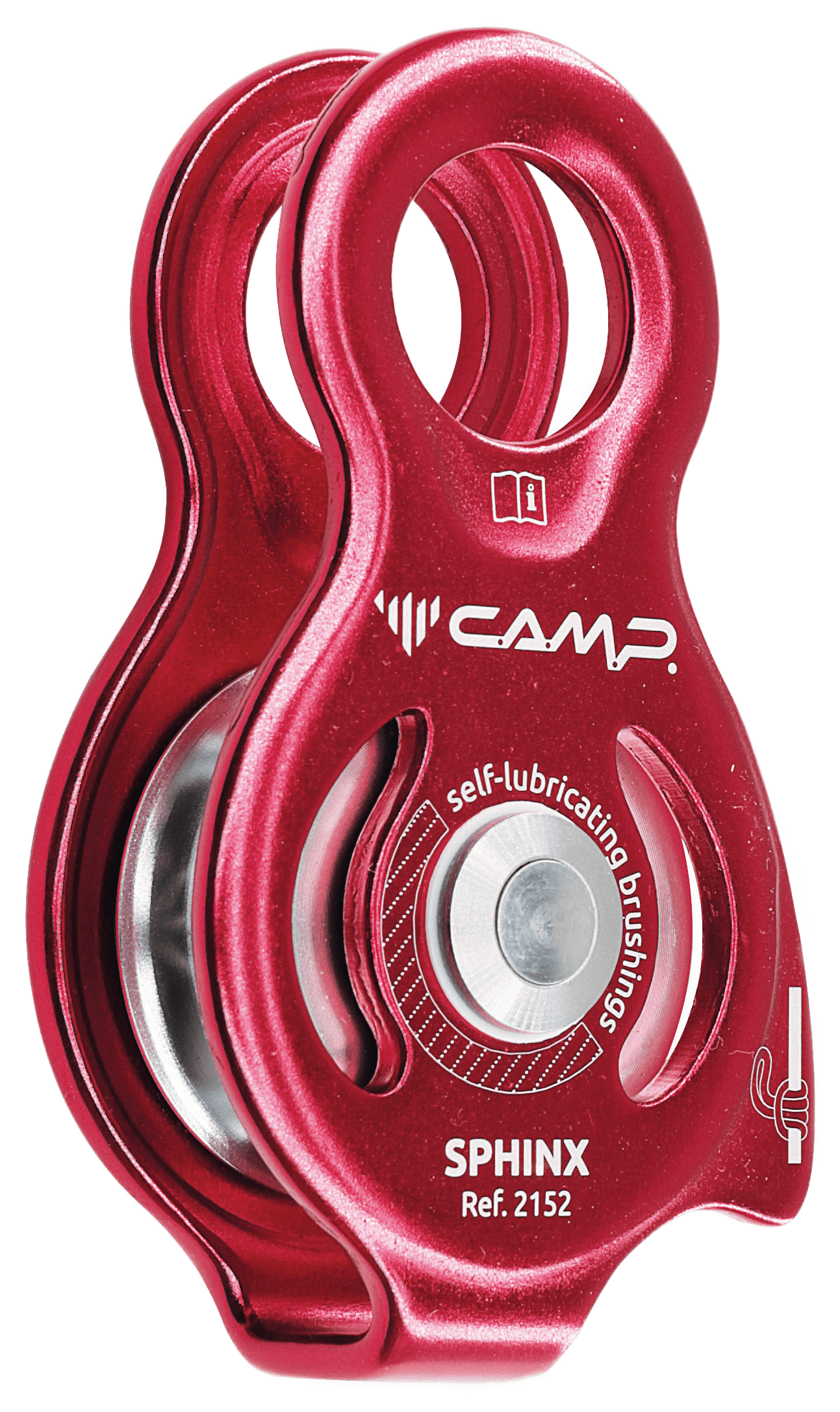

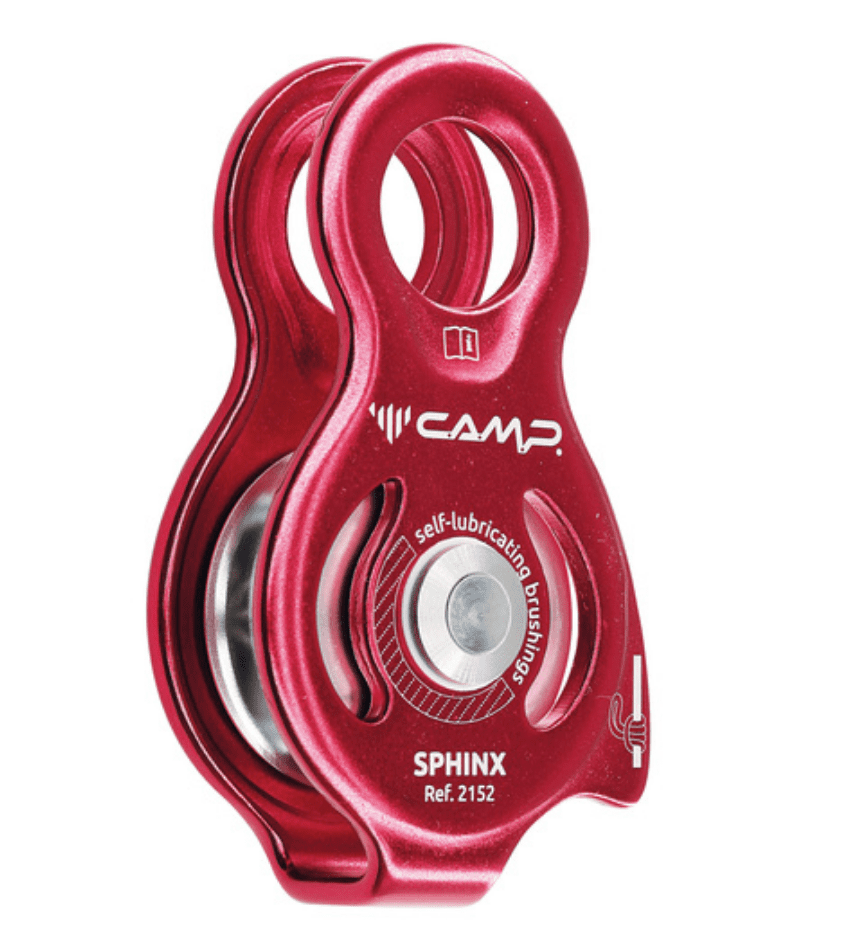

An ultra slim, highly functional fixed pulley.

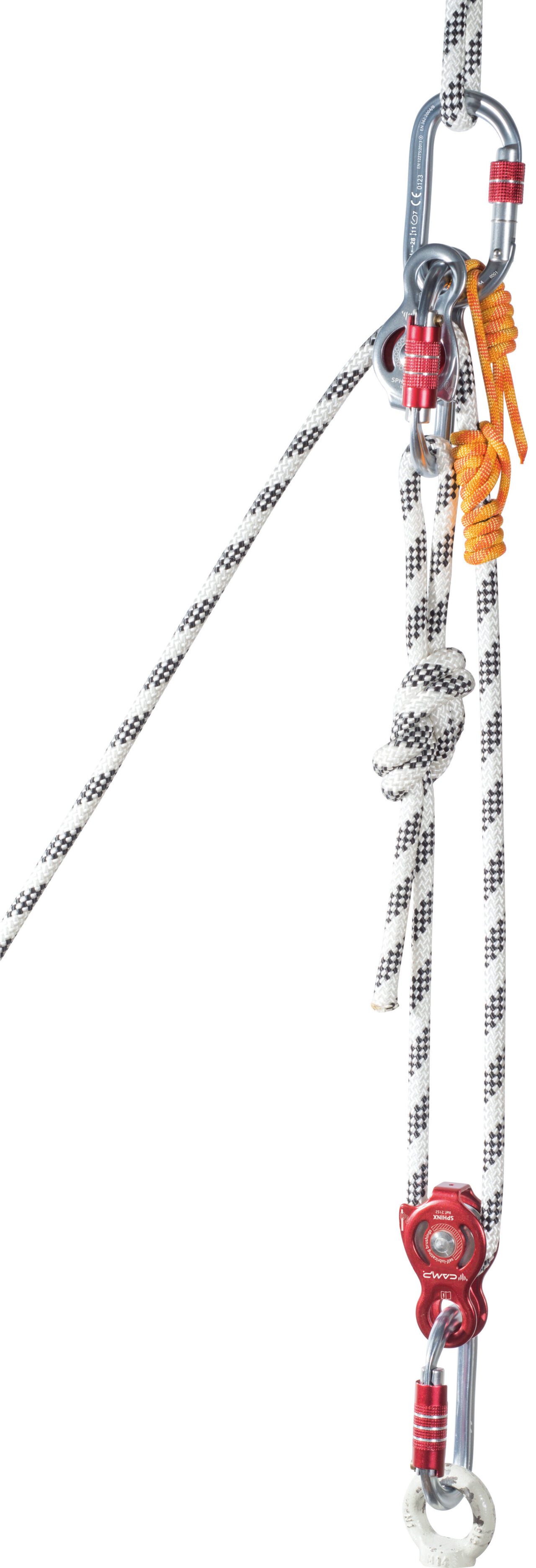

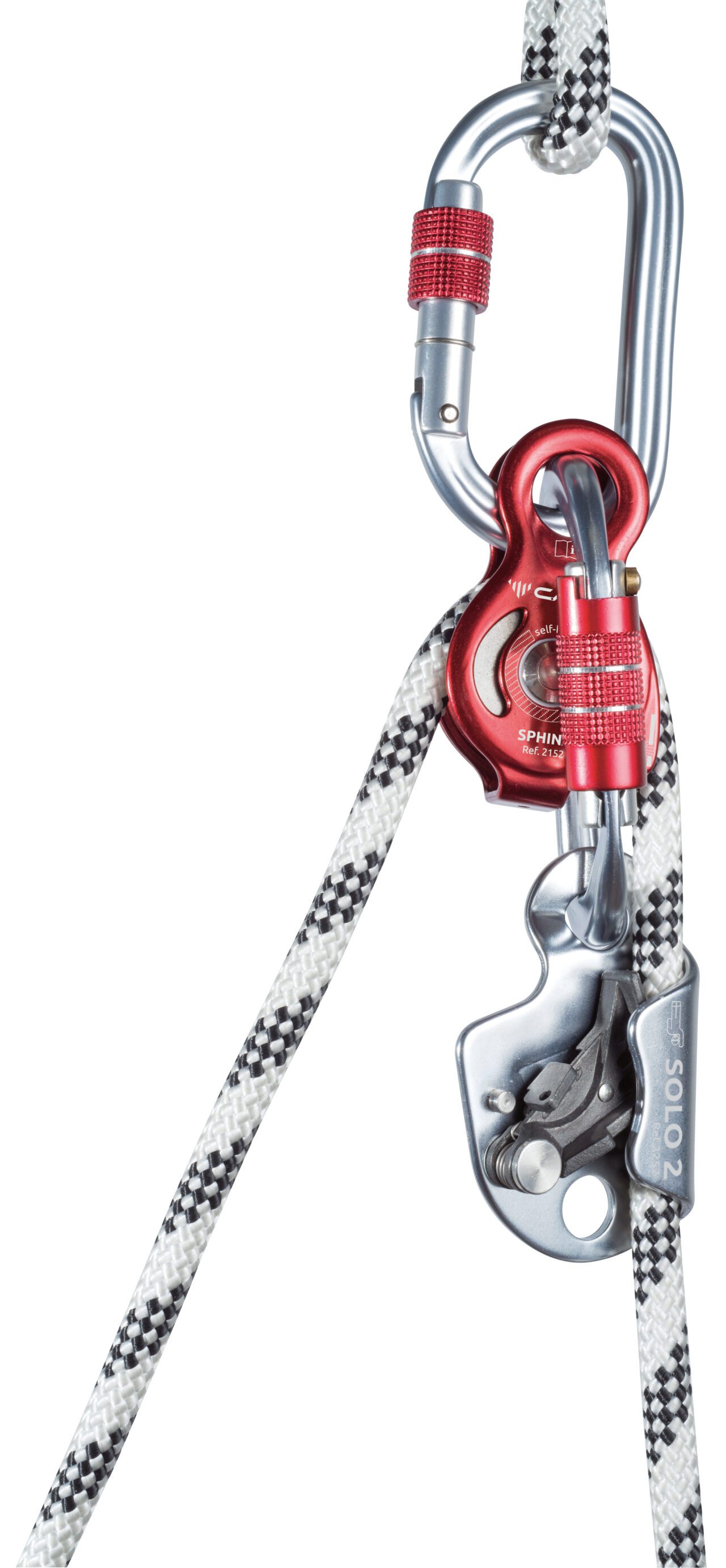

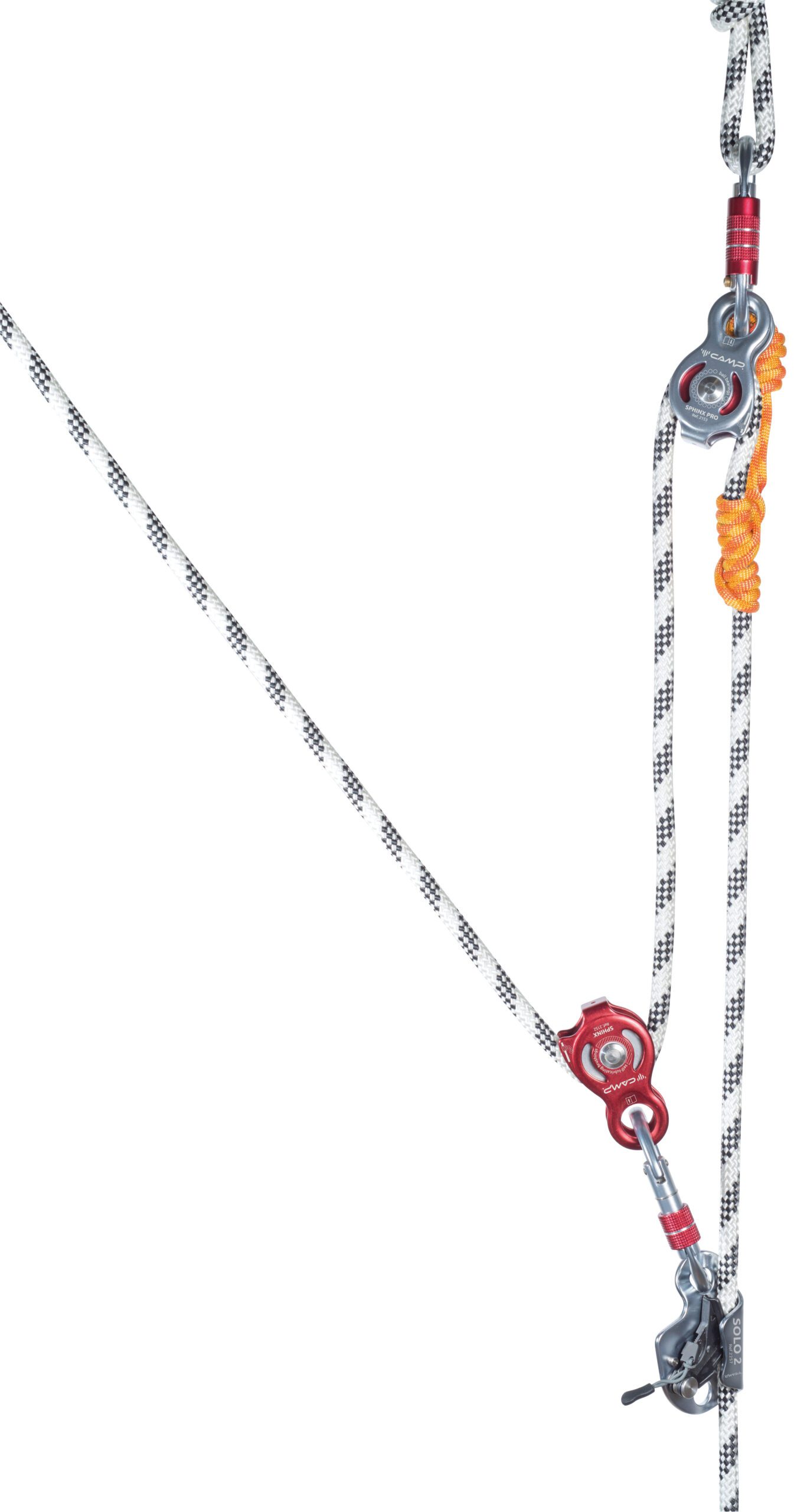

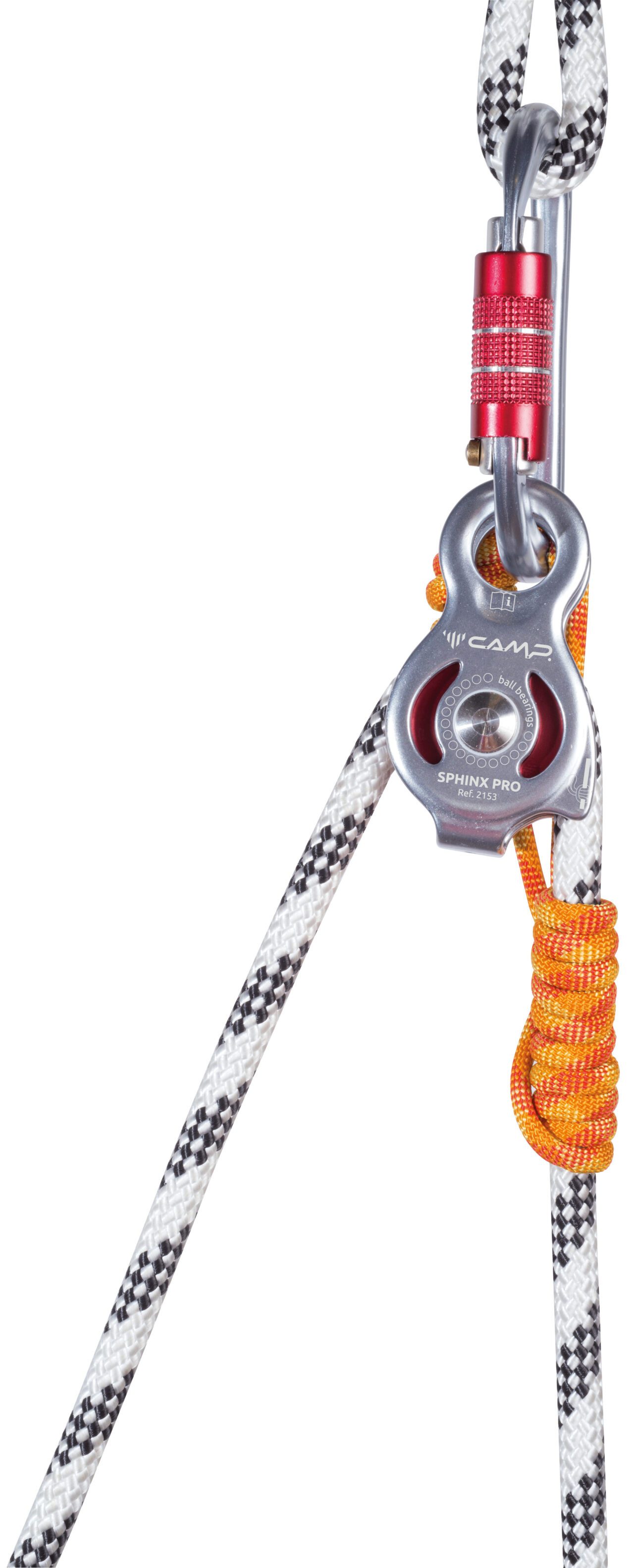

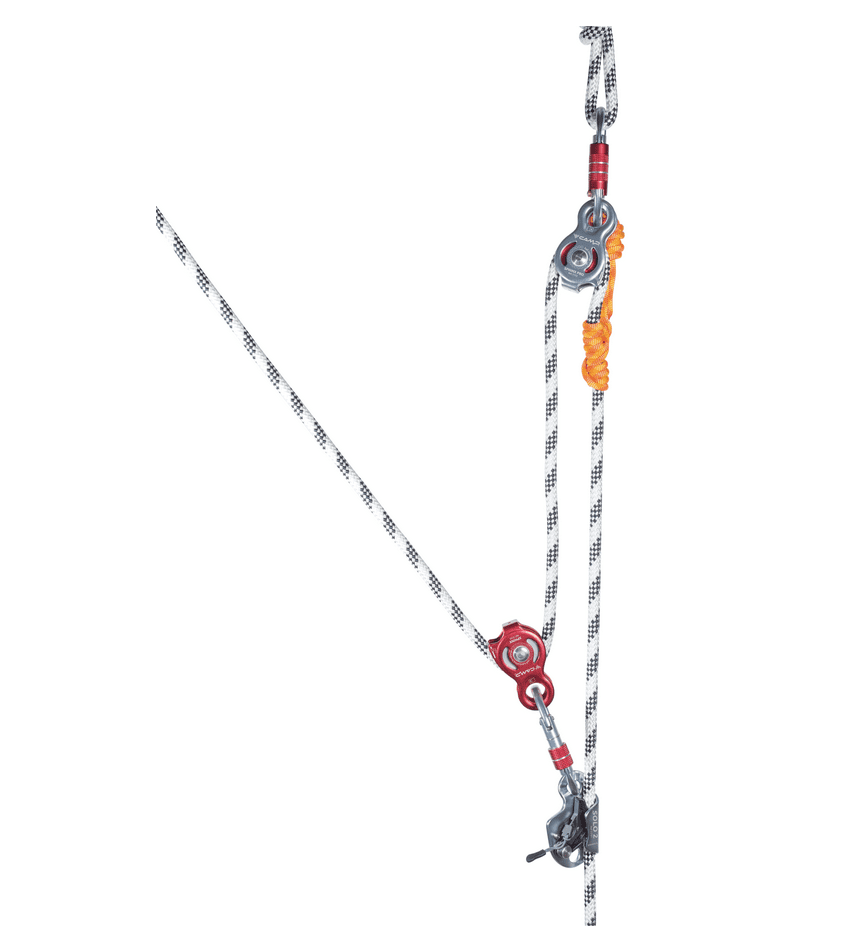

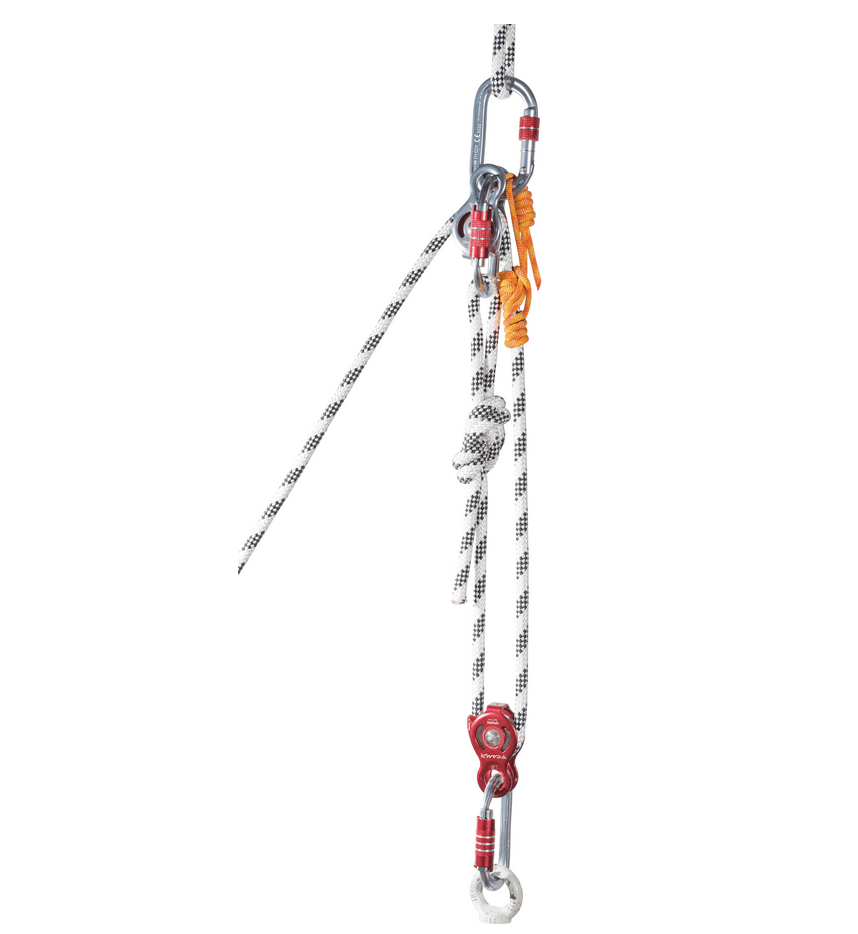

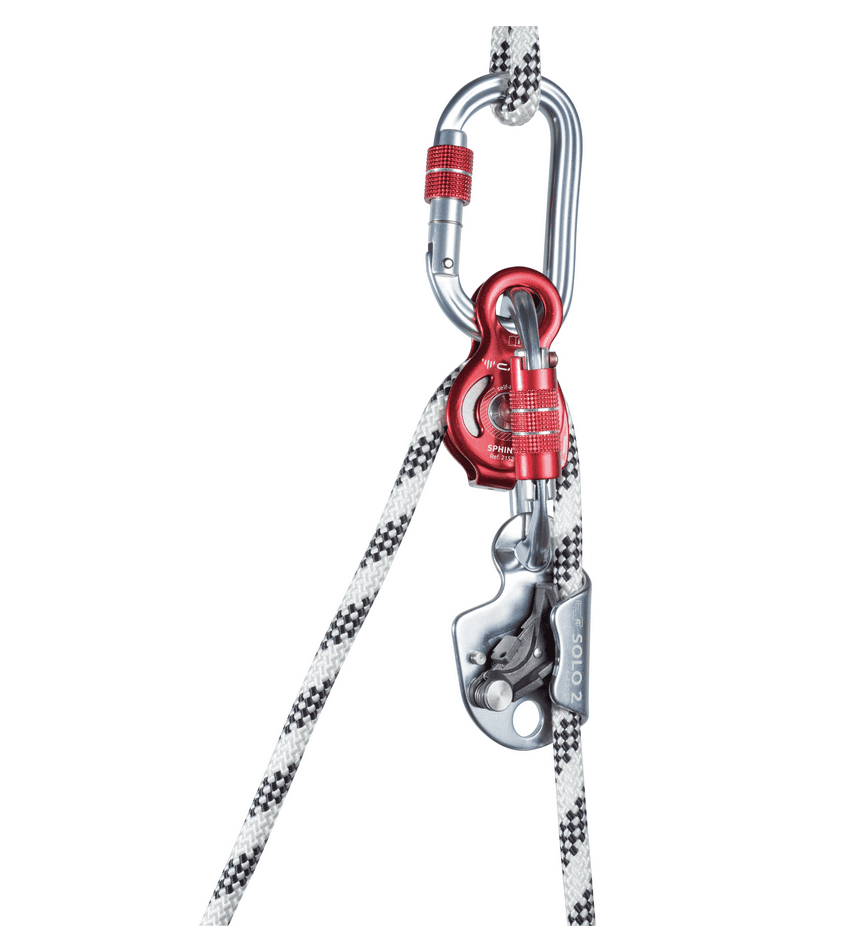

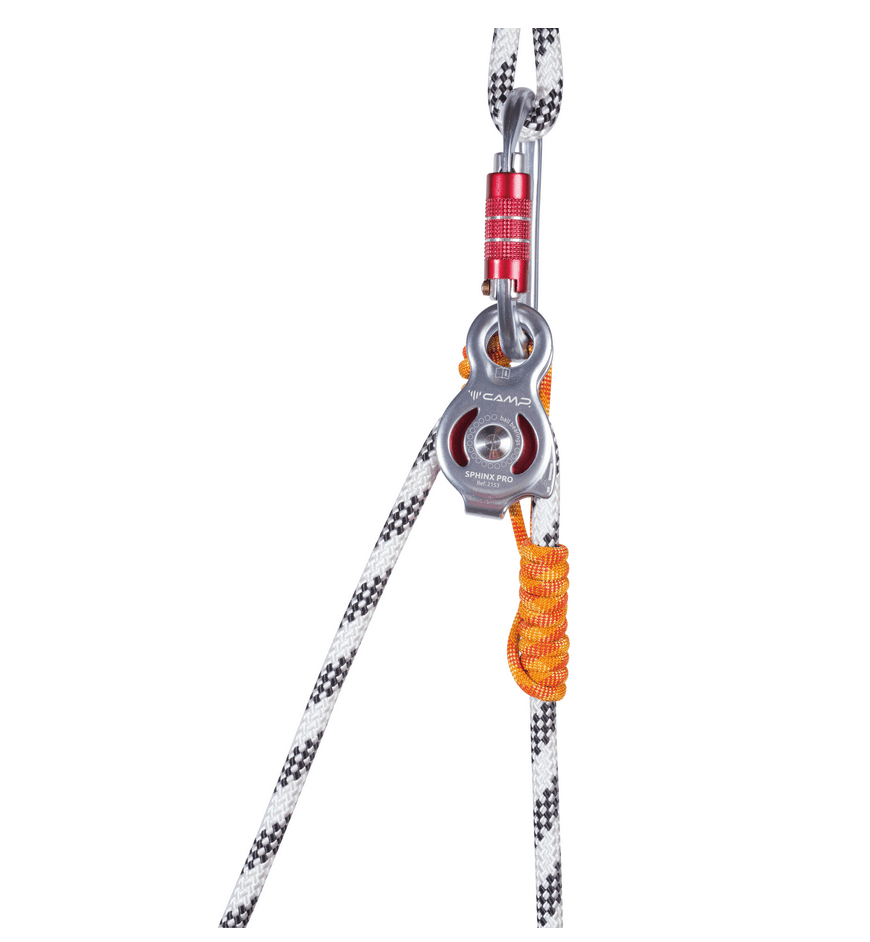

An ultra slim, highly functional fixed pulley. The main attachment point allows for full rotation of the carabiner. For use with ropes up to 13 mm. Prusik minding, the self-locking knot can be installed on one side. Self-lubricated bushings are sufficient for light applications at low speed.

Requesting Brochure for...

677SPHINX

Address
SKU: 2152 Category: Tags: , , , Brand:

    Description

    Efficiency: 80%. Aluminum alloy body and wheel, stainless steel axle.

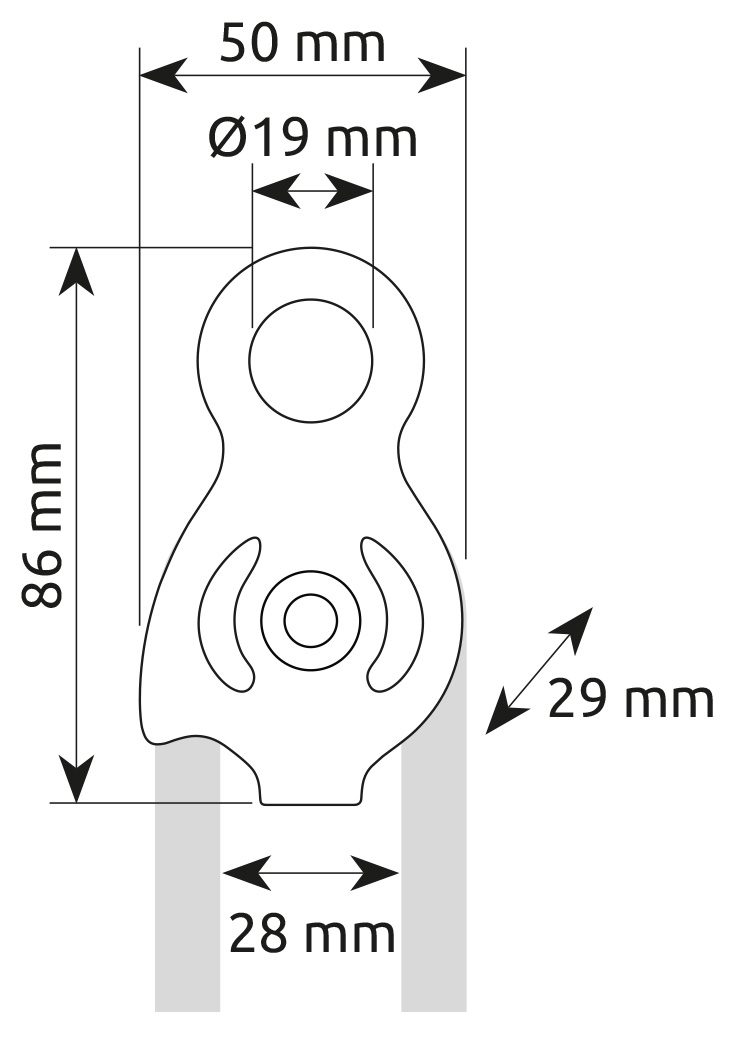

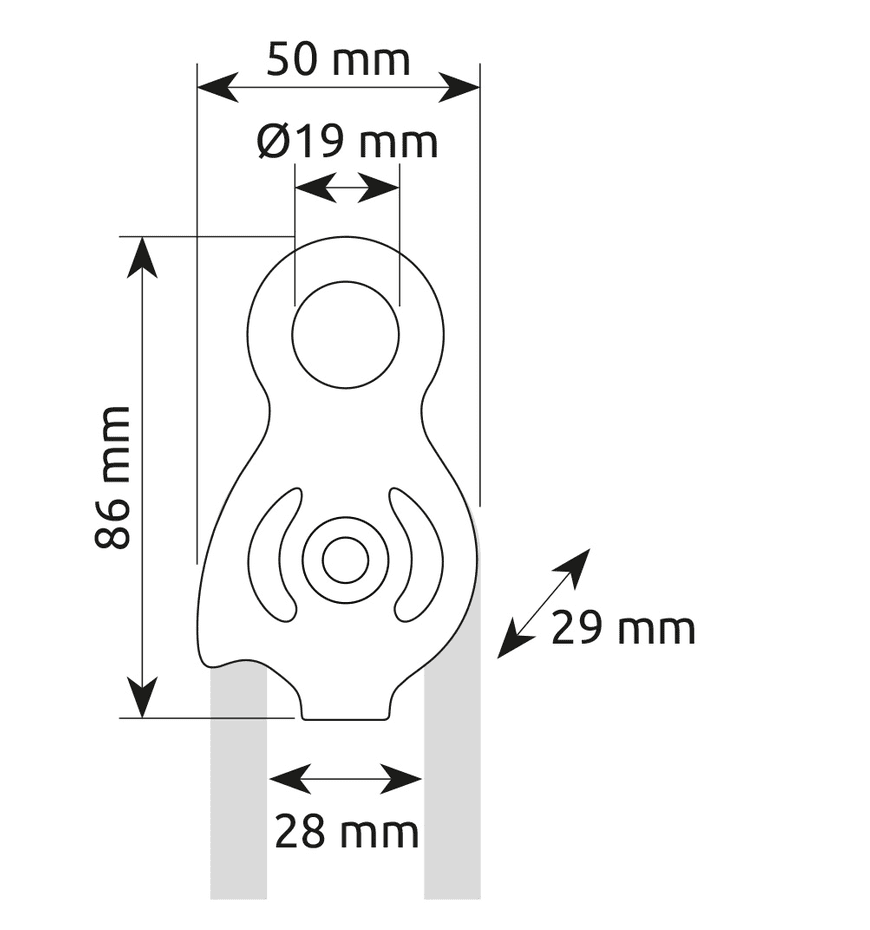

    Additional information

    Weight 0.2125 lbs
    Dimensions 4 × 1 × 4 in
    Inner sheave diameter

    28mm
    Rope diameter Max

    13mm
    Working load Max

    kN: 2 kN x 2 = 4 kN, LBF: 450 LBF x 2 = 900 LBF
    Breaking load

    24kN, 5396 LBF
    Sheave material

    Aluminum alloy
