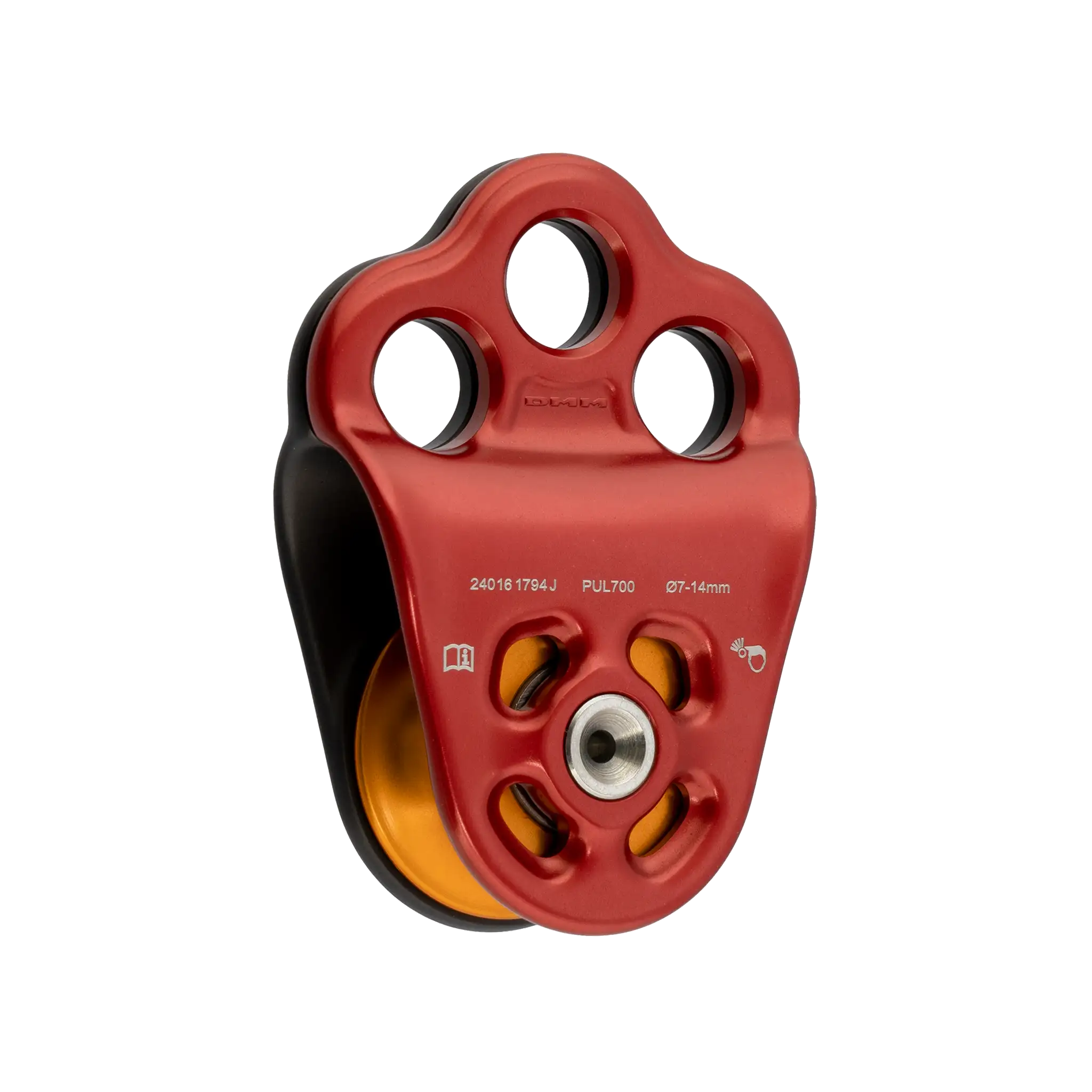

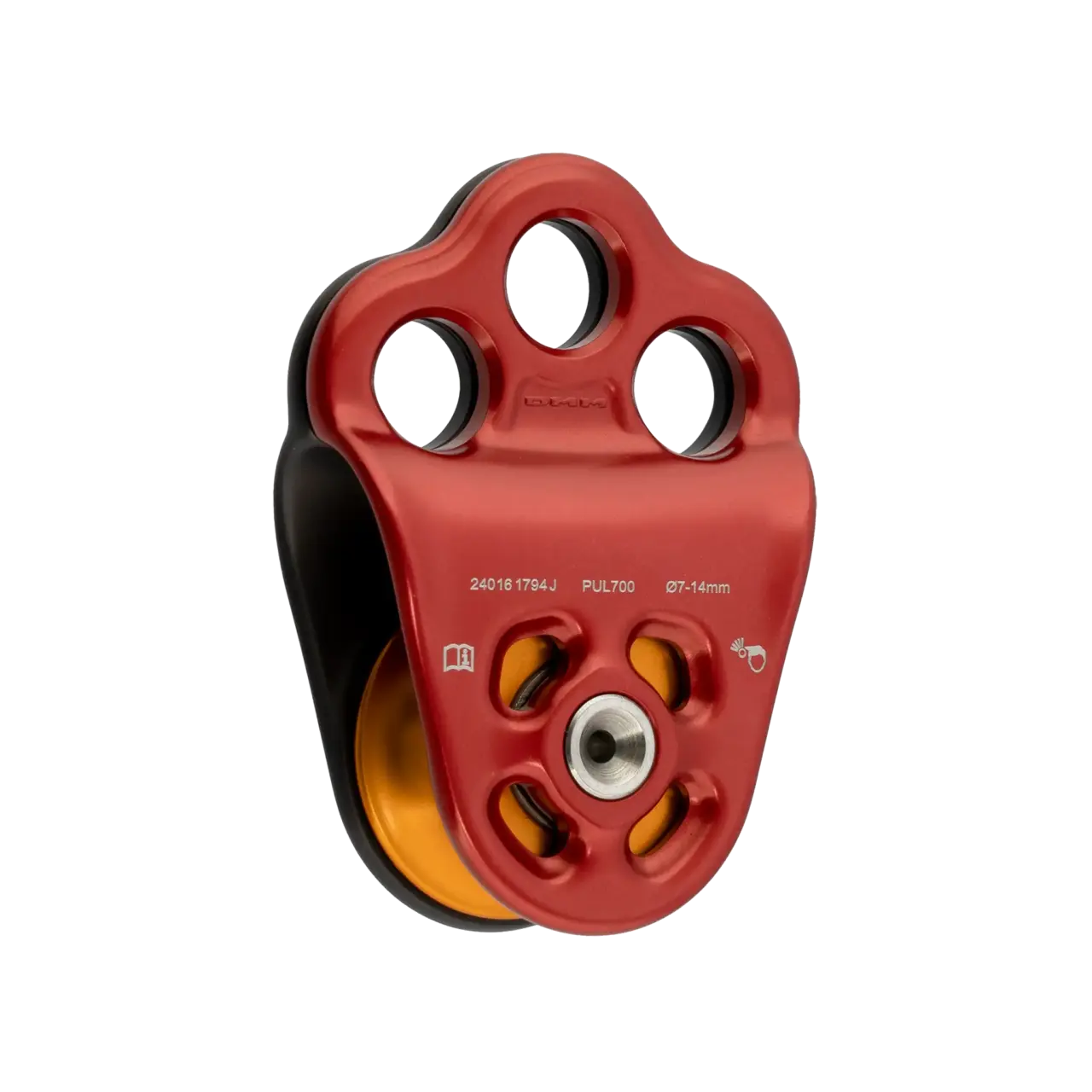

DMM

Triple Attachment Pulley 2

$99.99

The Triple Attachment Pulley forms an integral part of the renowned Hitch Climber System and is a firm favourite of working at height professionals the world over. The three hole construction makes rigging and organising much simpler and allows for off-centre hanging to minimise rope to pulley friction.

The updated design features sealed bearings in place of bushings, offering improved efficiency. Improving ease of use, the new U shape (rather than V shape) above the sheave increases volume. This means rope feeds in more easily when used in hitch climber system.

Requesting Brochure for...

1274Triple Attachment Pulley 2

Address
SKU: N/A Category: Tags: , , , Brand:

    Description

    • Bushings have been replaced with sealed bearings, offering improved efficiency
    • Updated straight sides tend the hitch better
    • Extra volume in U shape rather than V shape above sheave means rope feeds in more easily when used in hitch climber system
    • Rigging plate helps organise single or multiple attachments
    • Fairlead flares help maintain high working efficiency
    • Compatible with most carabiner shapes and many textile connecting elements including rope and webbing
    • Size of attachment holes reduce probability of unwanted rotation of locking carabiners
    • Direct connection to textile components at the round edged attachment holes, helping to reduce system costs, increase lift height, minimise space required and enhance tolerance to torsion
    • Side plate shape allows an autoblock knot to function when the rope approaches the sides as well as at the bottom of the pulley
    • Tamperproof construction

    Additional information

    Weight N/A
    Dimensions N/A
    Color

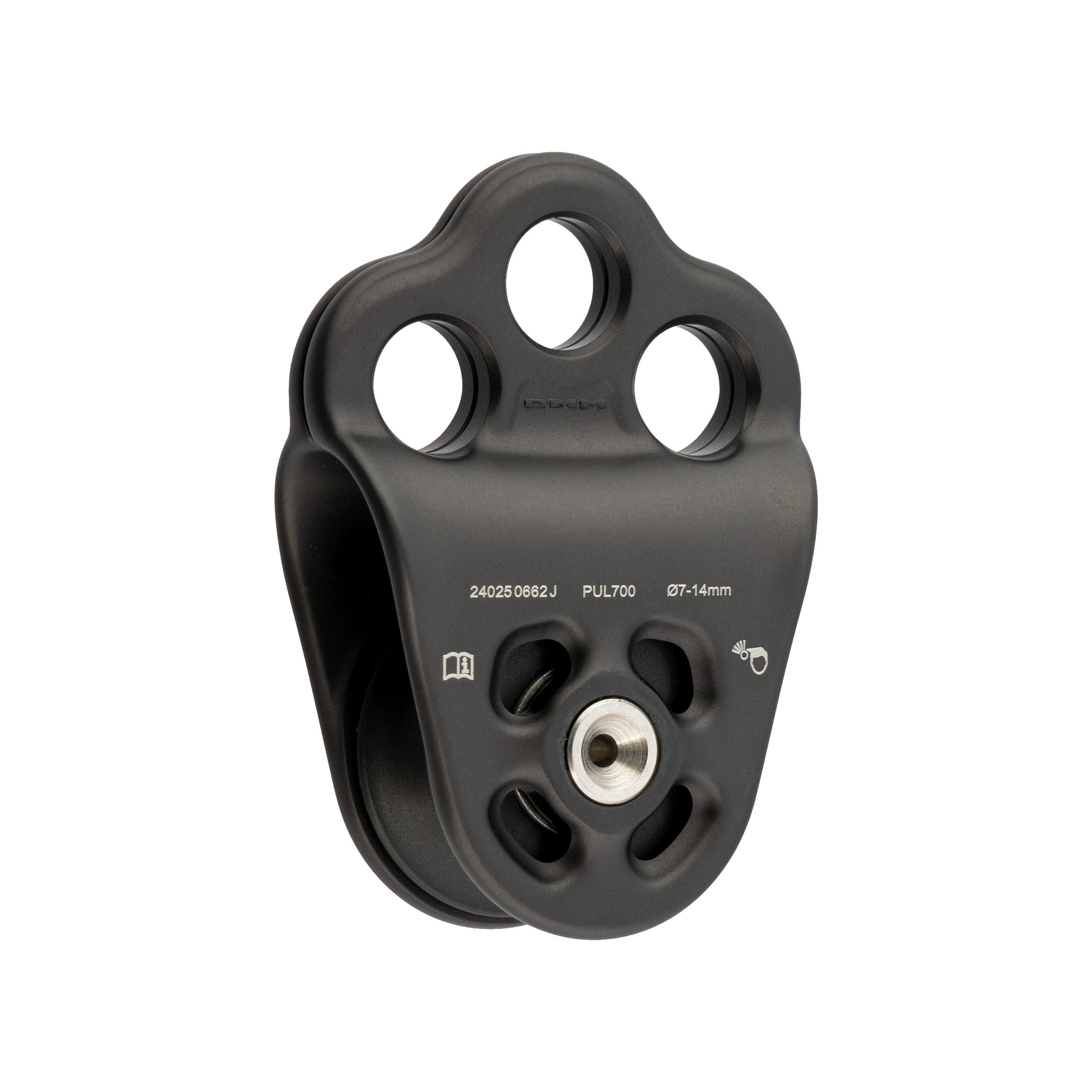

    Red, Matt Gray

    MBS

    30kN

    WLL

    6kN

    Product Dimensions

    94 x 68 x 33mm

    Rope Diameter

    14mm Max

    Sheave Diameter

    42mm

    Certification

    EN12278:2007
