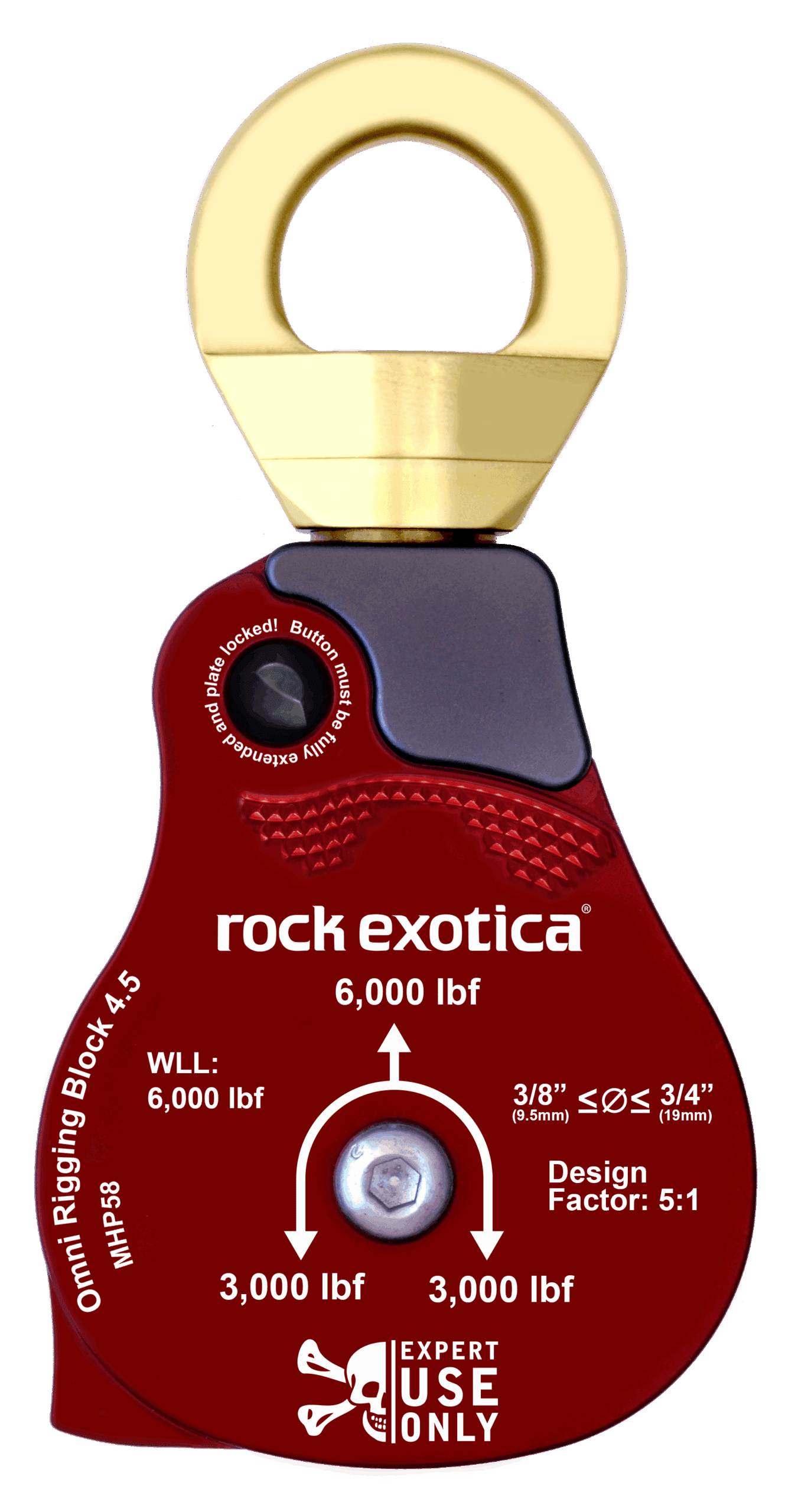

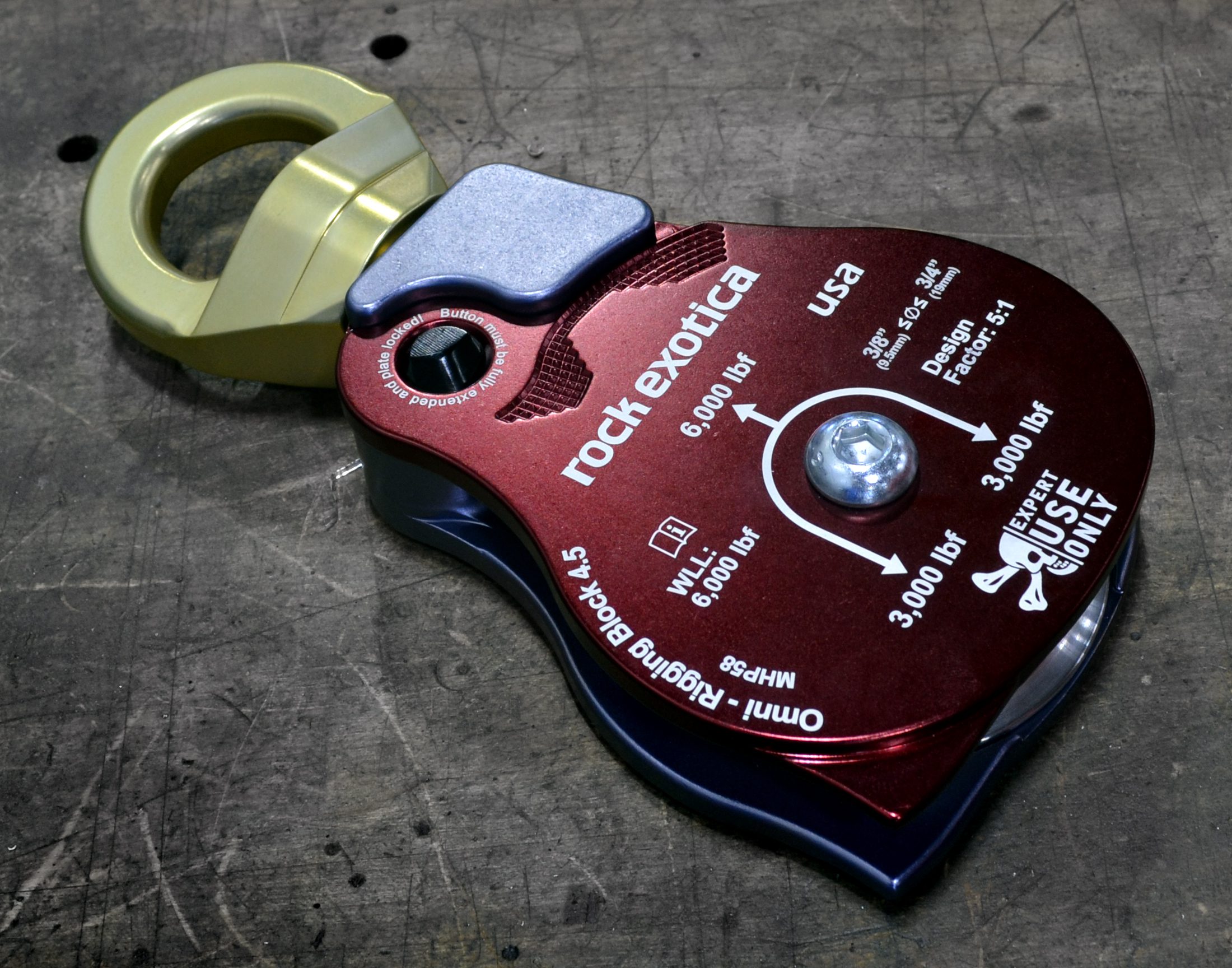

Rock Exotica Material Handling Omni-Block 4.5″
$485.00
The Material Handling Omni 4.5″ brings heavy duty rigging to the Omni family with a Working Load Limit (WLL) of 6000 lbf. In addition to the large 4.5″ sheave, the MHP58 features a prusik minding sideplate, and push-button access to open the sideplate to install rope. Whether used in a hoisting system with a capstan winch or in general industrial rigging, this rigging block provides a high-strength and lightweight solution needed for tower climbers and industrial riggers.
Requesting Brochure for...
5321Rock Exotica Material Handling Omni-Block 4.5″
-
Description
-
Additional information
Description
– Install and remove rope while still connected to the anchor
– Sideplate locks with two-stage, double-catch safety mechanism
– Integrated swivel allows pulley to orient while reducing gain
– Connect, install and remove rope with one hand
– CNC machined for optimal weight & strength
Additional information
| Weight | 5.8 lbs |
|---|---|
| Dimensions | 5.75 × 11.5 in |
| Inner Sheave Diameter | 3.75" (95mm) |
| Outer Sheave Diameter | 4.5" (114mm) |
| Rope ≤ ..." Ø ≤ ...’’(... mm) | 3/8" – 3/4" (9.5mm-19mm) |
| WLL | 6,000 lbf |
| Height | 11.5" (292mm) |
| Width | 5.75" (146mm) |
| Weight | 5.8 lb (2.6kg) |
| Rope Type | Fiber |
