CAMP

NAIAD

$59.95

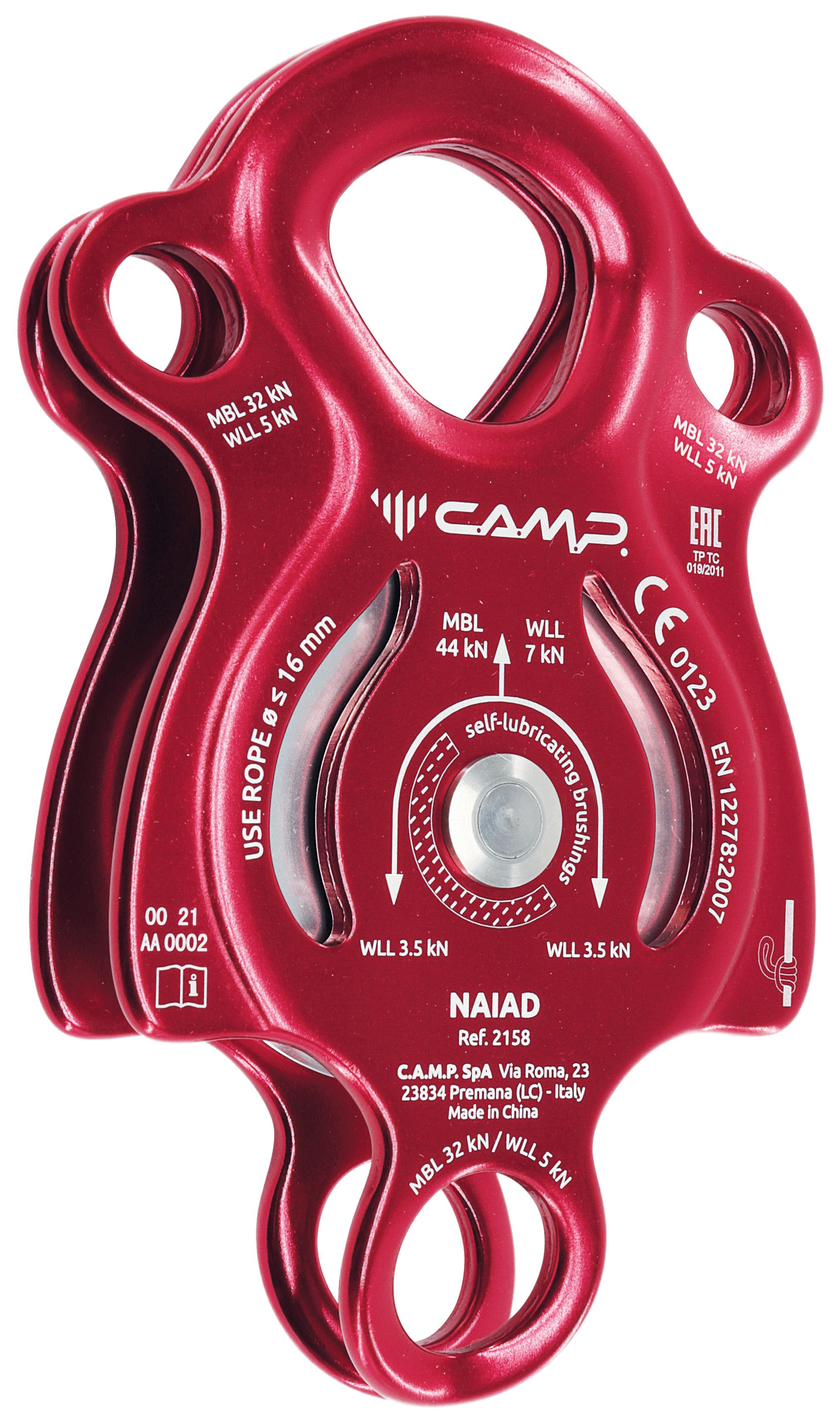

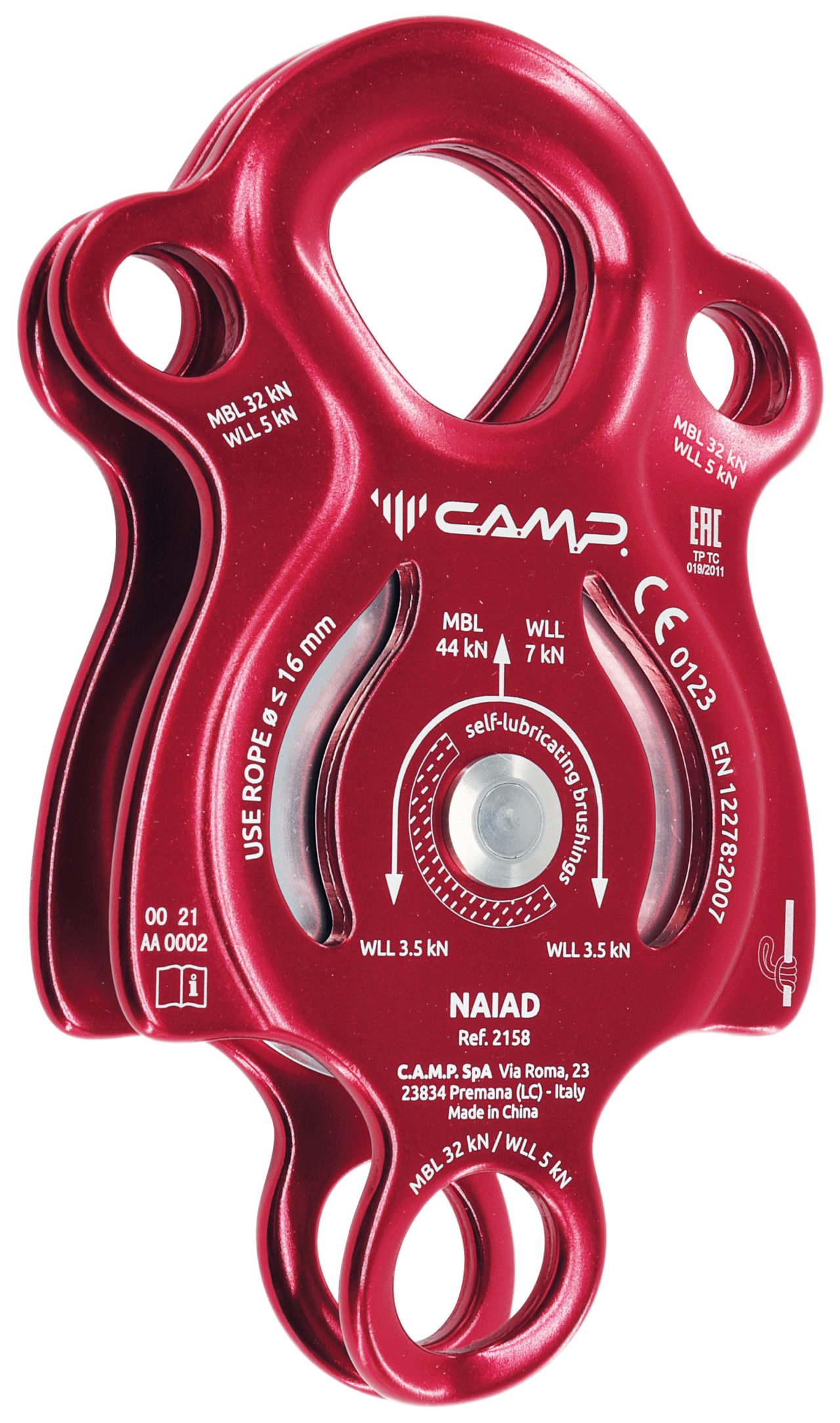

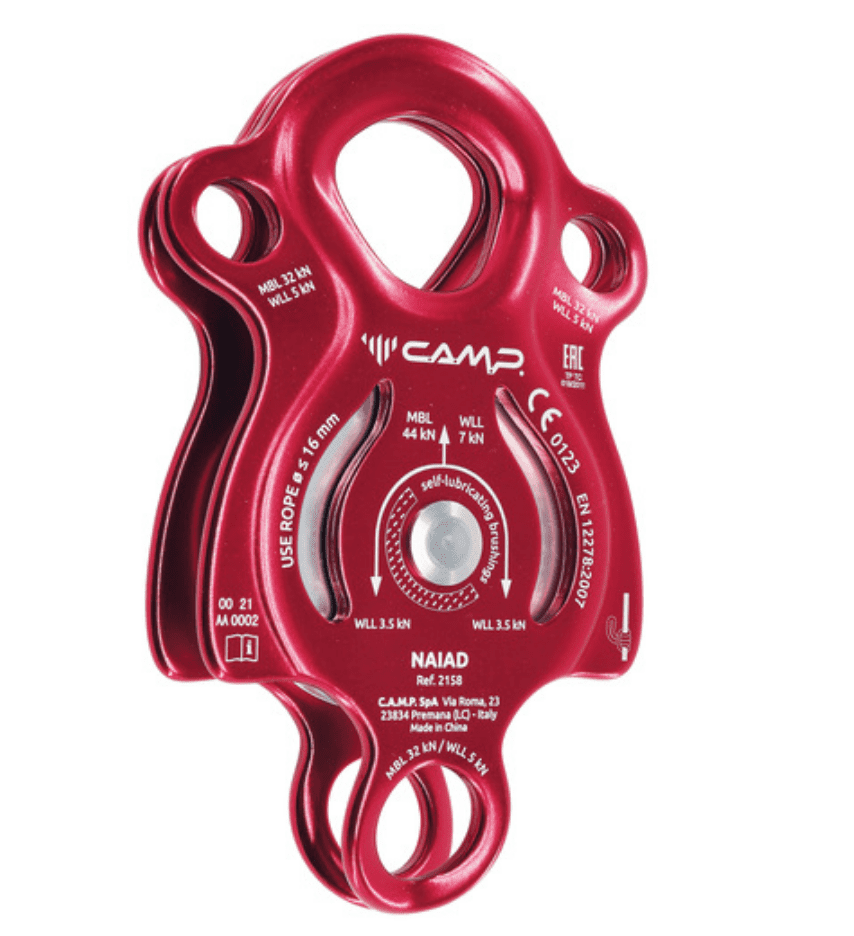

A high strength multifunctional pulley for heavy hauling and complex operations.

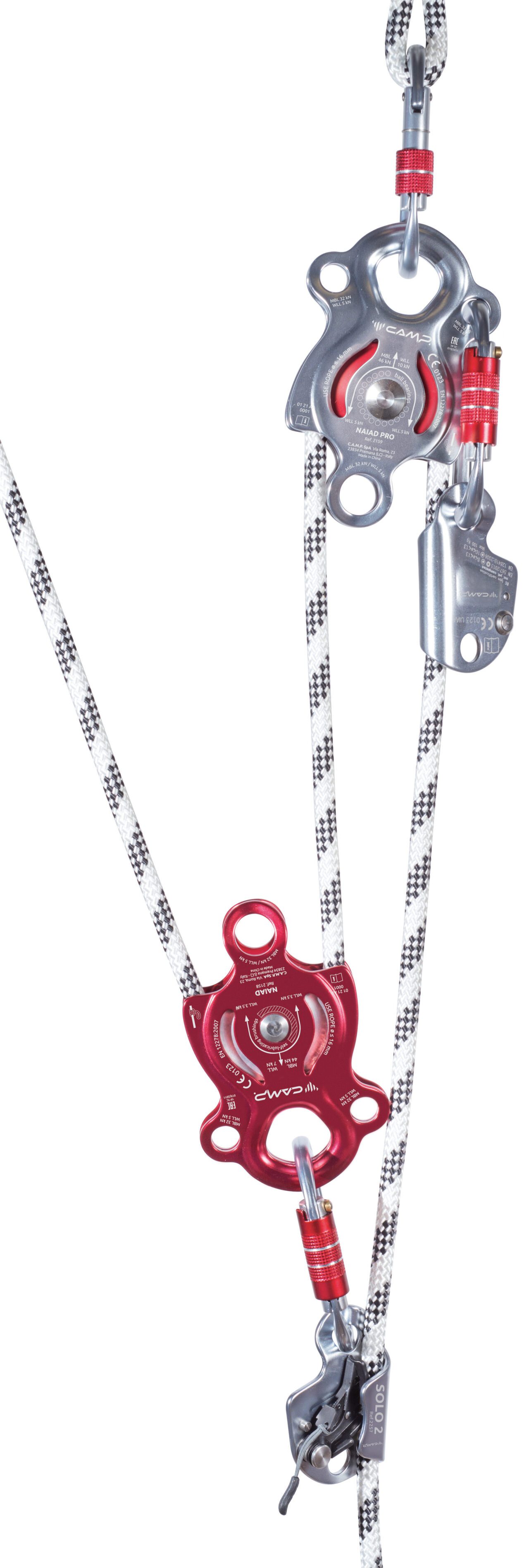

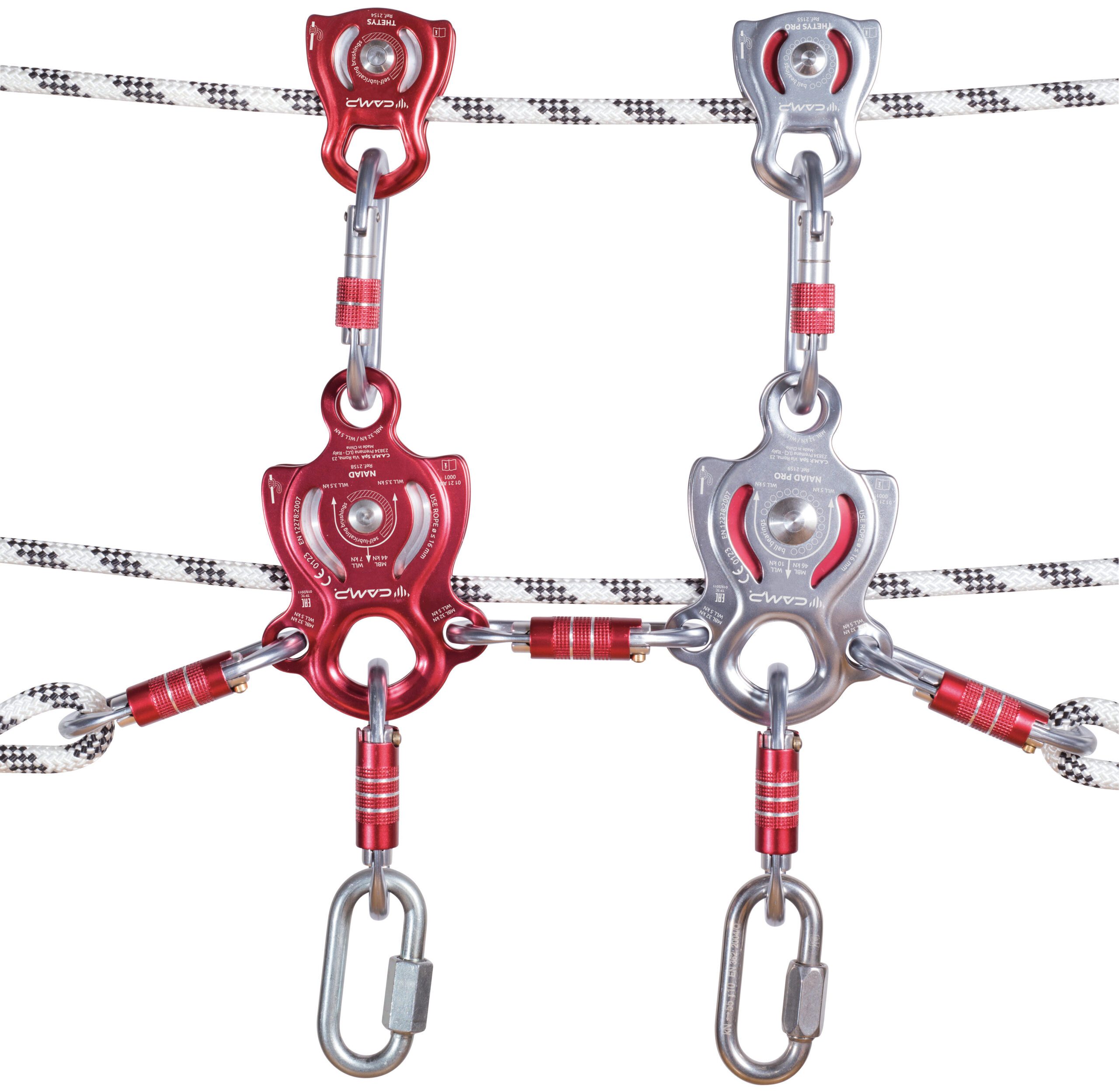

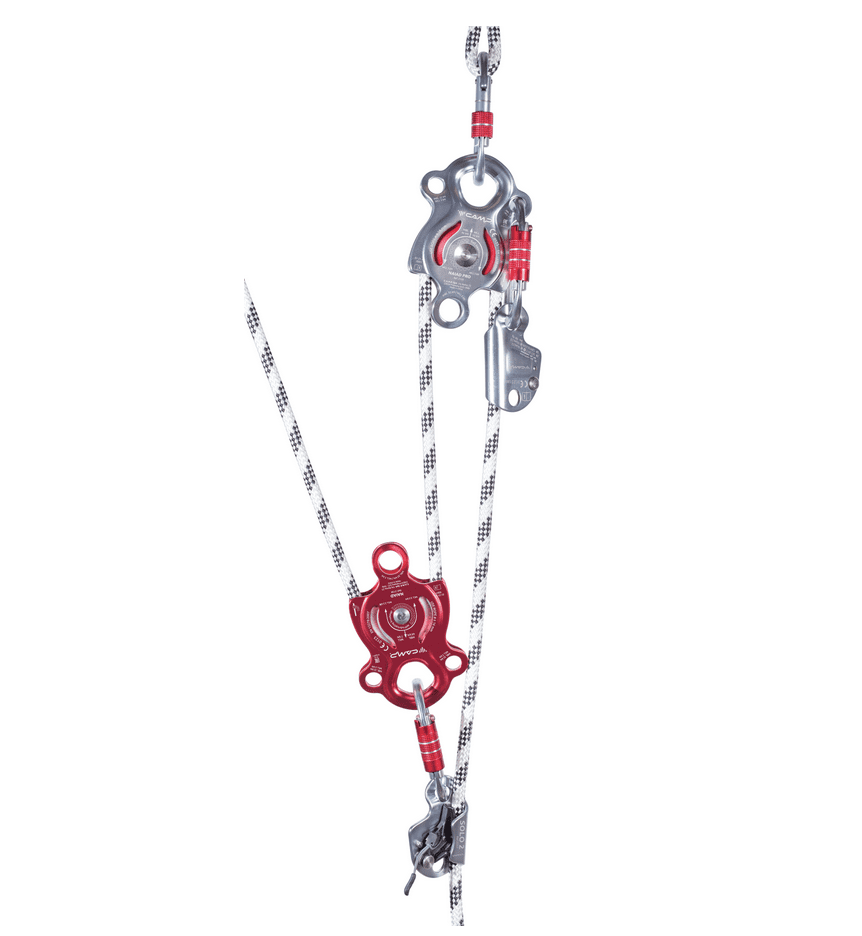

A high strength multifunctional pulley for heavy hauling and complex operations. Features a large wheel, a main attachment point that accommodates three carabiners, a large bottom attachment point, and two secondary attachment points on the sides for linking, positioning and attaching progress capture systems. For use with ropes up to 16 mm. Prusik minding, the self-locking knot can be installed on both sides. Self-lubricated bushings are sufficient for light applications at low speed.

Requesting Brochure for...

719NAIAD

Address
SKU: 2158 Category: Tags: , , , Brand:

    Description

    Efficiency: 90%. Aluminum alloy body and wheel, stainless steel axle.

    Additional information

    Weight 0.61875 lbs

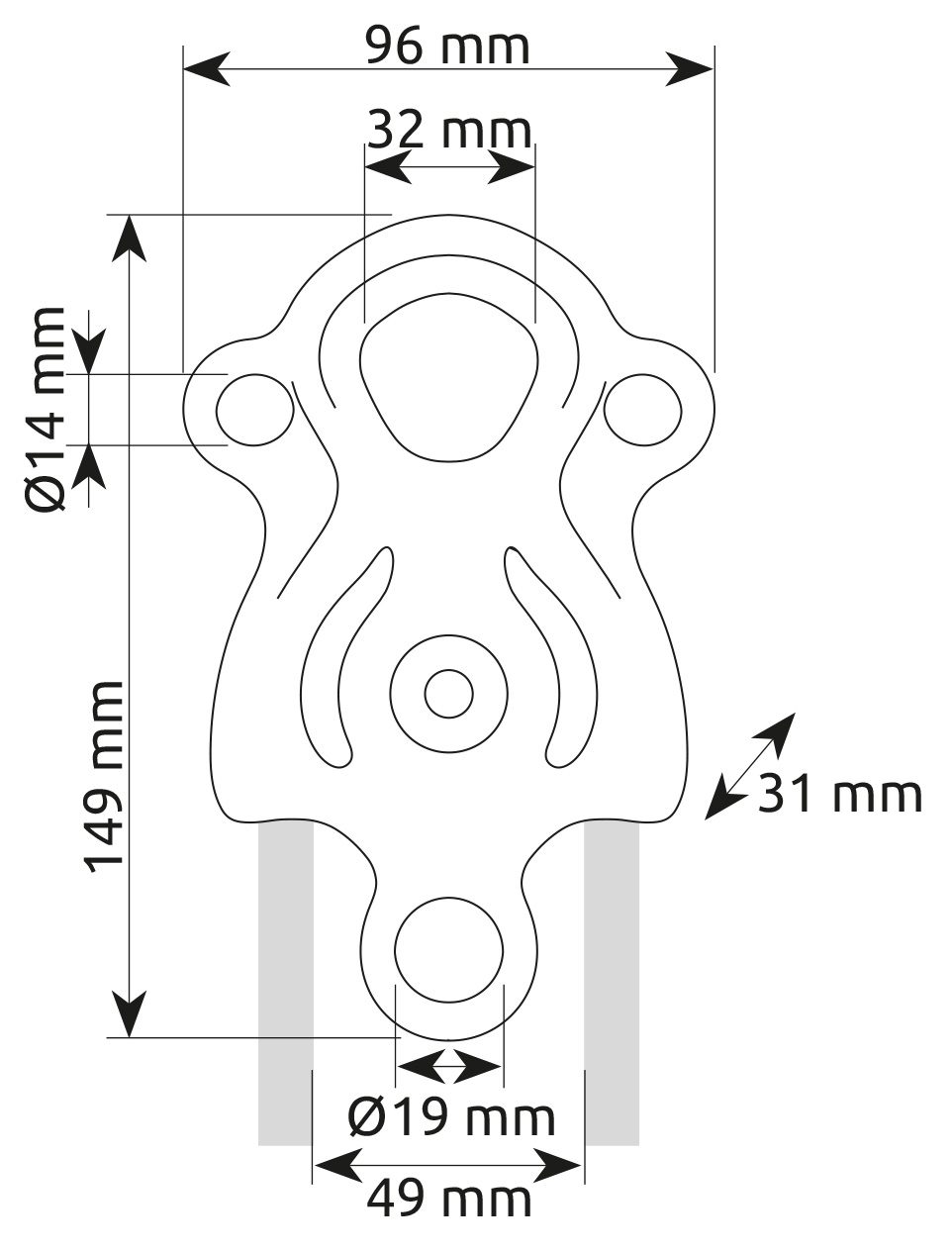

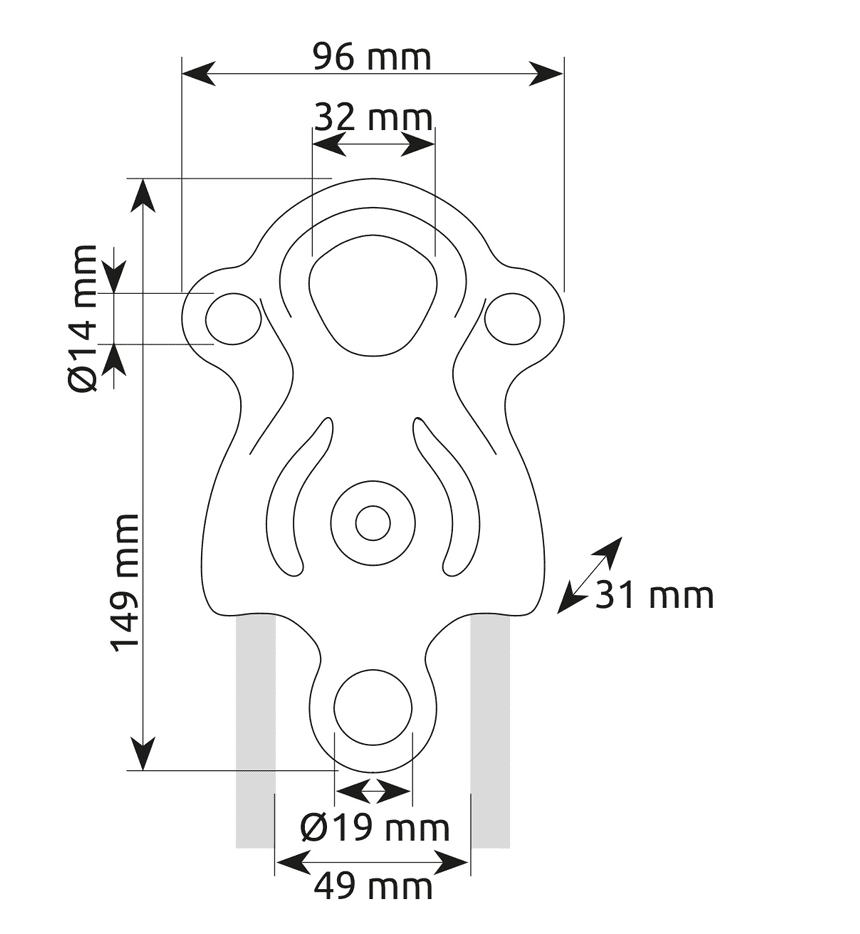

    Dimensions 7 × 4.5 × 2.5 in
    Inner sheave diameter

    49mm

    Rope diameter Max

    16mm

    Working load Max

    3,5 kN x 2 = 7 kN, 787 LBF x 2 = 1574 LBF

    Breaking load

    44kN, 9892 LBF

    Sheave material

    Aluminum alloy
