Hydra
$125.00

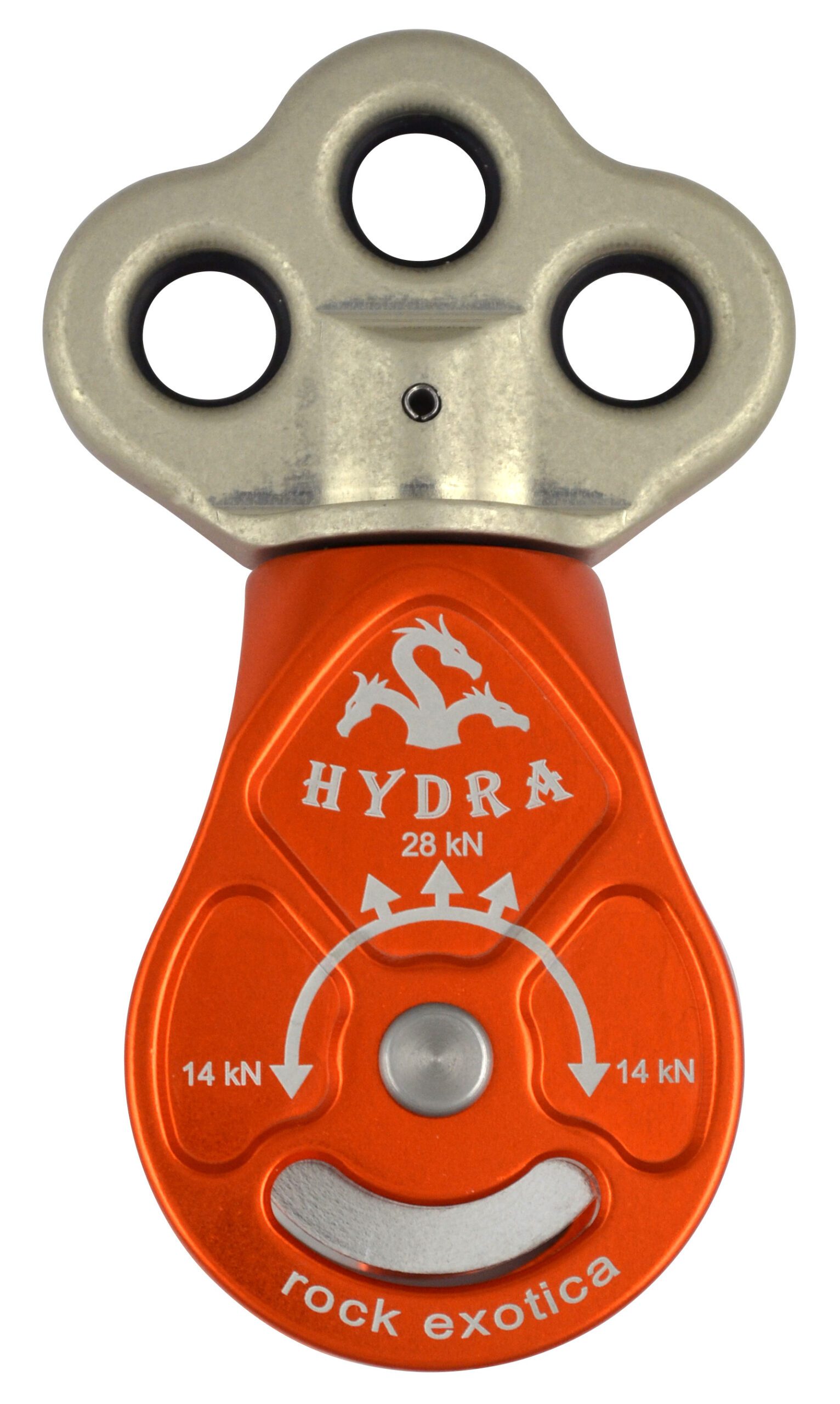

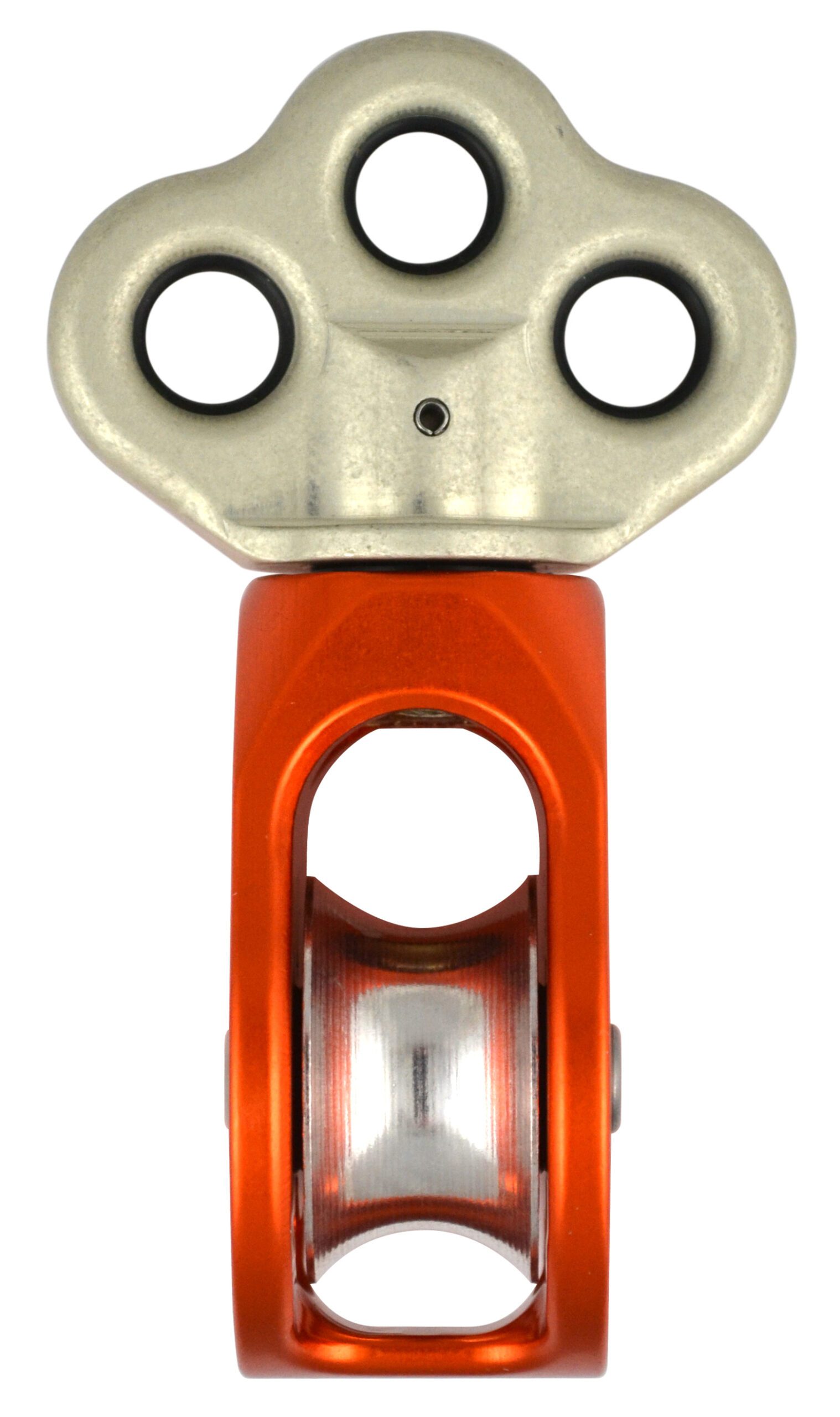

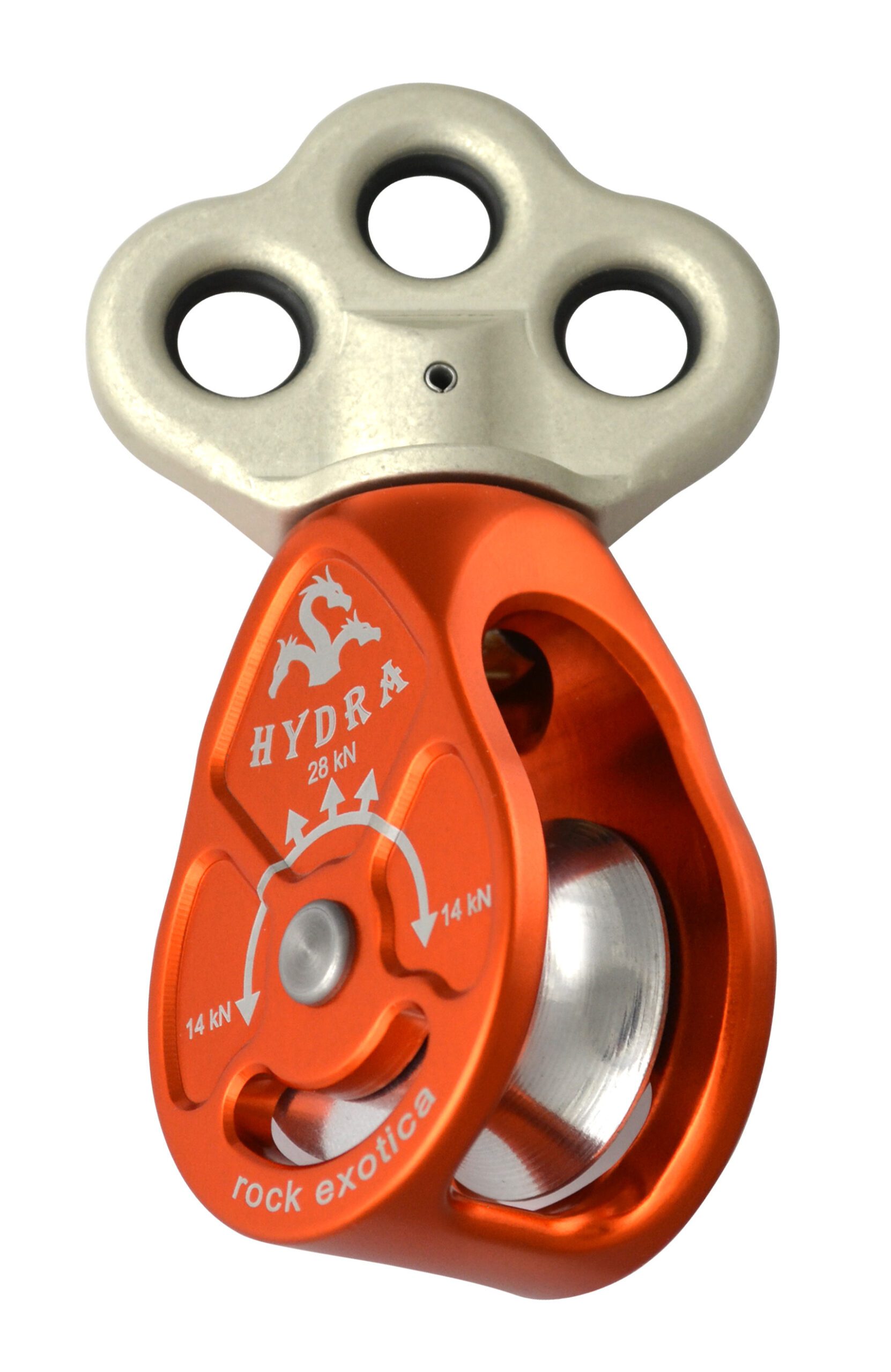

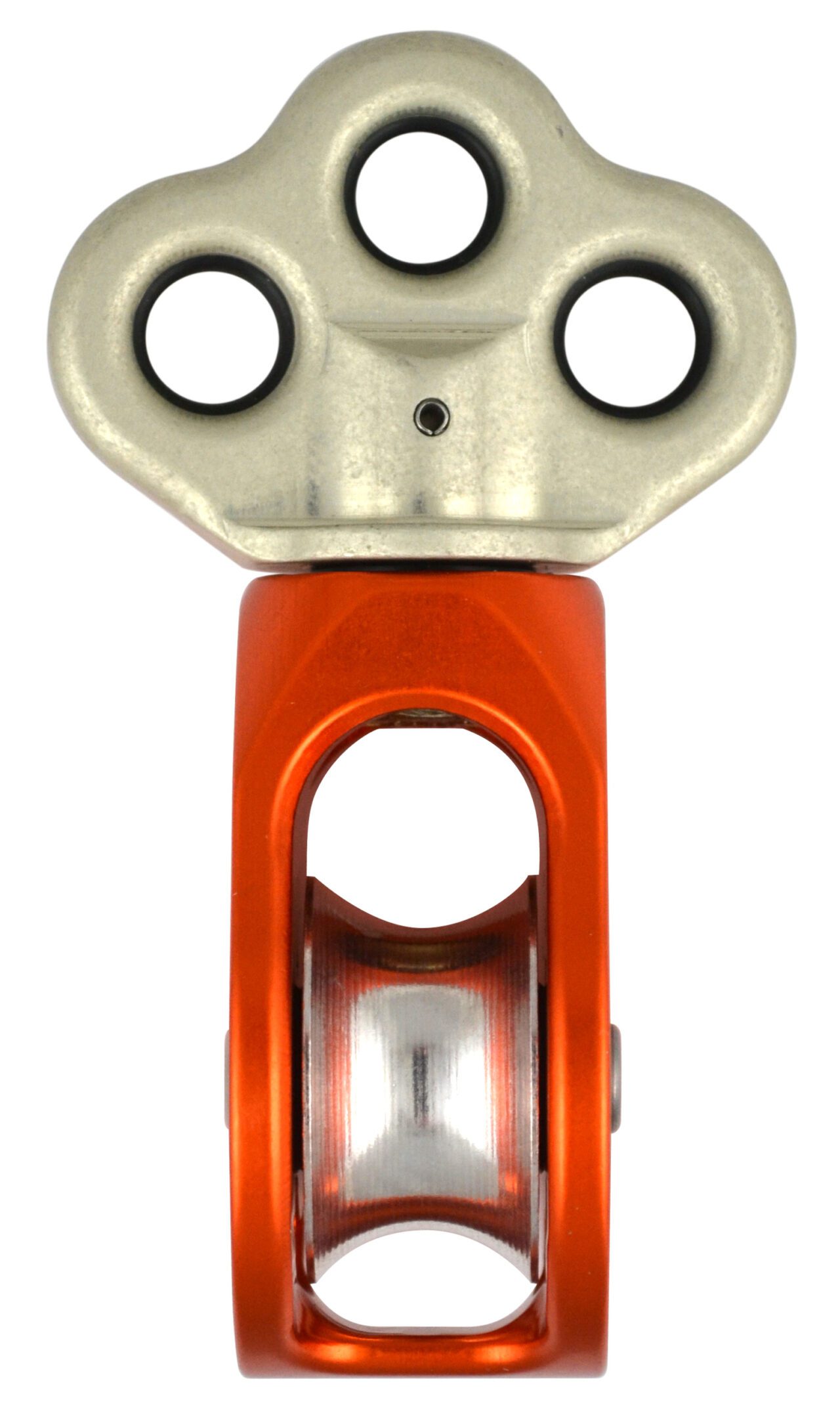

The HYDRA is a triple attachment pulley which features a swivel-top connection to facilitate the pulley’s use on the saddle bridge, and for use in climbing systems. Rubber o-rings line the connection points to assist in holding carabiners tightly to avoid dangerous cross-loading.
Requesting Brochure for...
5325Hydra
-
Description
- Combines a pulley, rigging plate and swivel all in one compact piece of equipment
- Use on the saddle bridge, as a lanyard adjuster or in your climbing system
- Eliminates twisting of the climbing line when used as a rolling attachment point on the saddle bridge
- Rubber grommet-lined attachment points hold carabiners snugly to help prevent cross-loading
- Pulley sheave uses high-efficiency bearing for smooth operation
- Pulley body is machined from solid aluminum to increase strength and decrease weight
-
Additional information
Description
TRIPLE ATTACHMENT PULLEY
Any tool for arborists needs to be lightweight, durable and serve a variety of functions. The HYDRA fits that description by providing the functionality of a pulley with a rigplate. The HYDRA’s swivel top offers three connection points lined with rubber o-rings to grip carabiners tightly. These connection points were specifically designed for the rockO carabiner to avoid dangerous cross-loading.

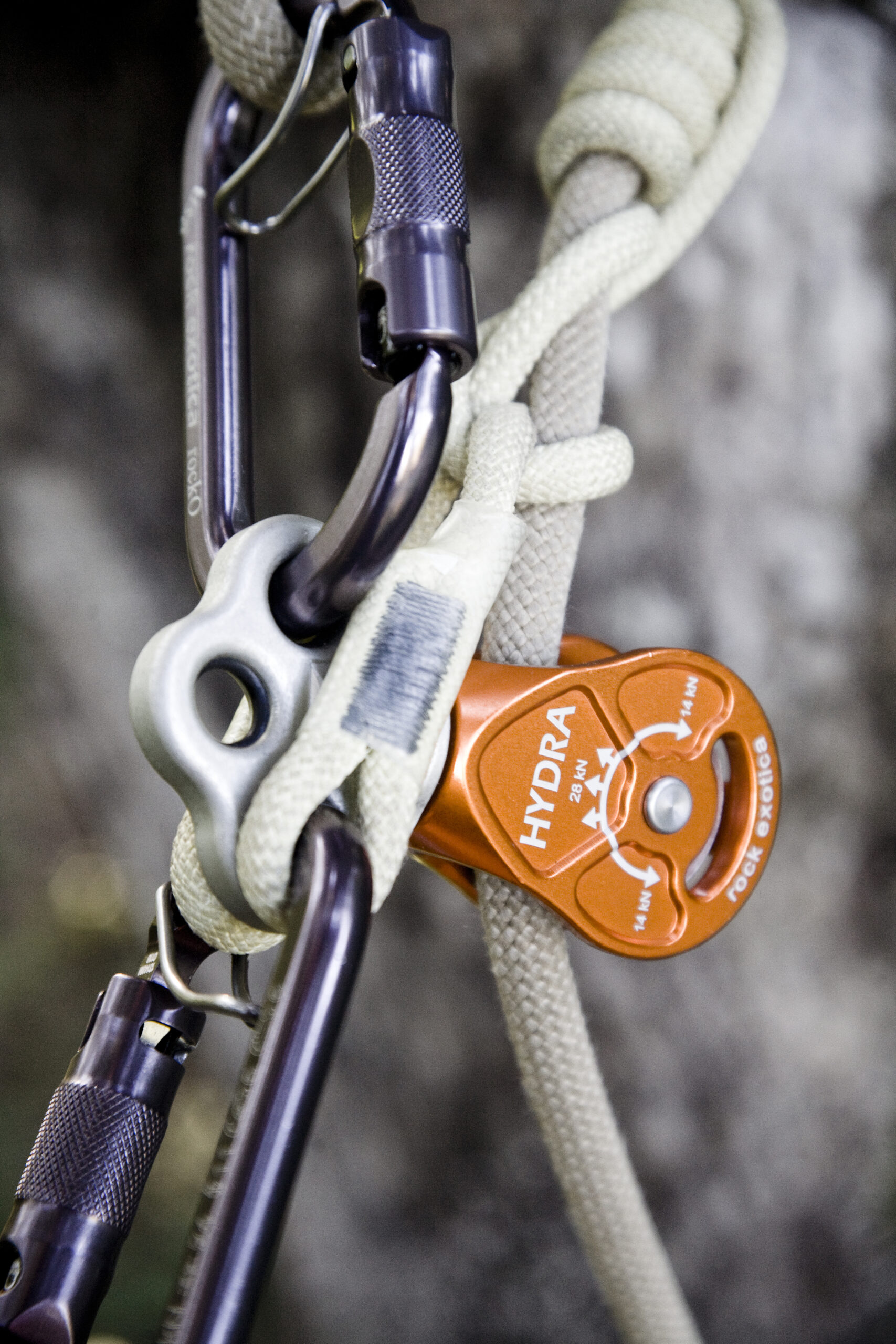

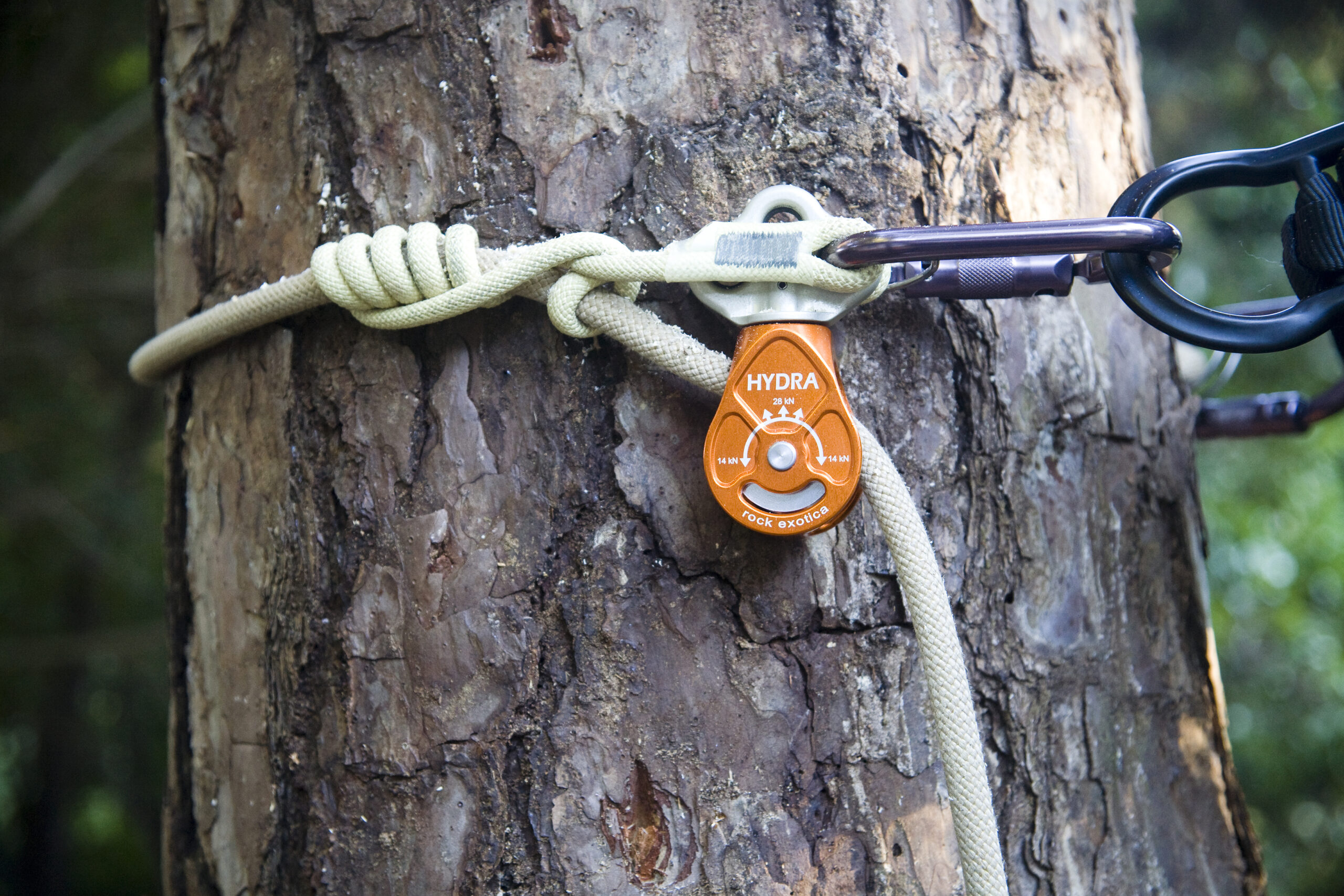

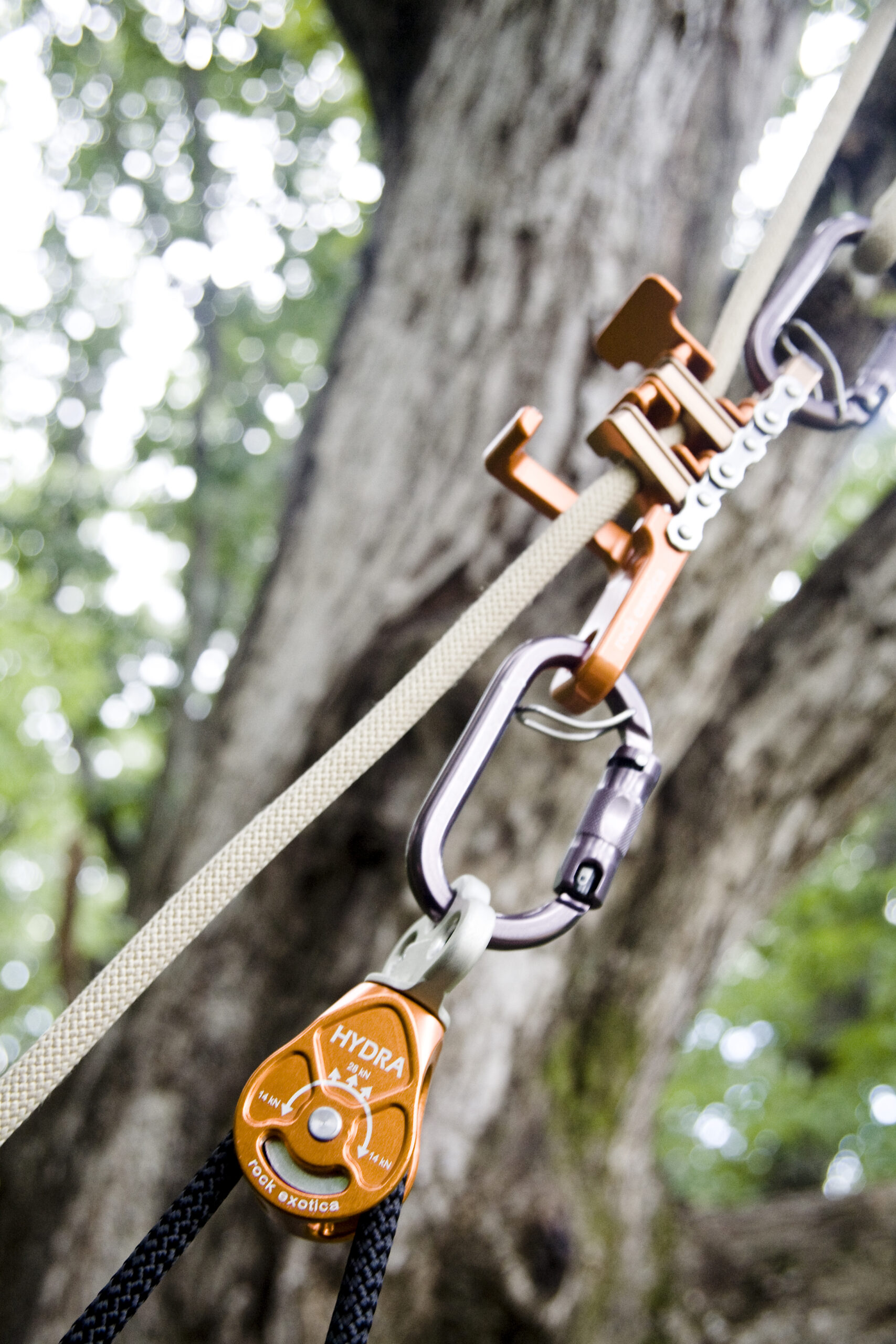

The most simple use of the HYDRA pulley is on the rope bridge of the saddle, but it can be used in a variety of advanced ways. The Hydra is used in ascent systems, lanyard systems, fliplines, or as a redirect as shown below. In any configuration, the use of the HYDRA is greatly enhanced by the flexibility to add multiple connections and rotate when needed.
Additional information
| Weight | 1.25 lbs |
|---|---|
| Dimensions | 2.5 × 4.6 in |
| Rope Size | 1/2” (13mm) |
| Sheave Dia | 2.1(53mm) |
| Strength/MBS | 28 kN |
| WLL | 5 kN |
| Height | 4.6” |
| Width | 2.5” |
| Weight | 6.7 oz (189gm) |
